Reagent Type Residual Chlorine Sensor Unit RC800D

1959년부터 수처리장에서 신뢰할 수 있는 염소 측정 지원
일본 시장의 공정분석기 1위 공급 업체*

"신뢰할 수 있는 염소 모니터링 및 염소 주입 최소화"

지속적인 자동 세척 및 유지 보수 시간의 최소화"

"원격 유지 보수를 통한 유지 보수 시간 단축"

많은 고객이 이러한 문제에 직면하고 있습니다. Yokogawa 염소 분석계는 이러한 문제를 해결합니다.

RC800D 잔류 염소 분석계는 회전하는 백금 전극을 사용하는 폴라로그래픽 시스템으로 잔류 염소 농도를 온라인으로 지속 측정합니다. 적절한 시약을 사용하여 측정을 위해 잔류 염소 (유리 염소+복합 염소)를 분리할 수 있습니다.

RC800D는 다양한 수질 상태 측정에 적합하며 회전 전극과 우수한 시약 펌프로 안정적이고 고품질의 측정을 제공합니다.

RC800D는 펌프장, 물 공급처, 학교 및 공공시설에서의 측정에 적합합니다.
*2019년 Yokogawa 설문 조사 기준

특징

비시약형 측정, 회전 전극으로 인한 유지 보수 감소

  • 유리 염소의 전류 측정 (폴라로그래픽 방법)
  • 시약 없이도 지속적으로 유리 염소 측정 가능
  • 고유한 회전 전극 방식으로 센서를 깨끗하게 유지하고 유지 보수 사이클을 단축
  • 우수한 시약 펌프로 시료 조건에 관계없이 안정적인 측정을 실현
  • 손쉬운 유지 보수 구조, 모듈화된 모터 장치 및 진단 기능을 통해 간단한 정기 유지 보수를 지원
  • 원격 세척 및 보정 기능
  • 수동 및 자동 보정, 2점 보정, 기본 감도 및 기준 감도 보정, 영점 보정 (Circuit open zero calibration)
  • 원격 범위 전환 가능

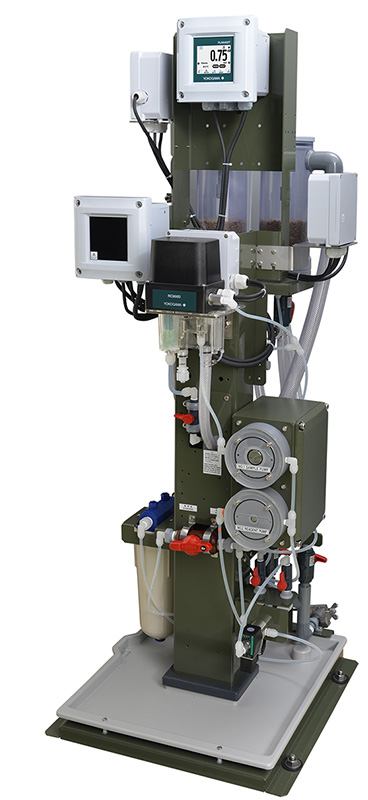

RC800D Left

RC800D display:easy to use touch screen

구조

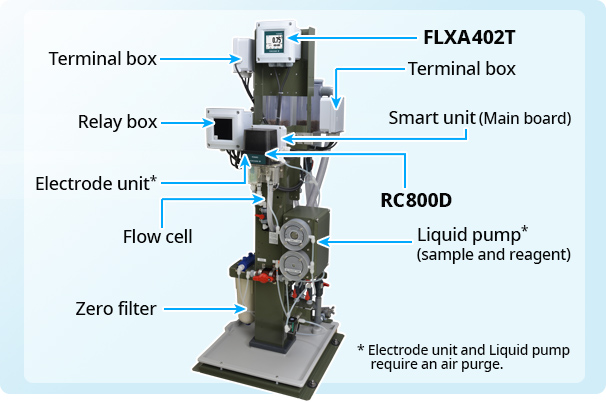

TC8000D Structure

적용 분야

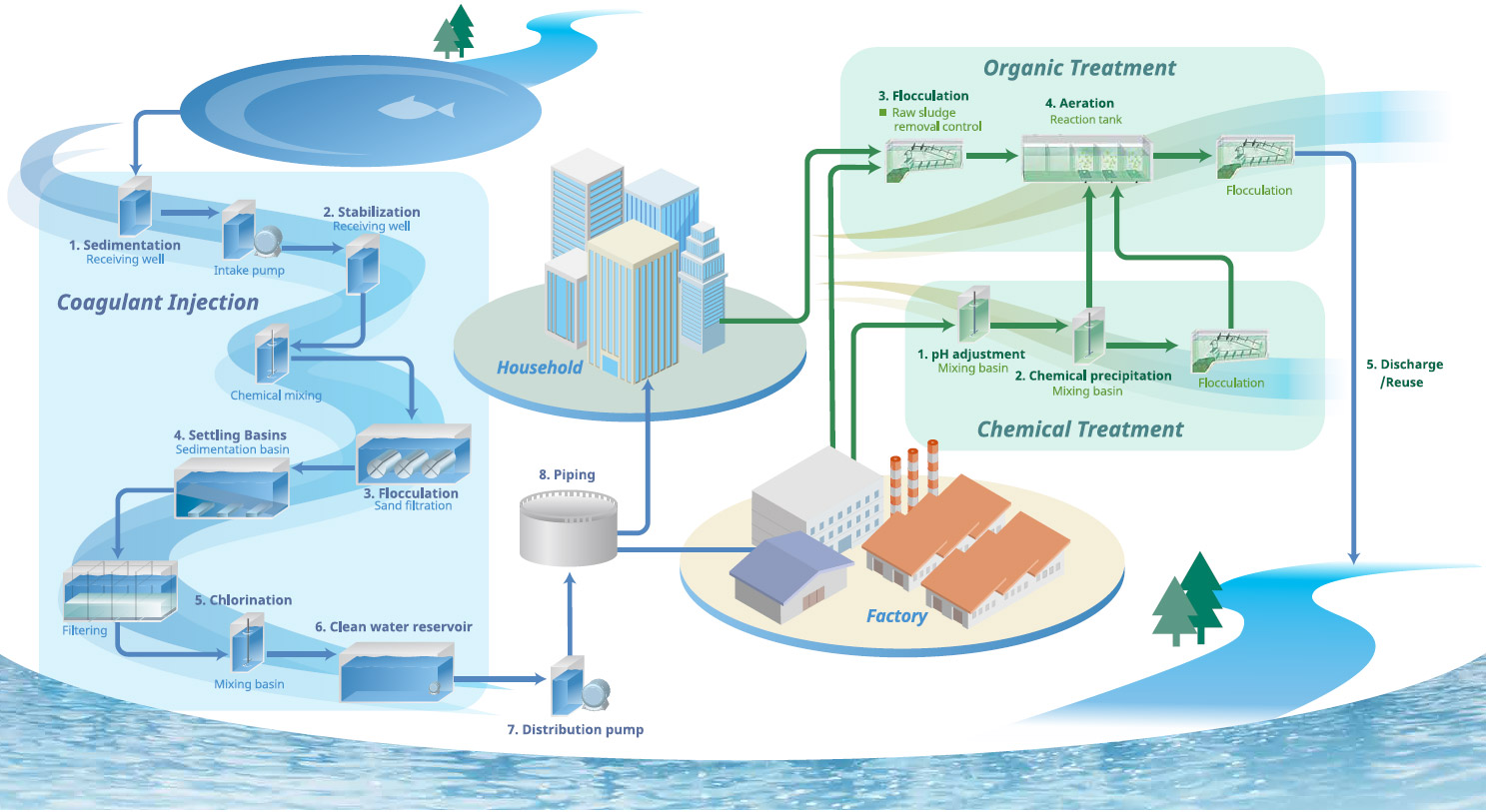

수처리의 각 공정: 저수지에서부터 가공되기까지의 프로세스와 분배 시스템

물 정화 처리

  • 안정화 (Stabilization)
  • 응집 (Flocculation)
  • 침전 (Settling Basins)
  • 염소화 (Chlorination)
  • 정수지 (Clean water reservoir)
  • 분배 펌프 (Distributing pump)
  • 분수조 및 배관 (Distribution tank & Piping)



Use case



사양

Measured Object Free chlorine or residual chlorine (total chlorine) in water
Measuring System Amperometric method (Polarographic method) using rotating electrode
Measuring Range 0-10 mg/L
Sample Conditions Temperature 0 to 50°C (Temperature compensation is effective within 0 to 40°C)
pH 3 to 9
Flow Rate 1 to 4 L/min, for pure water or municipal water application.
5 to 10 L/min, for raw water or sea water application.
10 to 20 L/min, for secondary sewage treatment application.
Pressure 20 to 500 kPa
Power Supply 100 to 240 V DC, 50/60 Hz
Digital Communication Modbus TCP/IP, Modbus RTU
Installation Indoor (Outdoor use requires protection against rain. Direct sunlight must be avoided.)



Performance

Linearity ±3% of reading or ±0.03 mg/L whichever is greater
Repeatability ±1% of reading or ±0.01 mg/L whichever is greater

자료실

FLXA 402T Multi Sensor variation 1st module TB820D FC800D FC800D FC800D FC800D TB820D TB820D 2nd module TB820D FC800D TB820D Analog pH Analog Conductivity Analog pH sensor Analo...
You don't need to do any difficult setting. The FLXA402T configurations have already optimized for selected measurement when it is shipped.
Maximum digit is three decimal points, default is 2 decimal points.
PH4, pH7 and pH9 tables complied by NIST, DIN and US standards are available.
The FLXA402T can connect a pH sensor, but an ORP sensor is not available. For ORP measuring, please select the FLXA402. (Not FLXA402T)
Static conductivity sensor is available. Inductive conductivity sensors are not available. For inductive conductivity sensor measuring, please select the FLXA402. (Not FLXA402T)
Conductivity measuring is available in the FLXA402T. For resistivity measuring, please select the FLXA402. (Not FLXA402T)
Maximum 20m is available. If you want to use more than 20m cable, please contact us.
Yes, you can save and copy the FLXA402T configurations by SD card. It realizes easy installation and replacement.
Rotation electrode will get damaged in case there is no water in the measurement cell. To avoid this situation, the FC800D and the RC800D measurement electrode rotation is automatically stopped. This function makes rotation electrode lifetime longer ...
Air purging is required for electrode unit and liquid pump by air pump or compressor air (industrial air). It is required to protect electrode from chlorine gasses which will affect the metal parts.
The FC800D and the RC800D are not suitable for outdoor installation. Strongly recommend installing inside because of pump structure. If you want to install outside, a separate rainproof cover is required and take care install place environment (no co...
Within ordered range, you can set the FLXA402T analog output range seamlessly. Cannot change ordered analyzer measurement range.
Beads become gradually smaller because of friction, and decreases cleaning efficiency. So, we recommend replacing beads once a year.
Parts No. Name Remarks QTY Recommended Replacement Interval - Primary acetic acid (CH3COOH) grade: over 99.0+% For reagent preparation -   - Sodium acetate (CH3COONa) grade: over 98.0%...
