Troebelheids- en chloormetingen in waterzuiveringsinstallaties
Sinds 1959 is Yokogawa de nr.1 procesanalyse leverancier voor de Japanse markt*
"Onze missie is het leveren van schoon water voor alle mensen."
“Menselijke gezondheid en veiligheid van water is ons uitgangspunt.”
"Vermindering van onderhoudstijd en -kosten zijn onze grootste zorg.”
Veel van onze klanten worden geconfronteerd met deze uitdagingen - het SENCOM™ 4.0 Platform lost ze op.
* Gebaseerd op een Yokogawa onderzoek in 2019
Betrouwbaar en slim waterbeheersysteem
Yokogawa ondersteunt de gehele levenscyclus van hun producten door middel van betrouwbare sensortechnologie en datagebruik. We hebben het SENCOM 4.0 platform uitgebreid met troebelheidsmeting en chloormeting, die van toegevoegde waarde blijft, gedurende de gehele levenscyclus van het product.
Yokogawa's nieuwe generatie troebelheids- en chlooranalysator voor de slimme stad
Om optimale processen mogelijk te maken en de efficiëntie van het personeel te verbeteren, heeft Yokogawa een sterke focus gelegd op ons Digital SMART Sensor SENCOM 4.0 Platform. Dit innovatieve analyzer platform biedt volledige visualisatie en verbeterde proces uptime door optimalisatie van onderhoud, verkorting van configuratietijd en vereenvoudiging van in-field onderhoud en kalibratie.
Over OpreX
OpreX is het merk voor Yokogawa's industriële automatisering (IA) en besturingsactiviteiten en staat voor uitmuntendheid in technologie en oplossingen. Het bestaat uit diverse categorieën, waarbij dit product tot de OpreX Analyzers familie hoort dat onder de OpreX Measurement categorie valt.
Details
The SENCOM SMART Sensor System

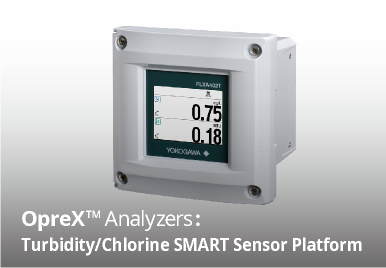

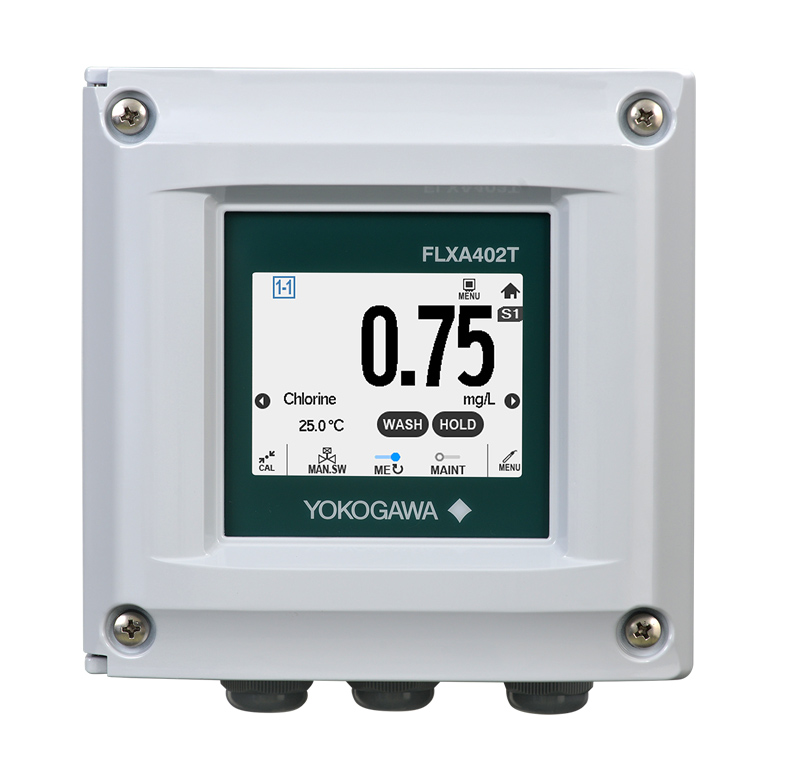

4-wire SMART Sensor Platform for Turbidity/Chlorine FLXA402T

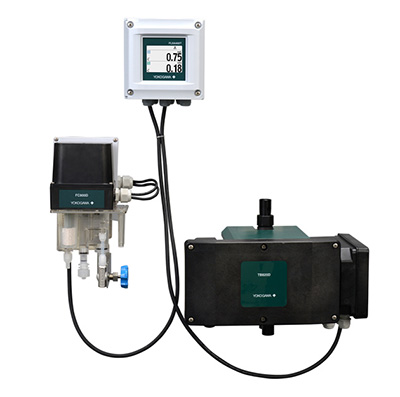

Changing technologies don't have to result in negative consequences putting throughput, quality, or compliance at risk. The advanced flexibility function features multi-input, allowing the connection of up to 2 sensors at one time.
The FLXA402T connects to new SMART sensors, the turbidity analyzers/ the chlorine analyzers, and digital allowing an easy upgrade to digital SMART sensors in the future, giving you more flexibility and optimizing your OPEX.

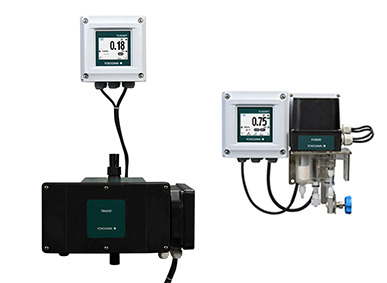

Possible sensor connection to Digital SMART SENCOM

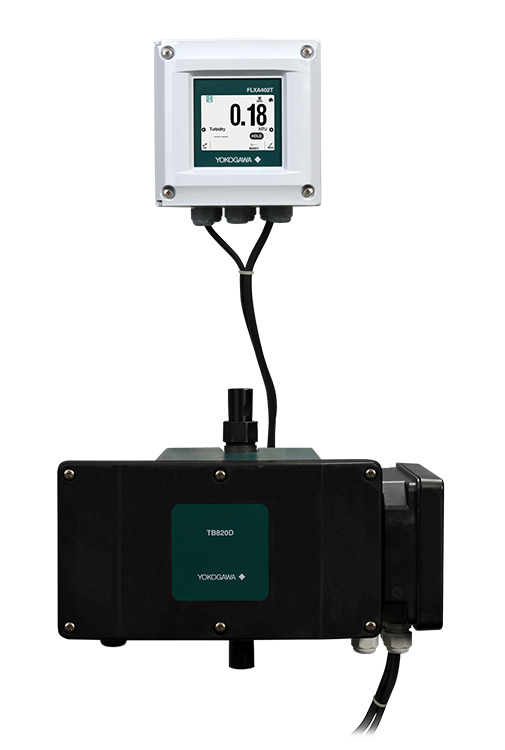

Turbidity Measurement
The biggest problem with the turbidity meter is the dirt on the sensor. Easy to clean cell structure, Automatic wash system, Long life time light source contribute to the reduction of maintenance costs.

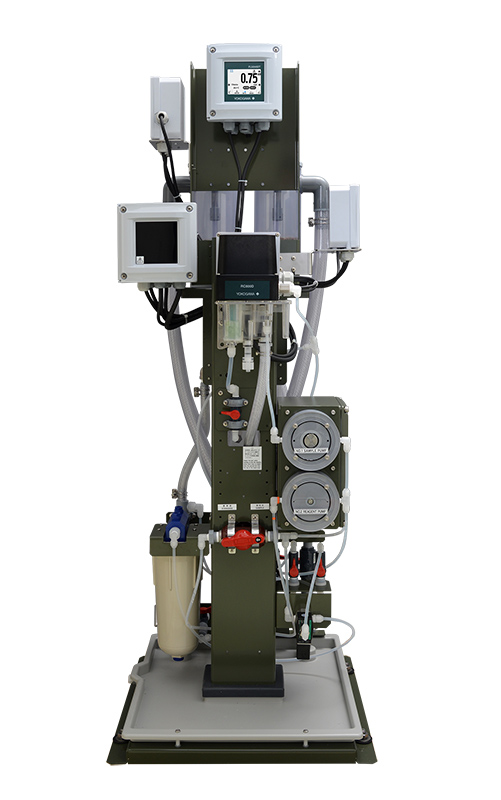

Chlorine Measurement
Environmentally friendly with the right amount of chlorine injection, minimizes remote maintenance and reduce maintenance time.

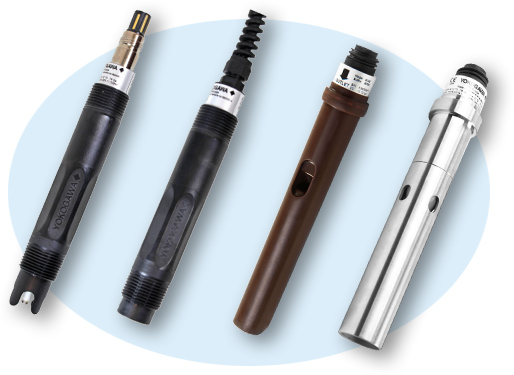

pH and Conductivity Measurement
Yokogawa’s pH and Conductivity sensors are highly reliable and very unique. You can select the most valuable sensor.
Analyzer specialized for Tap water treatment process

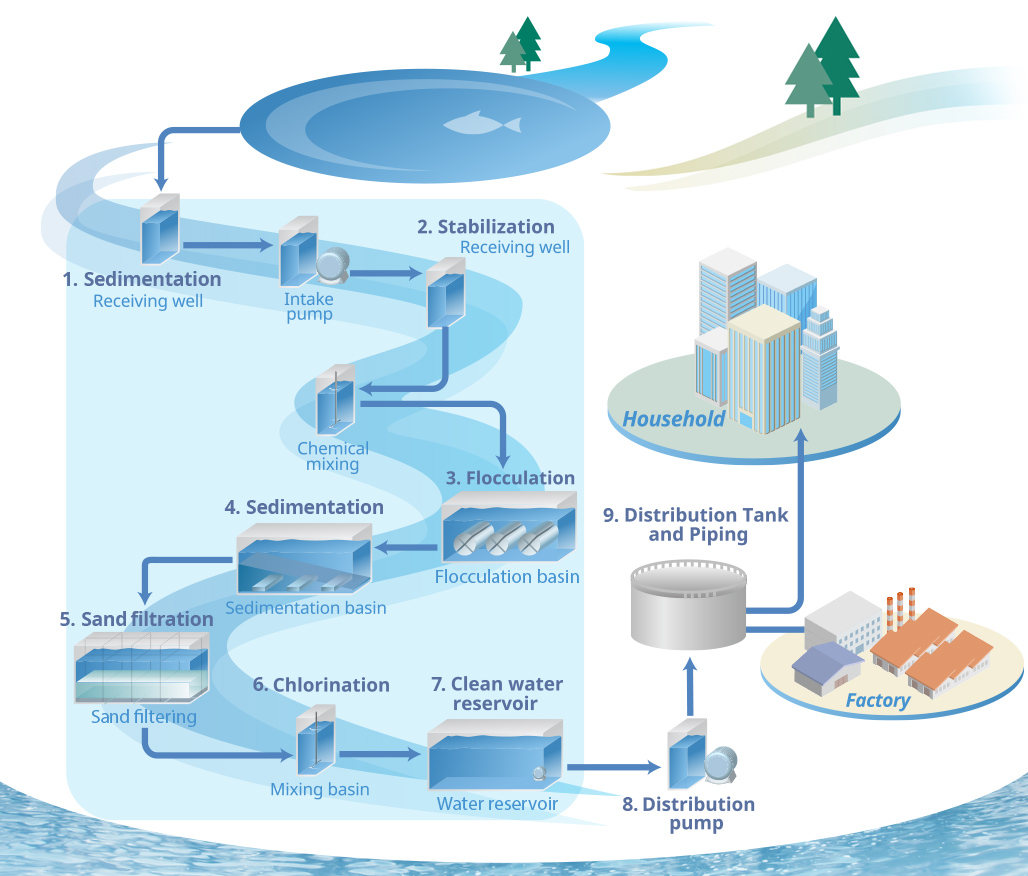

Tap Water treatment process
1. Sedimentation
Receiving well
Raw water contains sand, pebbles and soil. They are removed by sedimentation in the middle of a gentle stream.
-Monitor Turbidity, pH and SC
2. Stabilization
Receiving well
The well adjust to keep the water level constant and pressure for the next process.
-Monitor Turbidity, pH and Chlorine
3. Flocculation
Flocculation basin
The raw water with the coagulant is slowly agitated ."Flock" is a group of fine sand and soil and gathered together by the action of a coagulant. By creating flocs, particles such as sand and soil become relatively large and easily sink.
-Monitor Turbidity and pH
4. Sedimentation
Sedimentation basin
Flocks are sunk in a quiet stream, removing sand and soil ( flocs) from the water
-Monitor Turbidity, pH
5. Sand filtration
Sand filtering
A layer of sand or gravel filters the water and removes fine particles
-Monitor Free chlorine, Turbidity
6. Chlorination
Mixing basin
Added chlorine for disinfection
-Monitor Free chlorine, Turbidity and pH
7. Clean water reservoir
Water reservoir
Store clean water in the distribution reservoir and adjust the water amount for distribution
-Monitor Turbidity , Free chlorine and pH
8. Distribution pump
Send the water from the distribution reservoir to the water supply station. Water is sent to each distribution station / reservoir using water pipes and supplied to each household or facility.
-Monitor Turbidity, Free chlorine and pH
9. Distribution Tank and Piping
Distribution reservoir
Keep enough water for use
-Monitor Turbidity, Free chlorine and pH
Middelen
Downloads
Gebruikershandleidingen
- FLXA402T Liquid Analyzer for Turbidity and Chlorine Start-up and Safety Precautions (1.7 MB)
- FLXA402T Liquid Analyzer for Turbidity and Chlorine Installation and Wiring (Introduction and General Description) (3.9 MB)
- TB820D Right Angle Scattered Light Turbidity Detector Start-up and Safety Precautions (993 KB)
- FC800D Non-reagent Type Free Available Chlorine Sensor Unit (6.5 MB)
- FLXA402T Liquid Analyzer for Turbidity and Chlorine Operation of Converter (4.2 MB)
- FLXA402T Liquid Analyzer for Turbidity and Chlorine Operation of pH (1.3 MB)
- FLXA402T Liquid Analyzer for Turbidity and Chlorine Operation of SC (1.2 MB)
- FLXA402T Setting Table (53 KB)
- TB820D Right Angle Scattered Light Turbidity Detector (6.0 MB)
Algemene specificaties
Technische informatie
Tekeningen
Videos
For more details, visit "www.yokogawa.com/CL-TB/"
Smart Water Management System providing clean and safe water.
Yokogawa provides total water management system including Turbidity and Free Chlorine measurement.
For more details, visit "www.yokogawa.com/CL-TB/"
