For a data logger to monitor, test, and analyze asset health and performance, it records sensor data over long periods of time. Yokogawa data loggers surpass the scalability of standard data loggers by utilizing a proprietary block architecture that enables you to easily and flexibly combine various modules, and add expansion modules for up to 450 ch of input (GX/GP). They offer superior savings on rewiring labor and maintenance because you can add or remove modules even after installation.
>> Module groups corresponding for various Applications/Measurement targets.
Our data loggers are recognized in the industry for their outstanding measurement accuracy, reliability, noise resistance, and ease-of-use. They support US FDA 21 CFR Part11 (regulations on electronic records and electronic signatures), EU-GMP Annex11, and other associated guidelines for data management as required for development and manufacture in the pharmaceutical and foodstuff industries.
Data Loggers also support data integrity in accordance with ALCOA+. In addition, AMS2750E which is required for heat treatment in the aerospace industry is supported.
- Connection communication function : 920MHz wireless connection, Modbus/TCP, Modbus/RTU, EtherNet/IP, SLMP, OPC-UA, Bluetooth (GM10)
- Network function : HTTP, FTP, SNTP, DHCP, E-mail (SMTP)

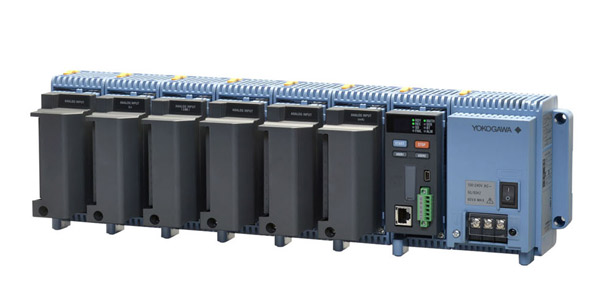

SMARTDAC+TM GM10 data logger has a modular architecture that can acquire necessary data. By supporting not only I/O but also many communication protocols such as 920MHz wireless, Modbus and so on. Monitor and setting changes are available through Bluetooth. Supporting FDA 21 CFR Part11 and AMS2750E/NADCAP.
Touch Screen Paperless Recorder GX10/GX20
The SMARTDAC+TM GX10/GX20 is a panel mount paperless recorder with a modular architecture on the back panel and has a data logging function to acquire the required data. By supporting not only I/O but also many communication protocols, you can connect to various devices. AI function as standard. Supporting FDA 21 CFR Part11 and AMS2750E/NADCAP.

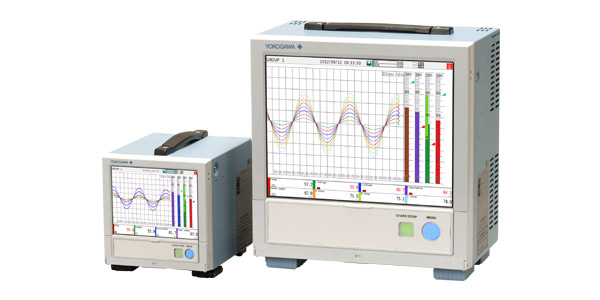

Touch Screen GP10/GP20
The SMARTDAC+TM GP10/GP20 is a portable paperless recorder with a modular architecture on the back panel and has a data logging function to acquire the required data. By supporting not only I/O but also many communication protocols, you can connect to various devices. AI function as standard. Supporting FDA 21 CFR Part11 and AMS2750E/NADCAP.
Data Loggers support various applications and measurements up to 450 channels (GX/GP).
The fully modular I/O design allows you to build the system with the channels you need today, and expand the unit's capability any time in the future by purchasing and installing additional modules.
|Analog input module||DC voltage, DC current, thermocouple, RTD, contact||GX90XA||GM10, GX, GP|
|High withstand voltage AI module: Max. common mode voltage 600V||GX90XA-10-V1|
|High Speed AI||GX90XA-04-H0|
|4-wire RTD, 4-wire resistance (solid state relay scanner type)||GX90XA-06-R1|
|Analog output module||Current output||GX90YA|
|Digital input module||Remote control input or operation recording||GX90XD|
|Digital output module||Alarm output||GX90YD|
|Digital input/output module||Remote control input or operation recording/alarm output||GX90WD|
|Pulse intput module||Pulse signal data acquisition, integral count||GX90XP|
|PID control module||PID module||GX90UT|
|Wireless input unit for SMART 920||Wireless, temperature, humidity||GX70SM＊|
* Used in combination with the main unit.
Caustic soda and hydrochloric acid, produced in electrolyzer plants, are fundamental materials used in varieties of industries; chemicals, pharmaceuticals, petrol-chemicals, pulp and papers, etc. Profit is the result of the effective production with minimized running / maintenance cost. Proper control of the process brings you stabilized quality of products with the vast operational profit.
A leading handler of specialty fluids was looking for a solution to manage various tank farms at many remote locations. The first application was to monitor level and temperature of asphalt storage tanks while performing light control duties including blending. The solution required data-logging, discrete control and a local operator interface for alarm monitoring and blending batches of asphalt.
A major soft drink manufacturer dictates strict quality control standards to companies that manufacture vending machines, coolers, and dispensing equipment that handle the branded products of the company. The company operates an engineering lab at corporate headquarters in Atlanta where numerous environmental rooms can simulate any climate condition where a vending machine or cooler may operate.
A leading manufacturer of fire protection and safety equipment runs multiple tests in a simulated environment to determine if their products will perform to specifications. The existing test procedure was a manual process that required data and reports to be completed by an operator using a combination of a notepad and a spreadsheet.
In the transportation industry, vehicle manufacturers perform a wide range of performance and durability tests on the complex systems that comprise a modern vehicle. Test parameters cover an equally wide range and include an extensive amount of temperature, pressure, flow, vibration, speed and electrical parameter measurements.
A leading manufacturer of high shear fluid processors was looking for a solution to provide secure, stable pressure readings. The speed of the process typically demands a very fast data-logger with enough intelligence to filter out noise while providing accurate results.
A manufacturer of lime using an Allen-Bradley Series 5 PLC wanted local data viewing and network connectivity. The PLC was wired directly to a rotary kiln and measured kiln temperature, pressure, rotary speed and material feed rate.
A mineral processing company began a project to replace an aging SCADA system that monitors remote process flow data. The existing system is a large, multi-node installation based on standalone RTUs with radio communications to a central processor. Distance between locations is measured in miles.
A Midwest customer is a leading salt manufacturer. They produce a variety of salt products including table salt, pool salt and industrial grade salt. This customer needed to bring data from existing Yokogawa DAQSTATIONS into their Delta V system.
A large OEM parts supplier to the automotive industry has been a Yokogawa customer for several years. In the past, Yokogawa sold the customer field instruments and data logging equipment for measuring and recording environmental conditions within their facility.
The development of difficult to recover unconventional energy resources, is progressing. Figure 1 shows an example of how unconventional heavy oil is extracted from tar sand by reducing its viscosity with steam. To ensure efficient mining, changes in the underground temperature distribution will need to be monitored.
