Wind Power

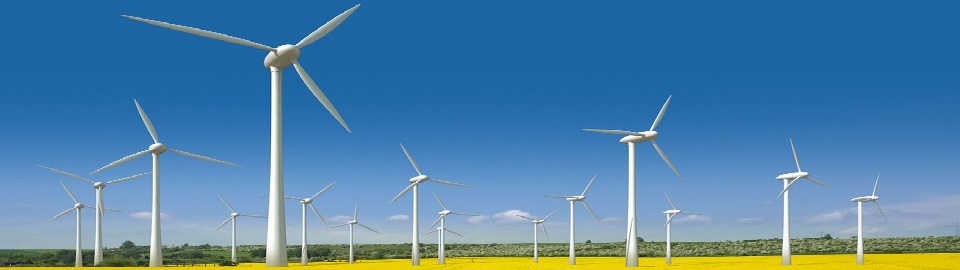

Wind is an inexhaustible natural energy source that humans have used in one way or another for millennia. A great many wind farms with large numbers of wind turbines have been constructed in recent years around the world, and offshore wind farms are now becoming popular, particularly in Europe. Yokogawa provides a variety of measurement and control technologies that help to ensure the stable power supply by making operations more efficient and by enabling remote and centralized monitoring of multiple wind power generation systems.

Les défis

Customer Challenge

Maintaining a stable supply of power to the grid even when varying wind conditions cause fluctuations in the amount of generated power

Solution

Yokogawa supplies an integrated power monitoring and control system and a battery control system that tracks how much power is being generated and manages the charging and discharging of the battery system to ensure a stable supply of power to the grid.

Enabling Technologies



Renewable Power Plant Controller

Renewable Power Plant Controller

Guarantee the delivery of a fixed amount of energy by leveraging intermittent resources and virtually eliminating energy waste.






STARDOM Network-based Control System

STARDOM Network-based Control System

STARDOM’s autonomous controllers are highly durable and provide support for CANopen, Modbus, Profibus, and other network protocols.


FA-M3 Range-free Multi-controller

FA-M3 Range-free Multi-controller

A high-performance programmable logic controller (PLC) that combines very high processing speeds with stable control features. It can be utilized to monitor and control the operation of individual wind turbines.


Collaborative Information Server (CI Server)

Yokogawa CI Server allows immediate improvement to production efficiency through digital transformation and reduction of operational maintenance whilst building a digital transformation framework.


WT5000 Precision Power Analyzer

 WT5000 precision Power Analyzer

With up to seven inputs, a single unit of the WT5000 Precision Power Analyzer measures each component in a power conditioning system (PCS) including the converter, controller, and inverter.


DL950 ScopeCorder

DL950 ScopeCorder

The DL950 ScopeCorder is a modular waveform recording instrument that can simultaneously measure voltage, current, strain, acceleration, and other phenomena.



Customer Challenge

Minimizing the likelihood of having to shut down a wind turbine because of a controller failure

Solution

Yokogawa provides proven, highly reliable controllers that ensure maximum uptime for wind turbine facilities.

Enabling Technologies

FA-M3 Range-free Multi-controller

FA-M3 Range-free Multi-controller

A high-performance programmable logic controller (PLC) that combines very high processing speeds with stable control features. It can be utilized to monitor and control the operation of individual wind turbines.


Renewable Power Plant Controller

Renewable Power Plant Controller

High speed, precise, intelligent control of voltage, frequency, and real and reactive power. Minimizes distortion throughout local distribution systems between DERs and the POI.



Customer Challenge

Monitoring operations at multiple wind farms that may be located all over a country

Solution

Yokogawa’s STARDOM network-based control system and CI Server support the integrated monitoring from a central location of operations at wind farms that may be located all over a country and which may utilize a variety of control and monitoring systems.

Enabling Technologies

Collaborative Information Server (CI Server)

Yokogawa CI Server allows immediate improvement to production efficiency through digital transformation and reduction of operational maintenance whilst building a digital transformation framework.



Customer Challenge

Using battery energy storage system (BESS) in order to ensure the stable supply of power to the grid even when there is a dip in power generation

Solution

Yokogawa’s network-based control system with its redundant SCADA helps customer’s stable and profit-maximized operation with following key functions:

• Operation planning and monitoring: Display required information of every BESS integrated in the system in remote control center by multi-screen, and let operators make the setting of schedule for constant power or load following for each BESS.
• Control and operations: Distributing the information to BESS for stable operations such as reference value for demand-power- level, reference-power (active/reactive) from the distribution management center and schedule warning alert.
• Battery monitoring: The charge-discharge rate, charge status and operation status of each battery are displayed.

Enabling Technologies

Renewable Power Plant Controller

Renewable Power Plant Controller

Guarantee the delivery of a fixed amount of energy by leveraging intermittent resources and virtually eliminating energy waste. Stabilize the power supply by coordinating and dispatching generation and storage assets in real time to compensate for sudden load changes.



Details

Wind Power Generation Process

A wind power generation system, or wind turbine, is comprised of components such as an electrical generator, power converter, blades, hub, nacelle, and tower. It converts the kinetic energy of wind to mechanical energy in order to drive the electrical generator. A battery storage system is sometimes used at wind farms to ensure the stable output of power to the grid.

Control and Measurement Technologies

Wind Power Generation Process

Wind Farm Systems and Instrumentation
  • Wind turbine condition monitoring
  • Planning (operation and power generation)
  • Results management
  • Remote monitoring
Wind Turbine Operation and Monitoring Generator and Power Converter Operation and Monitoring Grid Interconnection
  • Wind direction and velocity monitoring
  • Pitch control
  • Yaw control
  • Individual generator output monitoring
  • Power monitoring and control
  • Monitoring of storage battery charge and discharge
  • Charge and discharge monitoring and control
  • Voltage and frequency monitoring
  • Interconnection transformer operation and monitoring

Ressources

Vue générale:
  • The STARDOM network-based control system and FA-M3 range-free controllers play an important role in smoothing out the supply of this power to the grid
  • STARDOM and FA-M3 ensure smooth supply of power to grid by wind farm equipped with large-capacity NAS batteries
Vue générale:
  • Yokogawa participated in Japan's largest wind power plant construction project.
  • The comprehensive solution including SCADA system provides safe and secure remote operation.
