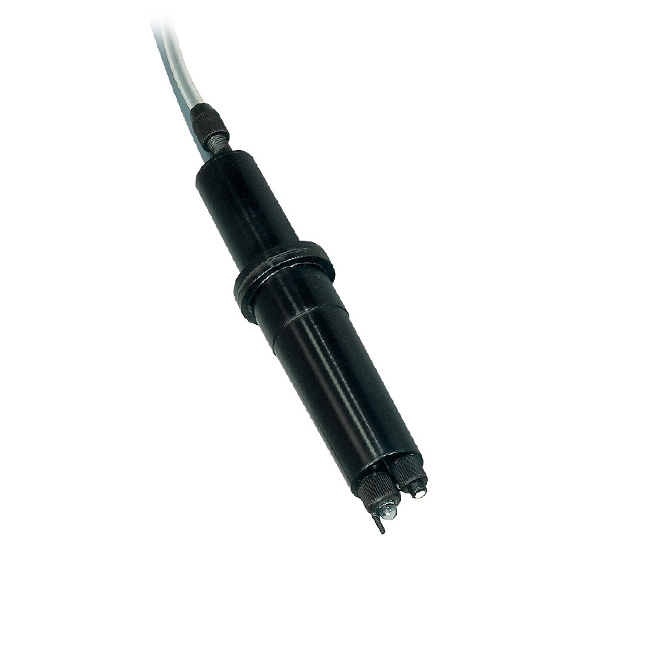

High-Reliability pH/ORP Sensor with Easily Replaceable Glass Electrode and Liquid Junction
This process pH/ORP sensor features a reinforced PPS resin body that provides excellent corrosion resistance, heat resistance, and mechanical strength.
Developed based on many years of proven performance and field experience, it delivers stable and reliable measurement across a wide variety of applications, including quality control in manufacturing processes, medium-sized wastewater treatment plants, and various pH/ORP control systems.

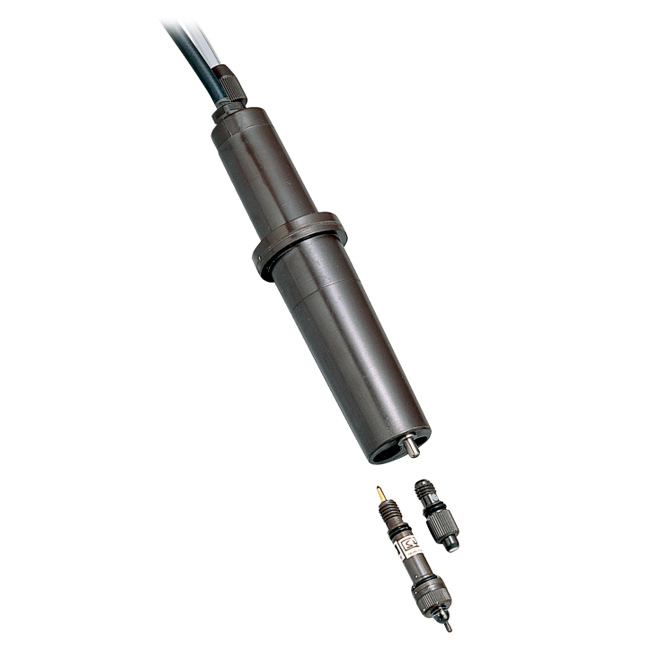

The glass electrode and liquid junction can be replaced individually with ease, offering excellent maintainability and a highly cost-effective solution.
Enhanced pH Calibration Convenience

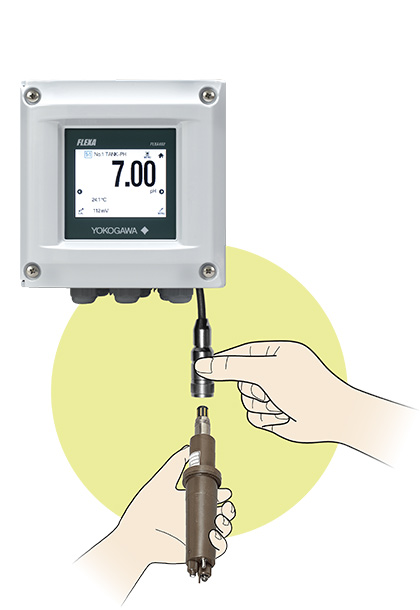

The added detachable-cable design allows easy sensor removal for calibration, offering greater flexibility to suit different maintenance styles and improving both serviceability and work efficiency.
Sensors Selectable to Match Your Maintenance Style
- Improve the Efficiency of Routine Calibration and Maintenance NEW!
With the detachable-cable sensor, the sensor can be easily removed from the cable. By simply replacing the sensor with a pre-calibrated one on site and entering the setting data into the Analyzer, on-site cleaning and calibration are no longer required each time. This helps reduce the maintenance workload and lowers operational burden. - Quick Start-up at Installation for Improved Installation Efficiency NEW!
pH sensors with pH calibration setting data attached eliminate the need for initial calibration. Calibration work during on-site installation can be omitted, enabling quick and easy start-up. - Supports an Open System Architecture Through Digitalization
By combining pH and ORP sensor equipped with a built-in ID chip capable of storing calibration data with SENCOM Smart Adapter SA11, it becomes a digital sensor. Yokogawa provides open environment with higher model.
* Refer to "SENCOM Smart Adapter SA11" for more details.
Details
Key Benefits
- Suitable for a Wide Range of Applications
The sensor body is made of reinforced PPS engineering plastic, offering corrosion and heat resistance comparable to fluoropolymer (PTFE), while providing excellent mechanical strength. This robust design enables reliable use across a wide variety of applications. - Cost-effective, Long-term Use with Environmentally Friendly Design
Only the electrode components can be replaced, allowing long-term and economical operation while reducing environmental impact.
Replaceable parts include the glass electrode for pH sensors, the platinum (or gold) electrode for ORP sensors, and the liquid junction. There is no need to discard and replace the entire sensor body as long as it remains usable. - Reduced Maintenance Workload Through Flexible Operation Styles
Users can select the optimal configuration to suit their operational requirements, including detachable cables, sensors supplied with factory calibration setting data, and digital compatibility through combination with the SENCOM Smart Adapter SA11.By reducing calibration time, the solution contributes to a significant reduction in maintenance workload.
1. pH Sensors
1-1. KCl Refillable Type Electrode PH8ERP
| Measured object | Hydrogen ion concentration (pH) in aqueous solution |
| Measurement principle | Glass electrode method |
| Measuring range | pH 2 to 12 |
| Measuring temperature | -5 to 80℃ |
| Measuring pressure | Atmospheric pressure to 50 kPa |
| Temperature compensation sensor | Pt1000 |
| Weight | Approx. 0.4kg |
| Digital communication function | Support SENCOM4.0 (Variopin connector and SA11 adapter connected) |
1-2. KCl Filling Type Electrode PH8EFP
| Measured object | Hydrogen ion concentration (pH) in aqueous solution |
| Measurement principle | Glass electrode method |
| Measuring range | pH 0 to 14 |
| Measuring temperature | -5 to 105℃ |
| Measuring pressure | Atmospheric pressure to 10 kPa (General purpose or big volume tank 500 ml) Atmospheric pressure to 500 kPa (Medium pressure) |
| Temperature compensation sensor | Pt1000 |
| Weight | Approx. 0.4 kg |
| Digital communication function | Support SENCOM4.0 (Variopin connector and SA11 adapter connected) |
2. ORP Sensors
2-1. KCl Refillable Type Electrode OR8ERG
| Measured object | Oxidation-Reduction potential in aqueous solution |
| Measurement principle | Metal electrode method |
| Measuring range | -1500 to 1500 mV |
| Measuring temperature | -5 to 80℃ |
| Measuring pressure | Atmospheric pressure to 50 kPa |
| Weight | Approx. 0.4 kg |
2-2. KCl Filling Type Electrode OR8EFG
| Measured object | Oxidation-Reduction potential in aqueous solution |
| Measurement principle | Metal electrode method |
| Measuring range | -1500 to 1500 mV |
| Measuring temperature | -5 to 105℃ |
| Measuring pressure | Atmospheric pressure to 10 kPa (General purpose or big volume tank 500 ml) Atmospheric pressure to 500 kPa (Medium pressure) |
| Weight | Approx. 0.4kg |
Resources
Cyanide-bearing wastewater from mining and electroplating facilities and certain types of chemical plants is toxic and must be treated by oxidation with chlorine or chloride to bring the cyanide concentration within regulatory limits.
Industry:Electrical and Electronics
Optimizing four key factors will decrease pH sensor costs and optimize process control and overall plant efficiency.
Downloads
Brochures
- Product Solution Catalog (5.6 MB)
Instruction Manuals
- OR8EFG KCl Filling type ORP Sensor (824 KB)
- PH8ERP KCl Refillable type pH Sensor (848 KB)
- PH8EFP KCl Filling type pH Sensor (945 KB)
- OR8ERG KCl Refillable type ORP Sensor (730 KB)
- PH8E*P, OR8E*G, WU41, SC8SG, SC210G, SC4AJ, ISC40GJ, SA405 etc. Protection of Environment (Use in China) (137 KB)
- ST401G Sampling System (5.4 MB)
- WTB10 Protection of Environment (Use in China) (172 KB)
- PH8HF, PH8HFF Flow-Through Type Holder (1.3 MB)
- PH8AX Accessory Set for pH Meter (590 KB)
- OR8AX Accessory Set for ORP Meter (483 KB)
General Specifications
- pH and ORP Sensors (1.8 MB)
- Chemical Cleaning pH Measuring System (971 KB)
- Sensor Holders (3.2 MB)
Technical Information
Drawings
- PH8ECP KCl Filling Type pH Sensor for Electrolysis Plant (for maintenance) (233 KB)
- Terminal Box OR8TBG (41 KB)
- KCl Refillable Type ORP Sensor OR8ERG (221 KB)
- OR8EFG KCl Filling Type ORP Sensor (Spare electrode) (203 KB)
- OR8EFG KCl Filling Type ORP Sensor (279 KB)
- pH Sensor for Pure Water (for maintenance) PH8EHP-##-TN-TN1-N-#*A (207 KB)
- KCl Refillable Type pH Sensor PH8ERP-##-##-N-#*A (228 KB)
- KCl Filling Type pH Sensor PH8EFP-##-##-TT#-N-#*A (245 KB)
- KCl Filling Type pH Sensor (Spare sensor) PH8EFP-##-##-TN#-N-#*A (216 KB)
