CENTUM VP Overview and Latest Release Information

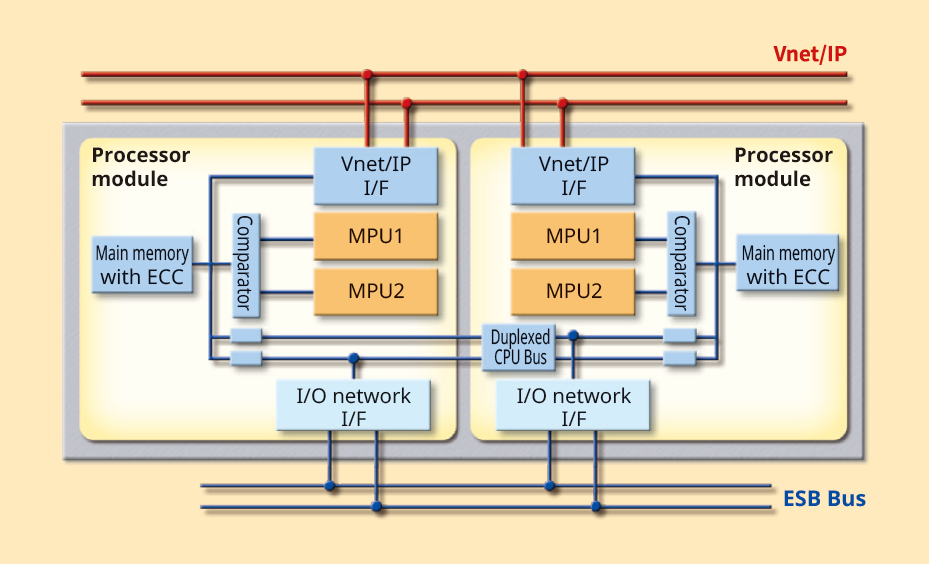

Yokogawa released its CENTUM distributed control system (DCS) in 1975, a world first. CENTUM VP is the ninth generation in the CENTUM series. Known for their rugged performance, CENTUM systems set high standards for engineering and technology excellence while ensuring backwards compatibility with previous system versions and support of the latest technology applications. Knowledge-driven engineering lies at the heart of CENTUM, a Yokogawa flagship product that has been proudly serving the process industry, over the past 45+ years.
Yokogawa Releases CENTUM VP R6.10 (November 2022)
- Expands the functionality of CCC Inside™ for Yokogawa CENTUM VP
With this release, it is now possible for CCC control algorithms running on CENTUM VP to control steam turbines for compressor drive. This allows whole compressor system which contains steam turbine control to be monitored and controlled from the same human-machine interface (HMI) used for conventional process control.
- Optimization through the integrated control of multiple compressor trains
Yokogawa has enabled the control of multiple compressor trains, of which many can be found in customers’ plants, by working with CCC to develop a function block for the integrated control of multiple compressor trains, and has realized overall optimized control through the distribution of the compressor load.
OpreX is the comprehensive brand for Yokogawa’s industrial automation (IA) and control business. The OpreX name stands for excellence in the technologies and solutions that Yokogawa cultivates through the co-creation of value with its customers, and encompasses the entire range of Yokogawa’s IA products, services, and solutions. This brand comprises the following five categories: OpreX Transformation, OpreX Control, OpreX Measurement, OpreX Execution, and OpreX Lifecycle. One of the product groups that make up the OpreX Control category is the OpreX Control and Safety System family, which includes the CENTUM VP DCS. With its various OpreX Control solutions, Yokogawa is able to quickly effect changes for its customers that lead to a transformation in such areas as management and operations, and provides highly reliable control technology that ensures high efficiency, high quality, and safe and stable plant operations.
With the OpreX brand, Yokogawa will deliver integrated solutions that address specific needs and support its customers in their efforts to transform and grow their businesses.
FIO (Field network I/O)
FIO (Field network I/O) is a series of low-cost I/O modules which have been developed to improve packaging density. The large available range of modules enables you to configure your system to match the requirements for process signals, and to provide for different levels of isolation.
Non-isolation, isolation (all channels are collectively isolated), and isolation (each channel is individually isolated)
Pressure clamp (Weidmuller), dedicated terminal boards, and MIL cables
Class G3 corrosive gas and a wide range of operating temperatures
Hazardous area classification
Type N and non-incendive protection provided as standard. I/O modules with a built-in intrinsic safety barrier available.
Yokogawa's virtualization separates system software operations from physical hardware dependencies, allows software reusability to optimally commission system hardware.
Virtualization platform enables a single server to perform the work of multiple virtual computers, thus reducing the number of computers required to configure a control system. With this platform, both the hardware and software required to build a virtual environment are provided.
By means of this virtualized server environment, it is possible to separately update and make modifications to hardware and software as required.
This translates to customer's business centric benefits like smooth migration to new physical hardware with reduced downtime, shorter migration process and system tests time.
From maintenance point of view, segregation of hardware and software maintainability are also the significant advantages.
CENTUM VP achieves the Operational Excellence that is the focus of Yokogawa's Production Excellence, Safety Excellence and Asset Excellence initiatives. It offers integrated viewing and data handling functions.
For example, alarms from the ProSafe-RS Safety Instrumented System and Plant Resource Manager, Yokogawa's Asset Management product, can be seen and handled seamlessly in the Human Interface Station (HIS). All plant process data and device data are handled by CENTUM VP.
Easy to operate with clear visibility
Yokogawa offers an intuitive and easy-to-understand HMI environment for plant operation and monitoring, which is the result of vast experience with CENTUM systems in operation. Flexibility in displaying operation windows and monitors helps in adapting to various aspects of operation needs.
CENTUM VP provides easy-to understand graphics based on the ergonomics and knowledge engineering. For instance, data displays are provided with high visibility that enables intuitive awareness of the situation. The use of colors considers the best contrast and environments of the central control room and the configuration of the displays integrates the knowhow of experienced operators. With all these functions, CENTUM VP enables operators to make quick and accurate decisions during operations and contributes to improve operation efficiency.
System message banner
Continuously displays the latest alarm messages, keeping operators up to date on process conditions.
Contains navigation tools for the convenience of operators, frequently-used icons can be grouped in a My Favorites folder.
Lists the previous operational displays. Operators can quickly call up previously-used graphics windows.
Unified Alarms and Conditions Server (UACS) is Yokogawa's new management alarm system that ensures the safe and secure operation helping compliance with ISA18.2-2016. Based on standard rules, the UACS organizes and consolidates alarms that are issued by plant devices, helping operators to focus on those alarms that are judged to be crucially important. This lets operators to concentrate on monitoring processes and improving overall plant efficiency.
AOG (Advanced Operator Graphics) Solution
The AOG solution emphasizes ergonomic design and seeks, through improved color selection, layout, and visual function, to improve operators situational awareness. A team of Yokogawa engineers visited many plants to conduct a detailed analysis, review the tasks carried out by operators, and learn about the plant's operations. In accordance with general principles on industrial design and human engineering, Yokogawa then redesigned the GUIs for the HMI displays to reduce operator errors, make their work easier to perform, and reduce physical stress.
By using the Trend Recording
By using the Trend Recording function, process data such as temperature, pressure and flow rate coming into the Control Station are gathered by the HIS, and the time-series changes in the process data are displayed in a graph (trend graph).
The HIS trend recording function acquires a variety of trend data types, suitable for a continuous process plant and a batch process plant. The continuous-type data acquisition is suitable for recording and monitoring data for a long period of time. The batch-type data acquisition starts and stops acquiring data according to the commands received from operators. Comparison between the actual data and a reference pattern is also available for the batch-type.
A unique USB keyboard is available for CENTUM VP option. The 64 function keys and the numeric keypad can be used by operators to call up graphics by pressing a single key.
Switching between frame tabs can be done by pressing the container window key. The keyboard has two built-in speakers and the key pitch complies with IEC 9241-11.
A touch sensor highlights the selected operating instrument on the screen to prevent unintentional input errors.
A single-loop operation keyboard and an 8-loop simultaneous operation are available.
Yokogawa paves way for a new engineering paradigm for the next-generation. It is not uncommon for a project to experience backsliding and signiﬁcant rework, all of which affects the TCO (Total Cost of Ownership). Yokogawa's engineering prevents these inefﬁciencies and ensures our customers reap all these beneﬁts throughout a plant’s lifecycle.
Yokogawa provides smart engineering thanks to three innovative products.
- Automation Design Suite, Yokogawa's engineering environment
- N-IO (The Network I/O), Yokogawa's software configurable smart I/O
- Field Commissioning Support Package, Yokogawa's commissioning tool for N-IO
Flexible I/O Binding with N-IO and Field Commissioning Support Package
After the DCS is sent to a site, design changes often happen due to physical restrictions of implementation or inadvertent miscalculations and these changes can significantly affect the project schedule. And shortening the term of a project is an ever-present challenge. Flexible I/O binding, Yokogawa’s improved late I/O binding solution, helps overcome these customer challenges.
Reducing the Risks to Scheduled Project Delivery
The flexible I/O binding facilitates simple and hassle-free I/O binding. This is made possible by software marshaling and the N-IO’s universal channels. The type of I/O and the interconnection between the I/O module and the controller can be modified remotely which significantly absorbs the impact of last-minute I/O changes. Furthermore, the flexible I/O binding achieves early delivery of I/O cabinets to the site, and problems can be found and fixed on-site at a very early stage.

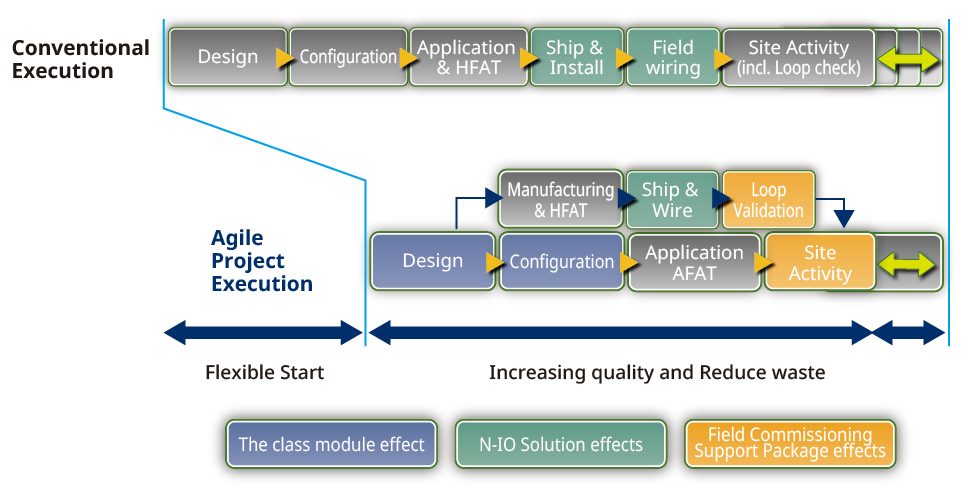

The flexible I/O binding shortens duration of a project. After I/O design is fixed, application engineering and hardware engineering can progress independently and parallel. This is made possible by System Independent Loop Commissioning. System Independent Loop Commissioning project capability utilizes Yokogawa's Field Commissioning Support Package, an innovative tool allowing the field testing and validation of N-IO without requiring a deployed system.
The Automation Design Suite, Yokogawa's new engineering environment, retains the entire engineering history of your plant from design phase, through commissioning and live operation; which ensures up-to-date plant knowledge with every expansion, or hardware and software change throughout your lifecycle.
Module Based Engineering
The Automation Design Suite adopts a Modular approach to automation design and execution, where process loops (regulatory/complex Loops and sequence control), alarm design philosophy, graphics and more are deployed as design patterns. Also multiple application modules can be handled as one module (Group Module). These functions enable easily downloaded, efficiently shared and re-used as standards across the enterprise, saving time and resources.
YOKOGAWA leverages its long history and vast expertise in process automation, with standardized, industry proven engineering modules available that span a broad range of processes and functions for production, safety and asset excellence.
Management of Change and Resources
The Automation Design Suite is more than the ‘As built’ specification of your plant… It provides dynamic management of design, investment and project effectiveness by auditing and versioning engineering changes, and facilitating effective engineering through ModPacks (Modification Packages).
This serves to maintain project schedules by reducing the delays and the engineering impact of late design changes or scope changes. The Automation Design Suite also auto-documents and checks inconsistencies in project activity and software resources, removing the pain from project management, and significantly reducing project risk.
Support the Field Digital Communication
Yokogawa realized the potential of field networks in a production control system early on and designed its systems with field networks in mind. CENTUM VP supports FOUNDATION™ fieldbus, HART®, PROFIBUS-DP, PROFINET, DeviceNet™, Modbus®, Modbus/TCP, Ethernet®/IP and ISA100 Wireless™ (ISA100.11a wireless standard). The CENTUM VP integratedly controls and monitors these field devices from various vendors with various communication protocols.
Applying Fieldbus in Plant Control System
The engineering for fieldbus function blocks can be performed in the same way as for other function blocks in FCS. The operation and monitoring environment is also the same for the fieldbus function blocks and other FCS function blocks. No additional requirements for engineering, operation and monitoring of the fieldbus applications in Yokogawa DCS. The most favorable merit for applying fieldbus is highly efficient maintenance of field devices. Yokogawa offers an asset management software package, Plant Resource Manager (PRM), for device management and diagnosis. With PRM, the advantage of fieldbus can be optimized so as to make the maintenance of the whole system more efficient.
Plant Resource Manager (PRM)
The maintenance information of devices are collected by PRM via fieldbuses and stored in the PRM database. The corresponding maintenance schedules, maintenance procedures and spare parts information are also stored accordingly in the same database. The maintenance of the field devices can be performed through fieldbus. Thus the maintenance engineers are considerably relieved from going to the fields of the devices in the remote areas and hazardous areas.
Go to the related web page (Asset Management and Integrity)
Audit trail management is important in both control and maintenance systems. All maintenance works on devices, which are maintained by PRM, are recorded and stored, and can be easily retrieved too.
By integrated management of device management information, the replacement cycle of devices and trend of device troubles can be predicted. This technique minimizes the impact of device problems on plant operation, and maintenance work and parts procurement can also be planned and scheduled.
Solutions to Non-Fieldbus Devices
PRM can create a database for legacy devices in addition to Fieldbus devices. Maintenance information is recorded and managed in a database for integrated, overall planned maintenance of all devices in the plant.
DD and CF Download
The FOUNDATION™ fieldbus device files in this section are categorized according to whether the devices have undergone Host Interoperability Support Testing (HIST). HIST is an invaluable tool in determining whether a specific fieldbus device is interoperable with a host system.
About HIST at Yokogawa
- FOUNDATION™ fieldbus laboratory is established in Yokogawa Singapore.
- Yokogawa is running the HIST program according to the FOUNDATION™ fieldbus specifications.
- Yokogawa is continuing development of HIST in cooperation with other device manufacturers.
- The list of field devices that have passed the HIST can be checked on the Interoperability page.
Unified Gateway Station (UGS)
The unified gateway station (UGS) acts as an interface, allowing CENTUM VP to communicate with STARDOM network-based control systems or other third-party subsystems such as Modbus RTUs, Modbus/TCP units, EtherNet/IP units, OPC DA units, and intelligent electronic devices (IEDs). It utilizes the EC 61850 protocol, which has been widely adopted by the power industry.
System Software Updates
Periodically, system software must be brought up to date by adding new functions, enhancing existing functions, and fixing bugs. For a variety of reasons, many of our customers would prefer to wait for a scheduled plant shutdown to update their system software to the latest version. Even if a customer has not yet installed an earlier version of the software, Yokogawa guarantees that the system will keep working normally and without interruption when the latest software version is installed. Yokogawa also guarantees that the software will be fully compatible.
System Modification & Expansion
Our customers often need to modify or expand a control system after it is installed, and major concerns with this include avoiding disruptions to plant operations, minimizing the shutdown period, and minimizing the risks of a hot system cutover.
Yokogawa offers a virtual environment for FCS and HIS where both the control and operator functions of the CENTUM database can be tested without FCS hardware. It ensures the new programs will work when they are installed, reduces risks of system failures, and minimizes the shutdown period.
Upgrading (moving from one Yokogawa system to another Yokogawa system)
For each of its CENTUM systems, Yokogawa has paid particular attention to helping its customers manage lifecycle costs by optimizing the upgrade process. Upgrading is simple and quick.
All of Yokogawa's legacy CENTUM systems can be controlled and monitored from a newer CENTUM system. Via a control network, CENTUM VP can control and monitor operations at a plant that relies on a CENTUM V, CENTUM-XL, CENTUM CS, or CENTUM CS 3000 system. The latest CENTUM VP can also communicate with both the N-IO and the more traditional FIO and Yokogawa will continue to sell and provide long-term support to both types of I/O. Thus, by allowing its customers to utilize their existing assets wherever possible, Yokogawa offers them a cost-effective way to upgrade their production control systems.
Migration (moving from a non-Yokogawa system to a Yokogawa system)
CENTUM has been Yokogawa’s DCS brand since 1975, when the first generation CENTUM system was released to the market. Many of our competitors in the DCS market have either been acquired by other companies or have disappeared from the market together with their control systems. Only a handful of the companies that were first active in this market are still around today.
Not satisfied with another vendor’s control systems? Consider migrating to it to CENTUM VP. We have successfully migrated over 350 non-Yokogawa systems so far and the number is steadily growing. To name a few: Bailey INFI90, Foxboro I/A, Emerson RS3/PROVOX/DeltaV, Eurotherm, Hartman & Brown ContronicP, Hitachi, Honeywell TDC2000/TDC3000/PKS, Siemens SIMATIC, Taylor MODCELL, Toshiba, Allen-Bradley PLC.
40 year history of CENTUM
Introducing CCC Inside™ for Yokogawa CENTUM VP
Trusted in over 10,000 installations around the world, CCC applications and algorithms are the gold standard for efficient and reliable turbomachinery control. CCC Inside™ for Yokogawa CENTUM VP brings these solutions — refined over 40 years — to the Yokogawa Field Control Station (FCS), paving the way for flatter architectures and fewer vendor interactions.
- Combine Yokogawa’s CENTUM VP platform with best-in-class turbomachinery controls from CCC
- Leverage the global presence and project execution capabilities of both Yokogawa and CCC
- Enjoy ongoing validation, support of new software releases, and long-term lifecycle support
CCC Inside™ is designed for seamless integration with Yokogawa’s CENTUM VP FCS, enabling you to run CCC control applications directly from Yokogawa’s hardware. With CCC Inside™, you can streamline operations and empower more personnel to manage your equipment. Plus, you get access to CCC knowledgeable project and field engineers, with expertise developed over thousands of installations, different processes and machine arrangements.
CCC Inside HMI Libraries
- Introduction of CENTUM CS 3000 maximizes productivity and improves product quality at special polymer plant.
- A major improvement as a result of this project is that butadiene monomer recovery efficiency jumped huge.
- Reinstrumentation project at HDPE plant replaced legacy pneumatic instruments and PLCs with integrated CENTUM CS 3000 PCS and ProSafe-RS SIS.
- HART field devices can be monitored from the central control room with the plant resource manager (PRM) package, enabling a more predictive and proactive maintenance approach that reduces total cost of ownership.
CENTUM VP was selected for the BOP in a concentrated solar power plant of the Xina Solar One Project.
Yokogawa provided a complete control system solution that integrates the subsystems in the plant as a system of systems.
- Hibiki LNG Terminal is supplying natural gas to a broad area of northern Kyushu.
- CENTUM VP and FA-M3V provide a centralized monitoring environment and contribute to safe and stable operation.
- DDMO for the optimization of the air-blowing rate of the aeration tanks
- Interlink between DCS and DDMO to maximize the energy saving effect
- Rapid Implementation of Integrated CENTUM CS 3000 and ProSafe-RS.
- The highly reliable CENTUM CS 3000 system has also helped TOL maintain high productivity at this plant.
Yokogawa Romania successfully modernized the control system at ELCEN's combined cycle heat and power plant.
A major challenge in deploying the system when all work moved to the virtual space was the Covid-19 pandemic.
Okinawa Prefecture is promoting clean energy with the aim of becoming a low-carbon society in the 21st century. Ocean thermal energy conversion (OTEC) technology is particularly well suited for this purpose, and is expected to both reduce the environmental impact that power generation has in the prefecture and lessen the prefecture's dependence on imported fossil fuels.
- CENTUM VP Batch replaces the legacy system and improves production efficiency in the acrylic plant.
- CENTUM VP Batch capability can handle the recipe management to Batch report handling and unit management.
Yokogawa provided integrated control and safety system to Banagas's CGP-3 gas processing plant.
N-IO based system contributes to reducing maintenance and other operating expenses (OPEX).
- Highlyadvanced biopharmaceutical plant uses CENTUM, VP Batch, Exaquantum and PRM.
- Total system integration for large-scale biotech production facility.
- As the main automation contractor (MAC) for this plant construction project, Yokogawa Brazil engineered, installed, and commissioned an integrated control and instrumentation solution
- Yokogawa Brazil completed the commissioning of these systems ahead of schedule and the production of green polymer was started just one week later
Williams Opal successfully reduced start-up time of stabilizer column and turbo expanders with Exapilot.
Exapilot also standardized operators' start-up processes as Standard Operating Procedures.
- Operational Excellence by Asset Maximization, Utilizing Yokogawa's DCS, SIS, Analyzers, and Field Instruments.
- The CENTUM VP PCS and ProSafe-RS SIS were integrated using the same engineering environment.
- Nearly 60 gas chromatographs and a large number of other types of analyzers in several analyzer houses.
- World's largest LNG terminal relies on CENTUM to maximize safety and reliability.
- It is very important for KOGAS to be able to adjust flexibly to shifts in demand in the gas that it supplies to power plants, industrial companies, and residences.
First generation CENTUM had contributed to the production of high-quality steel product at the NSSMC's Yawata Works for 33 years.
Yokogawa had pursued innovation of process control technology with the customer during the decades.
GC8000 was selected to detect components responsible for stainless steel corrosion of pipeline.
GC8000 with custom container analyzes crude oil components every 4 mins at an offshore platform.
- Yokogawa successfully carried out the upgrade of off-site system in a 48 hour shutdown period with Seibu Oil.
- Control room design for HSE and smooth communication contributes to the operational efficiency and safety.
Yokogawa China successfully replaced control system with CENTUM VP at 4th phase of caustic soda production plant in China.
Thanks to their project execution capability, the replacement was completed within a shorter period than the planned shutdown time.
Yokogawa contributes to the education of process industry talents by providing its own products.
TAFE Queensland students learn process industry by controlling the color of toast with CENTUM VP DCS.
Rousselot Ghent won Belgium Factory of the Future Award. Yokogawa has supported Rousselot with automation systems since 1993.
Data of 20,000 tags gathered by Exaquantum helped to find the ideal production parameters.
Network and system security is now a necessity in process automation industry. YOKOGAWA provides a service lifecycle solution for cyber security to ensure that the security measures and deployments are continuously enhanced, monitored and inspected.
This white paper explains the details of the security design, implementation, operation and validation solutions from the technical perspective.
Process manufacturers continue to demand more from their plants and automation systems. This demand is driven by business pressures for greater manufacturing flexibility and by customer pressure for faster, smaller deliveries and higher service levels. Manufacturers also realize that they need to improve the quality of their manufacturing operations for any number of reasons, most especially safety, as recent major accidents have shown. Abnormal operations, especially, present risks that these manufacturers need to reduce.
Process automation in oil refineries is undergoing major changes, driven by customers frustrated by what they consider to be slow and incremental advances from the main automation original equipment manufacturers (OEMs) in the industry. ExxonMobil has become a de facto industry representative and is driving vendors like Yokogawa and others to reevaluate how large-scale automation projects are implemented.
- CENTUM RIO System Upgrade (3.5 MB)
- Chemical Industry Solutions
- CENTUM VP Integrated Production Control System (4.3 MB)
- Cyber Security for Industrial Control Systems (3.0 MB)
- CENTUM VP for Batch Control (3.8 MB)
- Solutions for the Chemical Operations Executive (2.0 MB)
- Sustainable Plant / Yokogawa's solutions for lifecycle sustainability of modern process automation systems (5.5 MB)
- Alarm Management - To Enable Higher Stability and Safer Plant Operations (4.0 MB)
