Widefield Confocal Scanner Unit CSU-W1 is a confocal unit that enables confocal imaging when attached to an optical microscope. Utilizing a proprietary spinning-disk confocal design, it offers features ideal for live-cell imaging, including high-speed acquisition and low phototoxicity.
Compared to previous models, CSU-W1 delivers an improved field of view and image quality, and is available with a wide range of options—including support for NIR wavelengths, photostimulation, super-resolution imaging, and illumination uniformity. As a result, CSU-W1 is widely used across diverse research fields that continue to advance rapidly.
High-Speed Imaging with a Wide Field of View
- Compared with conventional models, the enlarged spinning disk expands the field of view by up to four times.
- Enables high-resolution observation that fully leverages wide-field, high-sensitivity cameras from various manufacturers
Higher Image Quality and Clarity
- By increasing the spacing between pinholes on the pinhole array disk, crosstalk is reduced, enabling confocal imaging with minimal flare
- Clear imaging is possible even deep inside thick samples
Versatility for a Wide Range of Research Applications
- Selection of pinhole diameters allows configuration of a confocal system optimized for specific experiments
- Motorized disk retraction from the optical path enables brightfield and phase-contrast observation
- Supports simultaneous dual-camera imaging and split-field imaging with various two-wavelength combinations, such as G/R and C/Y
- Fully motorized switching of all modes ensures simple and intuitive operation
Details
Wide

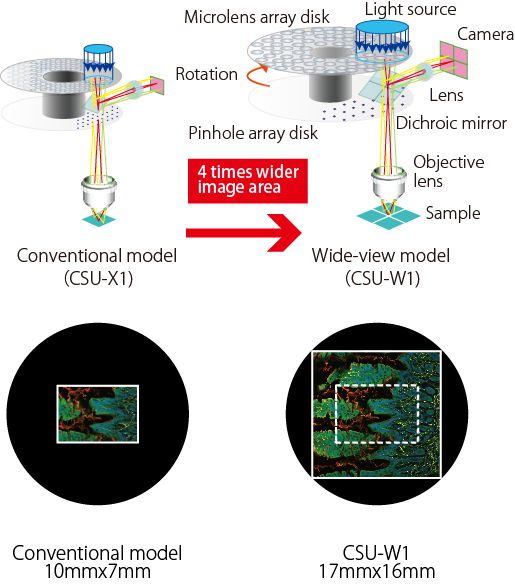

Widest FOV confocal! Provides 4 times wider FOV than the conventional model.
Clear

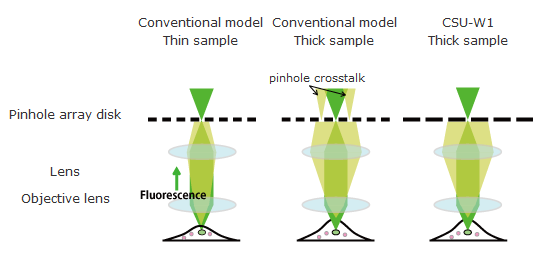

Newly designed disk unit offers much improved image quality. Due to significantly reduced pinhole crosstalk, CSU-W1 enables clear observation much deeper into thick samples.
Conventional model
|
XY MIP |
XZ Slice |
 |
 |
CSU-W1
|
XY MIP |
XZ Slice |
 |
 |
Mouse ES cell colony
Fluorescent probe: H2B-EGFP（Excitation：488nm） mCherry-MBD-NLS（Excitation: 561nm）
Objective lens: 60x silicone
Z-sections/stack: 100um（0.4m/251slices)
By courtesy of Jun Ueda, Ph.D. and Kazuo Yamagata, Ph.D., Center for Genetic Analysis of Biological Responses, The Research Institute for Microbial Diseases, Osaka University
Flexible
Flexibly selectable functions to meet versatile applications.
High confocality pinhole (Optional Component)
In addition to our conventional 50um pinhole size, 25m pinhole size with higher confocality is available.
You can select either one or the both pinhole size, with easy-to-use motorized disk exchange mechanism.
New bright field through path (Standard)
New mechanism to move the disks out of the light path allows much easier projection of confocal and non-confocal images such as phase contrast.
Simultaneous dual color imaging mechanisms
(T2 and T3 Models)
CSU-W1 offers single camera split-view model, in addition to the dual camera model which are much improved from those for the CSU-X1. Thanks to the wide FOV, even the split-view offers 2 times wider image area than with older model. By using various dichroic mirrors, it is possible to select various dye-combinations for dual-color imaging*1 with both the two camera model and split-view model.
Basic Configurations
CSU-W1 offers selection from a total of three basic configurations, two pinhole sizes, options for near infrared observation and an external light path which is useful for versatile applications such as photo bleaching, while bright field light path is now a standard feature. All switching mechanisms in the CSU-W1 are fully motorized and thus ready for automated experiments.
Basic Configurations
CSU-W1 provides a total of three basic configurations for multi- color imaging; 1) Sequential imaging with one camera and a filter wheel, 2) Simultaneous two-color imaging with two cameras, and 3) Split-view two color imaging with one camera shared by 2 optical paths. All features are upgradable after installation.
Filter
Option
SoRa disk
Optical resolution has been improved by approximately 1.4x using a super-resolution technique based on spinning-disk confocal technology. Furthermore, a final resolution approximately twice that of the optical limit is realized through deconvolution.
Upgrading from the CSU-W1：CSU-W1 SoRa
Uniformizer
Most suitable option for CSU-W1 illumination uniformity. Uniform and efficient illumination of the entire wide field of view.
Near Infrared (NIR) Port
NIR port provides up to 785nm excitation capability to allow less-invasive deep imaging. The NIR laser is introduced via a dedicated optical fiber in the same way as visible lasers. It is possible to combine NIR and visible lasers within the CSU-W1 unit to allow simultaneous excitation.
External light path
External light path provides the direct path bypassing the disk s to microscope. Versatile applications such as photo activation are available by introducing an external light scanner through this port.
Lens switcher
Newly designed motorized lens switcher between 2 relay lenses i s useful for fitting CSU-W1 image size with various camera types, and also for easy magnification change without exchanging objective lenses.
Variable aperture
Variable aperture to change laser illumination area, and thus the imaging area by the CSU-W1, is useful to minimize laser damages in the specimen.
Selectable option
| Option | 1 Camera model | 2 Camera model | Split-view model |
|---|---|---|---|
| NIR port | ✓ | ||
| External light path | ✓ | ||
| Variable aperture | ✓ | N/A | |
| Camera port lens | Selectable from 0.83x, 1x |
Selectable from 0.83x, 1x (1 Camera) Selectable from 0.83x, 1x (2 Camera) |
Selectable from 0.83x, 1x |
| Additional lens to lens switcher |
Selectable from 0.83x, 1x, 2x | N/A | |
2 Camera model, 1 Camera model
Split-view model
*1 2 Camera model *2 2 Camera model and Split-view model
*3 1 Camera model and 2 Camera model
Specifications
| General Specifications | ||||
|---|---|---|---|---|
| Model | 1 camera model (T1) | 2 camera model (T2) | Split-view model(T3) | |
| Confocal scanning method | Microlens-enhanced dual spinning disk scanning | |||
| Spinning speed | 1,500rpm - 4,000rpm Max200fps | |||
| External synchronization | Scan-speed synchronization through pulse signals Input/output : TTL level 300Hz up to 800Hz | |||
| Disk unit | Selectable up to 2 disks from 50um (for high magnification) and 25um(for low magnification) Motorized switching |
|||
| Bright field | Motorized exchange between confocal and brightfield | |||
| Effective FOV | 17×16mm | |||
| Excitation wavelength | 405nm-785nm | |||
| Laser introduction | Yokogawa's standard fiber*1 VIS Laser port (405-647nm) 【Option】NIR Laser port (685-785nm) |
|||
| Observation wavelength | 420nm-850nm | |||
| Dichroic mirror switching | Motorized 3CH (Dichroic mirror block can be exchanged) | |||
| Emission filter wheel | 10-position filter wheel Filter sizeφ25mm Switching speed*2 : 100msec max.(Standard mode) 40msec max.(High speed mode) |
6-position filter wheel Filter sizeφ25mm Switching speed*2 : 100msec max. |
||
| External control | RS-232C (CSU-X1 command upper compatible) | |||
| Microscope mount | Yokogawa original | |||
| Camera adaptor | C mount 1x (Variable magnification： 0.83x ) | |||
| Light introduction port | 【Option】Photo breach etc | |||
| Operating environment | 15-30oC、20-75%RH No condensation | |||
| Power consumption | Input : 100-240 VAC ±10% 50-60Hz 250VAmax | |||
| External dimension | Main unit | 480(W)x 327(D)x 252(H)mm | 480(W)x 476(D)x 252(H)mm | 374(W)x 425(D)x 252(H)mm |
| Power unit | 225(W)x 378(D)x 152(H)mm | |||
| Weight | Main unit | 17kg | 20.5kg | 18kg |
| Power unit | 5kg | |||
| Attachable microscope | Olympus IX series, Nikon ECLIPSE Ti , Zeiss Axio Observer, Leica DMI series*3 | |||
*1 Each CSU-W1 head is optimized with its fiber at factory. Please inquire about fiber exchange if necessary.
*2 Adjacent position.
*3 Some microscopes/options could limit the FOV of CSU-W1 or connection with CSU-W1, please inquire.
