The CA700 Pressure Calibrator is equipped with a silicon resonant sensor that uses Yokogawa proprietary DPharp technology. The CA700 has a basic accuracy of 0.01% of reading on pressure measurement and 0.015% of reading on Current/Voltage source/measurement, which makes it the most accurate calibrator in the portable calibrator class.
Click here for details on the "Pressure Calibrator CA700 (Yokogawa Test & Measurement Corporation)"

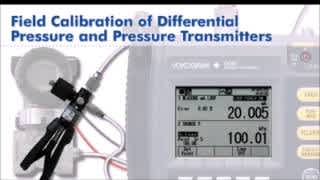

Field Calibration of Differential Pressure and Pressure Transmitters
Calibration of pressure transmitters is required to accurately measure the input and output values and to calculate the error rate.
The CA700 ensures reliable calibration with its function to accurately measure the input and output values of pressure and current.
Additionally its embedded calibration procedures enable users to perform certain calibration following the prescribed procedure.
Pressure Switch Test
A pressure switch test measures the pressure at the time when the contact opens and closes and the resistance at the time when the dead band contact closes.
A test procedure is embedded to enable users to carry out a test following the prescribed procedure.
Check and I/O Adjustment of an Electro-pneumatic Converter
Input and output adjustment of an electro-pneumatic converter is carried out by applying rising and falling currents of 0, 25, 50, 75, and 100% of the span.
A reliable test can be carried out with the CA700 that has a 4-20 mA step function for signal generation and a capability to accurately measure the generated pressure.
20 mA SIMULATE (Two-wire Transmitter Simulator)
The CA700 can also be used as a transmitter simulator to carry out a loop test. It can absorb (SINK) the set current from an external voltage generating device (e.g., a distributor system or PLC) of instrumentation equipment.
4-20mA current can be sourced with an accuracy of 0.015% of the reading.
Two-wire Transmitter Loop Check
DC mA signals can be measured by supplying power to the transmitter from a 24 V DC power supply.
DC mA signal measurement and zero-point check can be performed with an accuracy of 0.015% of the reading.
A 250-ohm resistor for HART and BRAIN communication is included in this calibrator so there is no need to attach an external resistor when connecting to a handy terminal.
Input Command Check and Adjustment of Recorders and Controllers
Instrumentation loop test and operation/command check can be performed by sourcing DC 1-5 V / 4-20 mA instrumentation signals with an accuracy of 0.015% of the reading. Furthermore, two patterns of linear sweep and step sweep can be selected (the sweep time can be specied from 15, 30, 45, and 60 sec).
Denso builds automotive electrical systems and has 3 very large buildings at this location containing many surface mount
and air operated assembly systems. They supply air from central compressors and want to charge each department for air
usage. Before this could start, the transmitters had to be calibrated to insure correct measurements.
Regular inspection of various sensors and meters scattered over the field is essential for stable plant operation. The pressure calibrator CA700 is a highly accurate and functional pressure calibrator specialized for calibration of differential pressure and pressure transmitters.
The CA700 can measure pressures with an accuracy that is within ±0.01% of rdg*, making it one of the most accurate portable pressure calibrators on the market. This highly accurate portable pressure calibrator features a variety of functions that includes a wide selection of measuring ranges, as found/as left data storage, and memory capacity to store calibration procedures.
This video covers the analog sensor trim and calibration of a differential pressure transmitter using a Yokogawa YHC5150X FieldMate HandHeld HART Communicator.
