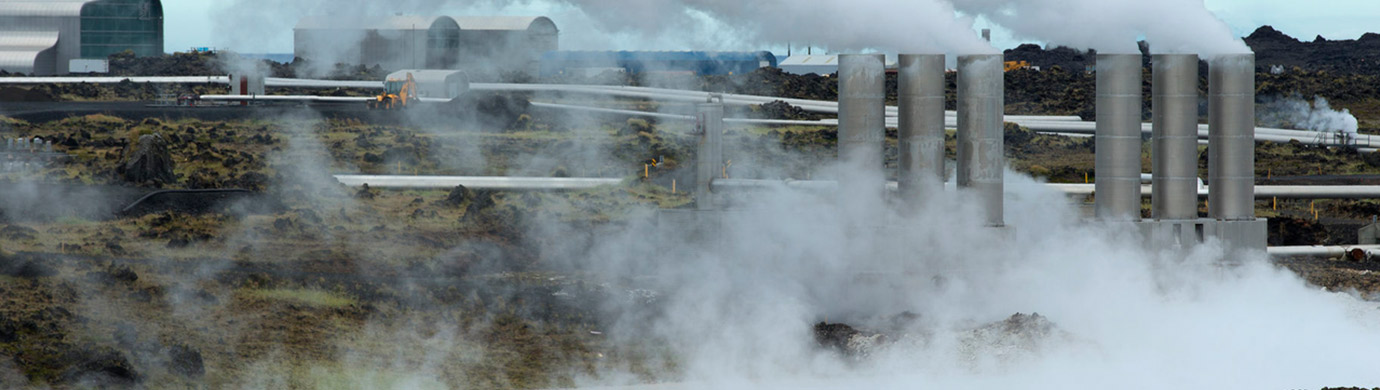

Geothermal Power

Geothermal energy can generate a stable supply of electricity throughout the year because it is not dependent on weather conditions. Also, as no fuels are burned aboveground and only extremely small amounts of carbon dioxide are released, it is environmentally friendly. There are abundant geothermal resources along the circum-Pacific belt (also known as the “Ring of Fire”), in countries such as Japan, the Philippines, Indonesia, New Zealand, Mexico, Costa Rica, and the United States, as well countries such as Iceland, Turkey, Kenya and Ethiopia. Yokogawa has participated in dozens of geothermal power generation projects providing a variety of measurement and control technologies that enhance the reliability and maintenance efficiency.

Challenges

Customer Challenge

Preventing corrosion that occurs when using a device in a corrosive atmosphere

Solution

The printed circuit boards that go into Yokogawa’s integrated production control systems all receive a hydrogen sulfide-resistant coating, and an anti-corrosion coating is applied to all Yokogawa field devices.

Enabling Technologies

EJX/EJA Series Pressure Transmitters/Differential Pressure Transmitters

EJX/EJA Series Pressure Transmitters/Differential Pressure Transmitters

DPharp series digital pressure transmitters use a differential pressure high accuracy resonance pressure (DPharp) sensor that represents one of the most revolutionary advances in transmitter technology.


Wireless Temperature Transmitters

YTA Series Temperature Transmitters

YTA series temperature transmitters convert sensor inputs to a 4 to 20 mA, HART, or FOUNDATION™ fieldbus signal; this eliminates the drawbacks of wire resistance and signal noise that are often experienced with conventional temperature instruments.


Wireless Transmitters EJX B Series

Wireless Transmitters

The flexibility of a wireless solution reduces infrastructure costs and enables the installation of transmitters in locations that previously were previously too difficult or prohibitively expensive to wire.


FLXA21 Modular 2-wire Liquid Analyzer

FLXA21 Modular 2-wire Liquid Analyzer

The FLXA21 is a next-generation modular liquid analyzer that can be flexibly configured to measure pH/ORP, contacting conductivity, inductive conductivity, and dissolved oxygen. The FLXA21 also supports the installation of up to two sensors of the same type, thereby reducing installation costs and saving space.


PRM Plant Resource Manager

PRM Plant Resource Manager

Plant Resource Manager (PRM) makes predictive maintenance easy. Early detection of system and device malfunctions helps prevent catastrophic failures.



Customer Challenge

Reliably performing the remote monitoring and control of facilities such as steam wells and reinjection wells that are located at a considerable distance from a geothermal power plant

Solution

Yokogawa installs remote I/O modules and utilizes a fiber optic redundant ring topology to ensure reliable communications between the integrated production control system and field devices. Wireless field devices are used in difficult to wire locations.

Enabling Technologies

STARDOM Network-based Control System

STARDOM Network-based Control System

Dual redundant and low-power configurations are available for the STARDOM hybrid PLC/intelligent RTU. STARDOM supports HART, Modbus, FOUNDATION™ fieldbus, and other network protocols.


Collaborative Information Server (CI Server)

Yokogawa CI Server allows immediate improvement to production efficiency through digital transformation and reduction of operational maintenance whilst building a digital transformation framework.


Wireless Transmitters EJX B Series

Wireless Transmitters

The flexibility of a wireless solution reduces infrastructure costs and enables the installation of transmitters in locations that previously were previously too difficult or prohibitively expensive to wire.



Customer Challenge

Efficiently maintaining equipment that is located at a considerable distance from a geothermal power plant

Solution

Yokogawa’s Plant Resource Manager (PRM) is an integrated device management software package that enhances maintenance efficiency by making it possible to remotely monitor the status of devices and make changes to their settings. This minimizes the amount of time workers need to spend at geothermal sites for troubleshooting and other tasks, and thus minimizes their exposure to hydrogen sulfide gas, which, in sufficiently high concentrations, can present a health risk.

Enabling Technologies

PRM Plant Resource Manager

PRM Plant Resource Manager

Plant Resource Manager (PRM) makes predictive maintenance easy. Early detection of system and device malfunctions helps prevent catastrophic failures.


Production Control System: CENTUM VP

CENTUM VP Integrated Production Control System

The CENTUM VP integrated control system secures interruption-free “uptime only” plant performance for optimal productivity and profitability in the renewable energy field.


STARDOM Network-based Control System

STARDOM Network-based Control System

Dual redundant and low-power configurations are available for the STARDOM hybrid PLC/intelligent RTU. STARDOM supports HART, Modbus, FOUNDATION™ fieldbus, and other network protocols.


Collaborative Information Server (CI Server)

Yokogawa CI Server allows immediate improvement to production efficiency through digital transformation and reduction of operational maintenance whilst building a digital transformation framework.



Details

Geothermal Power Generation Process

A steam well is dug to draw fluid comprised of steam and hot water from a geothermal reservoir located deep underground. The fluid mixture is introduced to a steam separator that removes the moisture from the steam, and the steam is then used to drive the turbine of an electricity generator. Low-temperature steam discharged from the turbine is passed through a steam condenser to return the water vapor to a liquid state, and the water is then returned to the underground reservoir by means of a reinjection well.

Control and Measurement Technologies

Geothermal Power Generation Process

Plant-wide Systems and Instrumentation

Information

  • Operation support
  • Operation training
  • Plant asset management

Control

  • Integrated monitoring and control
  • Safety instrumentation
  • Remote monitoring and control
  • Wireless communication

Measurement

  • Flow rate
  • Pressure
  • Liquid level
  • Temperature
  • pH
  • Conductivity
Processes
Fluid Transportation Main Geothermal Power Turbine
  • Separator water level control
  • Separator pressure control
  • Hot water return pump control
  • pH control
  • Steam production well/ injection well remote monitoring and control
  • Steam pressure control
  • Emergency vent valve operation
  • Main turbine control
  • Condenser level control
  • Cooling water control
