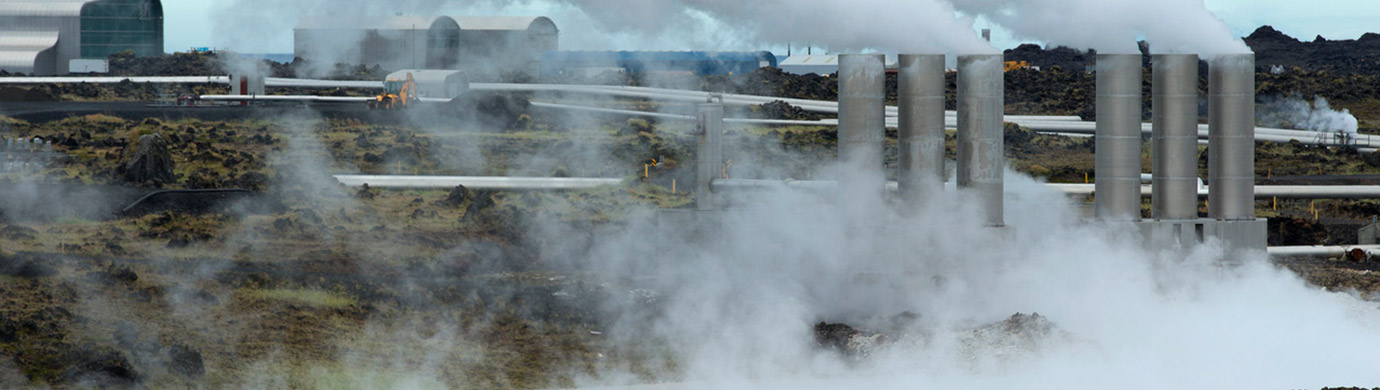

지열발전

지열에너지는 기상 조건에 의존하지 않기 때문에 일 년 내내 안정적인 전력을 공급할 수 있습니다. 또한 어떤 연료도 지상에서 태우지 않으며 매우 적은 양의 이산화탄소만 배출되므로 환경친화적입니다. 태평양, 일본, 필리핀, 인도네시아, 뉴질랜드, 멕시코, 코스타리카, 미국 등의 국가에서 태평양 연안 벨트 ("불의 고리"라고도 함)를 따라 풍부한 지열 자원이 있습니다. 다른 지열 활동 지역에 위치한 아이슬란드, 터키 및 이탈리아와 같은 국가들과 협력합니다. Yokogawa는 현재까지 일본, 동남아시아 및 기타 지역의 30개 지열발전 프로젝트를 실행한 경험을 바탕으로 지열발전 시스템의 신뢰성 및 유지 관리 효율성을 향상시키는 다양한 측정 및 제어 기술을 제공하고 있습니다.

Challenges

Customer Challenge

부식성 환경에서의 기기 부식 방지

Solution

Yokogawa의 통합 생산 관리 시스템에 들어가는 인쇄 회로 기판에는 모두 황화수소 내성 코팅이 되어 있으며 모든 부식 방지 코팅이 모든 Yokogawa 필드 장치에 적용됩니다.

Enabling Technologies

Pressure Transmitters

EJX/EJA Series Pressure Transmitters/Differential Pressure Transmitters

DPharp 디지털 압력 송신기 시리즈는 트랜스미터 기술에서 가장 혁신적인 기술 중 하나인 DPharp (Differential Pressure Precision Resonance Pressure) 센서를 사용합니다.


Temperature Transmitters

YTA Series Temperature Transmitters

YTA 시리즈 온도 트랜스미터는 센서 입력을 4~20 mA, HART 또는 FOUNDATION™ 필드 버스 신호로 변환합니다. 이는 기존의 온도 계측기에서 종종 경험하게 되는 와이어 저항 및 신호 잡음의 단점을 제거합니다.


Wireless Transmitters

Wireless Transmitters: EJX B Series, YTA510, YTMX580

무선 솔루션의 유연성은 인프라 비용을 줄이고 과거 쉽지 않았던 배선 비용이 많이 발생하는 위치에 트랜스미터를 설치할 수 있습니다.


Liquid Analyzer

FLXA21 Modular 2-wire Liquid Analyzer

FLXA21은 차세대 모듈식 액체 분석기로 유연하게 pH/ORP를 측정하고 전도성, 유도 전도성 및 용존 산소량을 측정할 수 있습니다. FLXA21은 또한 동일한 유형의 센서를 최대 2개까지 설치할 수 있기 때문에 설치 비용을 줄이고 공간을 절약할 수 있습니다.


PRM, Plant Resource Manager

PRM Plant Resource Manager

Plant Resource Manager (PRM)는 예측 유지 보수를 쉽게 해줍니다. 시스템 및 장치 오작동을 조기에 감지하면 치명적인 오류를 예방할 수 있습니다.



Customer Challenge

지열 발전소에서 상당한 거리에 위치한 스팀 웰 및 재주입 웰과 같은 시설의 원격 모니터링 및 제어를 신뢰성 있게 수행

Solution

Yokogawa는 원격 I/O 모듈을 설치하고 광섬유 중복 링 토폴로지를 사용하여 통합 생산 관리 시스템과 현장 장치 간의 안정적인 통신을 보장합니다. 무선 필드 장치는 배선이 어려운 곳에서 사용됩니다.

Enabling Technologies

STARDOM

STARDOM Network-based Control System

듀얼 리던던트 및 저전력 구성은 STARDOM 하이브리드 PL /지능형 RTU에서 사용할 수 있습니다. STARDOM은 HART, Modbus, FOUNDATION™ 필드 버스 및 기타 네트워크 프로토콜을 지원합니다.


FAST/TOOLS SCADA

FAST/TOOLS SCADA

FAST/TOOLS 패키지는 신재생 에너지 애플리케이션의 성능을 최적화합니다. 고가용성 및 성능을 보장하고 온라인 구성을 지원합니다.


Wireless Transmitters

Wireless Transmitters: EJX B Series, YTA510, YTMX580

무선 솔루션의 유연성은 인프라 비용을 줄이고 과거에는 쉽지 않았던 배선 비용이 엄청나게 많은 위치에 트랜스미터를 설치할 수 있습니다.



Customer Challenge

지열발전소와 상당한 거리에있는 장비를 효율적으로 유지 관리

Solution

Yokogawa의 PRM (Plant Resource Manager)은 장치 상태를 원격으로 모니터링하고 설정을 변경함으로써 유지 관리 효율성을 향상시키는 통합 장치 관리 소프트웨어 패키지입니다. 작업자가 문제 해결 및 기타 작업을 위해 지열 사이트에서 작업하는 시간을 최소화하므로 인체 위험을 초래할 수 있는 황화수소 가스에 대한 노출을 최소화합니다.

Enabling Technologies

PRM

PRM Plant Resource Manager

Plant Resource Manager (PRM)는 예측 유지 보수를 쉽게 해줍니다. 시스템 및 장치 오작동을 조기에 감지하면 치명적인 오류를 예방할 수 있습니다.


CENTUM VP

CENTUM VP Integrated Production Control System

CENTUM VP 통합 제어 시스템은 재생 가능 에너지 분야에서 최적의 생산성과 수익성을 위한 중단 없는  "Uptime 전용"시스템 성능을 보장합니다.

* Uptime : 가동시간


STARDOM

STARDOM Network-based Control System

듀얼 리던던트 및 저전력 구성은 STARDOM 하이브리드 PLC/지능형 RTU에서 사용할 수 있습니다. STARDOM은 HART, Modbus, FOUNDATION™ 필드 버스 및 기타 네트워크 프로토콜을 지원합니다.


FAST/TOOLS SCADA

FAST/TOOLS SCADA

TFAST/TOOLS 패키지는 신재생 에너지 애플리케이션의 성능을 최적화합니다. 고가용성 및 성능을 보장하고 온라인 구성을 지원합니다.



Details

Geothermal Power Generation Process

스팀웰은 지하 깊숙이 위치한 지열 저장소에서 증기와 뜨거운 물로 구성된 유체를 끌어내기 위한 설비입니다. 유체 혼합물은 증기로부터 습기를 제거하기 위한 증기 분리기로 유입되고, 증기는 전기 발생기의 터빈을 구동시키는데 사용됩니다. 터빈에서 배출된 저온 증기는 증기 응축기를 통과하여 수증기를 액체 상태로 되돌려 보내고 물은 재주입 웰을 통해 지하 저장소로 되돌아갑니다.

Control and Measurement Technologies

Control and Measurement Technologies

Plant-wide Systems and Instrumentation

Information

  • Operation support
  • Operation training
  • Plant asset management

Control

  • Integrated monitoring and control
  • Safety instrumentation
  • Remote monitoring and control
  • Wireless communication

Measurement

  • Flow rate
  • Pressure
  • Liquid level
  • Temperature
  • pH
  • Conductivity
Processes
Fluid Transportation Main Geothermal Power Turbine
  • Separator water level control
  • Separator pressure control
  • Hot water return pump control
  • pH control
  • Steam production well/ injection well remote monitoring and control
  • Steam pressure control
  • Emergency vent valve operation
  • Main turbine control
  • Condenser level control
  • Cooling water control
