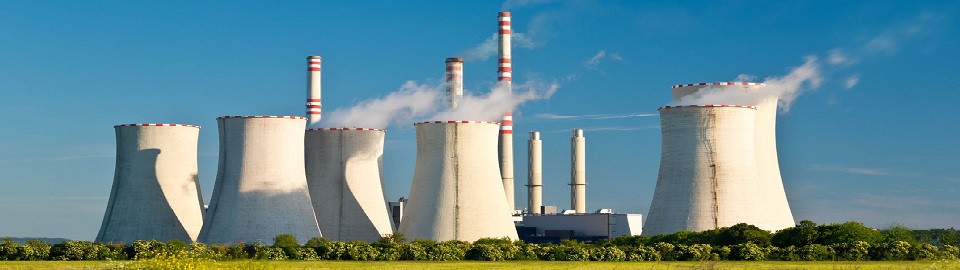

화력발전

석탄, 석유 또는 가스를 연료로 사용하는 화력발전은 전 세계적으로 대부분의 전력을 생산하고 있습니다. Yokogawa는 화력발전소에 1,000개 이상의 제어 시스템을 공급한 실적을 바탕으로 고객이 안전하고 최적화된 작업을 수행할 수 있도록 지원합니다.

Customer Challenge

발전소 효율 향상

Solution

Yokogawa는 연료, 스팀 및 급수 제어를 개선하여 발전소가 더욱 효율적으로 운전할 수 있도록 지원하고 있습니다.

Enabling Technologies

CENTUM VP Integrated Production Control System

CENTUM VP 통합 제어 시스템은 재생 가능 에너지 분야에서 최적의 생산성과 수익성을 위한 중단 없는 "Uptime 전용"시스템 성능을 보장합니다.

* Uptime : 가동시간




Transmitter

DPharp 디지털 압력 송신기 시리즈는 트랜스미터 기술에서 가장 혁신적인 기술 중 하나인 DPharp (Differential Pressure Precision Resonance Pressure) 센서를 사용합니다.


Zirconia Oxygen Analyzers

Yokogawa 지르코니아 산소 분석기는 연소 모니터링 및 제어 애플리케이션에 사용되며 연소를 최적화하고 NOx 배출을 줄이기 위해 다양한 산업에 적용되고 있습니다.


Plant Service (FS)

시운전, 운영자 교육, 운영, 유지 보수 및 시뮬레이션 서비스



Customer Challenge

안전하고 효율적인 보일러 가동, 상당한 기술이 요구되는 복잡한 과정

Solution

Yokogawa 시스템은 연료 가열 및 바이오매스 연료로 전환과 같은 프로세스를 자동화함으로써 플랜트를 보다 안전하고 효율적으로 만듭니다. 그래픽 디스플레이를 통해 운영자는 각 프로세스의 상태를 실시간으로 확인할 수 있습니다.

Enabling Technologies

CENTUM VP Integrated Production Control System

CENTUM VP 통합 제어 시스템은 재생 가능 에너지 분야에서 최적의 생산성과 수익성을 위한 중단 없는 "Uptime 전용"시스템 성능을 보장합니다.

* Uptime : 가동시간


Exapilot Operation Efficiency Improvement Package

Exapilot은 운영자가 공장 운영 절차를 단계별로 안내하는 온라인 내비게이션 도구입니다. Exapilot은 표준 운전 절차 (SOP)를 자동화하고 프로세스 및 장치 이상을 조기에 감지합니다.


Simulator

High Fidelity, Full-replica Training Simulators

Customer Challenge

연소 효율 개선 및 유해한 스택 배출물 감소/제거

Solution

Yokogawa 산소 분석기는 연도 가스의 산소 (O2) 농도를 측정합니다. 이 정보를 사용하여 공연비를 조정하여 연소를 최적화할 수 있습니다. 마찬가지로 스택 가스 분석기는 스택 가스에서 질소 산화물 (NOx)과 황산화물 (SOx)의 농도를 측정하여 유해한 가스 배출을 줄이는 데 사용할 수 있습니다.

Enabling Technologies

ZR Series Zirconia Oxygen Analyzers

Yokogawa 지르코니아 산소 분석기는 연소 모니터링 및 제어 애플리케이션에 사용되며 연소를 최적화하고 NOx 배출을 줄이기 위해 다양한 산업에 적용되고 있습니다.


SG750 Stack Gas Analyzer

SG750 스택 가스 분석기는 적외선 가스 분석기 유닛, 지르코니아 산소 분석기 유닛 및 샘플링 유닛으로 구성되며 최대 5개의 구성 요소 (NOx, SO2, CO2, CO 및 O2)를 동시에 측정할 수 있습니다.



Customer Challenge

스택 가스의 잔류 가스 성분을 연소시켜 CO, NOx, 다이옥신 등의 대기 중으로의 배출을 저감

Solution

Yokogawa 가스 분석기는 스택 가스의 산소 농도를 측정하여 연소 효율을 높이고 잔류 가스 성분을 더 많이 연소시키는 O2 공급 장치를 조정할 수 있습니다.

Enabling Technologies

CENTUM VP Integrated Production Control System

CENTUM VP 통합 제어 시스템은 재생 가능 에너지 분야에서 최적의 생산성과 수익성을 위한 중단 없는  "Uptime 전용"시스템 성능을 보장합니다.

* Uptime : 가동시간


FAST/TOOLS SCADA

FAST/TOOLS 패키지는 신재생 에너지 애플리케이션의 성능을 최적화합니다. 고가용성 및 성능을 보장하고 온라인 구성을 지원합니다.


ZR Series Zirconia Oxygen Analyzers

Yokogawa 지르코니아 산소 분석기는 연소 모니터링 및 제어 애플리케이션에 사용되며 연소를 최적화하고 NOx 배출을 줄이기 위해 다양한 산업에 사용되고 있습니다.


TDLS200 Laser Gas Analyzer

TruePeak TDLS 가스 분석기는 Proprietary Peak Area Integration Method를 사용하고 까다로운 공정 환경에서 현장 분석에 이상적입니다. 고객 플랜트의 보일러 운전 효율성을 현저히 향상시킵니다.


SG750 Stack Gas Analyzer

SG750 스택 가스 분석기는 적외선 가스 분석기 유닛, 지르코니아 산소 분석기 유닛 및 샘플링 유닛으로 구성되며 최대 5 개의 구성 요소 (NOx, SO2, CO2, CO 및 O2)를 동시에 측정할 수 있습니다.



Customer Challenge

소각로에 적재되는 실제 쓰레기양과 예상되는 양의 차이 최소화. 실제 양은 폐기물 유형 및 조건에 따라 다릅니다.

Solution

Yokogawa CENTUM 분산 제어 시스템(DCS)의 휴먼 머신 인터페이스(HMI)는 계획 및 실제(누적 중량) 소각로 Load를 나타내는 트렌드 그래프를 표시합니다. 계획된 하중으로부터 어떤 차이가 있다면, 작업자는 그에 따라 스토커 속도를 조정할 수 있습니다.

Enabling Technologies

CENTUM VP Integrated Production Control System

CENTUM VP 통합 제어 시스템은 재생 가능 에너지 분야에서 최적의 생산성과 수익성을 위한 중단 없는  "Uptime 전용"시스템 성능을 보장합니다.

* Uptime : 가동시간


FAST/TOOLS SCADA

FAST/TOOLS 패키지는 신재생 에너지 애플리케이션의 성능을 최적화합니다. 고가용성 및 성능을 보장하고 온라인 구성을 지원합니다.



Customer Challenge

석탄 야적장, 변속기 및 기타 시설의 화재 사고 예방

Solution

Yokogawa에서 제공하는 분산형 온도 센서 (DTS)는 화재 감지, 누설/막힘 감지, 냉(Cold) 스팟 모니터링 및 시설 예방 유지 보수에 기여합니다.

Enabling Technologies

Distributed Temperature Sensor (DTS)

Yokogawa DTSX200은 갭리스 (gapless) LNG 누출 탐지 모니터링을 가능하게 합니다.



Coal/Oil/Gas fired Power Generation Process

석탄/석유/가스 발전은 다음과 같은 제어 및 최적화가 필요합니다.
장치 제어 : 보일러/버너 관리/터빈/BOP/가스 탈황/비상 정지
플랜트 최적화 : 공장 정보 관리/운영 효율성 향상 지원/경보 관리

Image Zoom



Overview:
  • 2009 PACE Zenith joint winner project
  • Reduced operating and maintenance costs
  • Increased power generation
  • Improved plant operating flexibility
  • Modernized, screen-based operations
  • Reduced emissions
Overview:
  • Steady power supply and safe operation thanks to reliable Yokogawa CENTUM CS 3000 and transmitters
  • Environmentally optimized operation by fine-tuned boiler combustion control and strict monitoring and control of CO, NOx and SOx in flue gas and pH of water from cooling towers
  • Full replica plant simulator for effective plant operation and engineering staff training
  • Annual maintenance contract
Overview:
  • Modernized controls, assured stable power supply to Ulaanbaatar by a highly reliable, expandable distributed control system
  • Fully automated boiler, burner, balance-of-plant operations
  • Power plant simulator for efficient DCS operator training
Overview:
  • Yokogawa's integrated solutions control FGD processes at Romania's largest power plant
  • SO2 and dust emissions are controlled within the EU environmental standards
Overview:

"Installing the Yokogawa TDL improved our capability to optimize urea injection for the SNCR. The monitors provided more reliability and accuracy, in a harsh environment, than the previous monitors."

Overview:
  • Replacement of legacy control system by CENTUM CS 3000
  • Replacement of 4 – 20 mA protocol to FOUNDATION fieldbus™
Overview:

Eraring Power Station, located just north of Sydney, is one of the largest power stations in Australia, comprising four 660MW coal-fired units. The power station has operated reliably since 1981. To ensure continued reliability for the next few decades, Eraring Energy, the owner of the power plant, decided to replace the original hard-wired control equipment with a modern integrated control and monitoring system (ICMS).

Overview:

At the age of approximately 30 years the plant underwent $A 72 million technology upgrade in 2001, to improve operating reliability and performance. Macquarie Generation, Yokogawa Australia and Ralph M Lee concluded an alliance agreement to supply and install the replacement control system at Liddell.

Overview:

The customer has successfully brought online a greenfield 800 MW supercritical power plant, using a Yokogawa full-replica plant simulator to ensure a fast and smooth plant commissioning process.

Overview:

The CENTUM CS 3000 / UOI was selected for this project. The control platform in the UOI is the GE Fanuc CIMPLICITY Human Machine Interface (HMI) system, which fully integrates the controls for the turbine and BOP auxiliaries and uses the same screens/formats at both the turbine and BOP HMI displays. The CIMPLICITY HMI used in the UOI is a SCADA based design that fully supports the customer's requirement for remote operation capability.

Overview:

The construction of Tuas Power Station started in the mid 1990s. The plant has steadily grown to be a significant player in the competitive Singaporean electricity market. Stage One of Tuas Power Station is equipped with the country's largest steam generators which are capable of producing 600 MW each.

Overview:

Since entering commercial operation in 2000, the environmental control facilities at the Tachibanawan Thermal Power Station have been managed effectively by the CENTUM control system, achieving a stable electricity supply with minimal impact on the environment.

Overview:

The Bahia de Bizkaia Plant is one of the most significant power projects to be carried out in this region. The project has been led and financed by Ente Vasco de la Energia, Repsol-YPF, British Petroleum, and Iberdrole S.A., with the total investment coming to approximately 600 million euros.

Overview:

The Itoigawa Power Plant was constructed adjacent to a cement plant in Itoigawa City, Niigata Prefecture, and is operated by an IPP that supplies electricity to Tohoku Electric Power, one of Japan's major power companies. The use of a 149 MW coal-fired CFB boiler in this power plant is a first for an IPP in Japan, and this effectively reduces NOx emissions.

Overview:
  • Yokogawa’s CENTUM VP and full-replica simulator contribute to the stable operation of this supercritical coal-fired plant.
  • The two units have been operating successfully since start-up.
Overview:
  • Yokogawa supplied an integrated boiler and turbine control, monitoring and protection system for each of the four generating units in a coal-fired power plant in Australia.
  • Yokogawa also delivered two high fidelity operator training simulators for this plant.
Overview:

Measures temperature and vibration of the turbine for rapid identification of abnormalities.

Overview:

Steam is still one of the most popular methods of providing an energy source to a process and its associated operations. The more accurate and reliable measurements that are made, the more informed decisions can be taken that affect costs and product quality.

Application Note
Overview:

Level transmitter configuration can be very time consuming. DPharp transmitters with advanced software functionality eliminate this time consuming task. With maintenance shops getting smaller, finding equipment that allows us to do more with less becomes a priority.

Application Note
Overview:

One of the most common applications for differential pressure transmitters is flow measurement. DPharp differential pressure transmitters have some unique signal conditioning features to eliminate instability at low flow rates.

Application Note
Overview:

Recently, air pollution legislations such as the Clean Air Act to reduce the amount of air pollution are increasing worldwide. The Clean Air Act address numerous air quality problems. One of these problems is acid rain caused by sulfur dioxide and nitrogen oxide emissions from fossil-fueled power plants and other industrial and transportation sources.

Overview:

In flue gas desulfurization systems that use magnesium hydroxide (Mg(OH)2) slurry, the consumption of the desulfurization agent (Mg(OH)2) is controlled by using online pH analyzers. A great concern in the pH measurement is heavy staining of the pH electrodes by the Mg(OH)2 slurry. To ensure accurate measurement, frequent cleaning of the electrodes with an acid is required, adding to both maintenance workload and cost.

Industry:Chemical, Power

Overview:

Seawater leak detection is the post-condensation water quality management processes. Damage to the ion exchange resin, which deionizes the supplied water, is also monitored during this process, and both of these applications are executed by a conductivity analyzer.

Overview:

Cogeneration systems that improve overall energy utilization by simultaneously generating electricity and heat from a single fuel source have been in the news a lot recently. Distributed generation equipment, a type of cogeneration system, is driven by a gas or diesel engine. Advantages of the gas engine, which is widely used, include high thermal efficiency and secure fuel supply.

Overview:

A package boiler operates more efficiently if the oxygen concentration in the flue gas is reduced. Optimizing air intake for boiler operation requires continuous measurement of the oxygen concentration in the flue gas.

Overview:

The discharge of improperly treated industrial chemicals and fuel gas can have a major impact on the environment, posing a serious threat to public health. Concurrent with the global growth of manufacturing operations to keep pace with market trends, many countries are taking measures to deal with environmental problems.

Overview:

Exhaust gases from a pulverized coal-fired boiler contain a large quantity of dust. To prevent this from being released into the atmosphere, an electrostatic precipitator (ESP) is used to remove the dust. To maintain the collection efficiency of an ESP and prevent dust emissions, abnormalities must be detected immediately.

Overview:

Yokogawa ensures a reliable heat and CO2 transfer system by using the standard GPRS protocol. The exclusive use of webbased technology enables the market gardeners to go online to order heat and CO2 and view information.

Overview:

This paper introduces the ADMAG AXR 2-wire magnetic flomwmeter solution for chilled water application in air conditioning unit.

Overview:

The ammonia (NH3) gas is injected to remove the NOx and thus reduce the NOx concentration in the stack flue gas. With conventional NH3 analyzers that perform measurements indirectly, NH3 concentrations are obtained through a sampling system. Therefore, there are problems with the maintenance and running costs of the sampling system, and time delays in measurement. The TDLS200 Laser Analyzer is the solution to all these problems.

Overview:

Industrial Combustion sources such as thermal cracking furnaces and, process heaters play a critical role in the process industry. Because the large amount of fuel such as gas or fuel oil which is consumed in these processes, their combustion efficiency directly affects the performance and operational costs of the production facilities.

Overview:

In a pulverized coal-fired boiler of a large power plant, an oxygen analyzer is essential for combustion control. A pulverized coal-fired boiler is an industrial or utility boiler that generates thermal energy by burning pulverized coal (also known as powdered coal or coal dust).

Overview:

Floating-point format calculations have enabled physical quantities (in engineering units) to be used in calculations.

Overview:

Best Solution for Automatic Boiler Control
Sensors and controllers for the efficiency and environmental performance

Overview:

The MW100 Data Acquisition Unit comes with many networking functions, including a diverse range of functions for remote monitoring.

Overview:

The MW100 allows logging via communication of devices that support MODBUS servers. With no analog module required, costs can be reduced, and errors during A/D conversion are eliminated.

Overview:

The MX100/MW100 is best suited for applications where the voltage of each cell in fuel cells, secondary batteries and electrolyzers is measured.

Application Note
Overview:

Yokogawa Power Monitors measure energy in plants, such as power, current, voltage, power factor, etc. In addition, data acquisition for power, vapor, fuel, water, air, etc, and data monitoring using viewer software, are performed by connecting to the MW100 data acquisition unit.

Overview:

A belt conveyor fire detection solution employing the DTSX distributed optical fiber temperature sensor can greatly reduce crises that can threaten a company's survival.

Overview:

With industrial and economic development comes increasingly large and advanced power plants and factories. Nevertheless, we find many cases where the original cables, cable tunnels, and other components of the power infrastructure have languished under continuous operation.

Overview:

Industrial Combustion sources such as thermal cracking furnaces and, process heaters play a critical role in the process industry.

Overview:

In limestone-gypsum flue gas desulfurization systems, the consumption of a desulfurization agent (lime) is controlled using online pH analyzers.

Overview:
  • Wireless temperature measurement gateway x1, transmitter (YTA) x1: on a buoy
  • High quality wireless communication was confirmed.
    Note: as the PER may increase due to antenna direction changes on the buoy, a repeater on the buoy is recommended
Overview:

Current trend for increasing mercury awareness throughout the public sector has caused the government to take action. Recently, the Environmental Protection Agency (EPA) has focused their efforts on controlling mercury levels produced in various coal fired power plants. Based on information from several case studies, the EPA developed the Mercury and Air Toxics Standards to cut back mercury emissions. The most popular technology utilized by coal plants to meet the new standards is a scrubber which cleans the off gas from the combustion process. ORP sensors can further monitor the effluent from these scrubbers to ensure optimal mercury emission levels are achieved. By closely monitoring the mercury concentrations in the effluent, plant managers will be able to easily confirm their plants are meeting the EPA's standards.

Overview:

The worlds of process automation and production management have been converging for some time. What once used to be islands of automation and production management functionality connected through highly proprietary integration schemes that were costly to maintain have developed into integrated platforms that provide seamless data exchange between the world of automation and the plant floor, the functions of production and operations management, and integration with business level systems.

Overview:

Power plants concerned with lowering NOx emissions are making tremendous changes to accommodate EPA regulatory requirements. A substantial number of these changes include the expansion and upgrade of the plant combustion oxygen measurement equipment. There is a striking relationship between the number of NOx reductions projects and the sales quantity of insitu oxygen detectors.

Overview:

From engineering to installation, commissioning, operations, and maintenance, FOUNDATION fieldbus offer significant cost reductions of 30 percent or more versus conventional analog systems. Many of these cost reductions come from the advanced functions that fieldbus offers versus analog technology.

Overview:

The automation suppliers that will be successful in the long term will be those that effectively address application or industry specific problems for end users with a value proposition that cannot be ignored. These problems exist throughout the process industries today, and they won't be solved by simply offering a product, but through a combination of hardware, software, services, application expertise, and knowledge.

Overview:

In ARC's view, customers need a compelling business value proposition to justify investment in any kind of automation. Vigilance and VigilantPlant were created with this in mind. Yokogawa's vision with VigilantPlant is to create an environment where plant personnel and operators are well informed, alert, and ready to take action.

Overview:

Yokogawa has come a long way in making its message clear to the world of process automation. Last year, the company embarked on a full-scale global marketing campaign to make customers aware of the company's focus on system reliability, security, dependability, and robustness. Dubbed "Vigilance", the campaign created a unified message for the company and greatly helped expand awareness of the Yokogawa brand and corporate philosophy.

Overview:

Process automation end users are under more pressure than ever to do more with less. The current economic climate means that many automation capital projects are on hold. With capital budgets tighter than ever, users instead focus on operational budgets (where cost cutting is also a key concern), or on automation investments with a very rapid return on investment.

Overview:

In today's dynamic industrial marketplace, the only constant is change. Raw material costs, energy costs, market demands, environmental and safety regulations, technology, and even the nature of the labor force itself are constantly changing, and not always in predictable directions.
