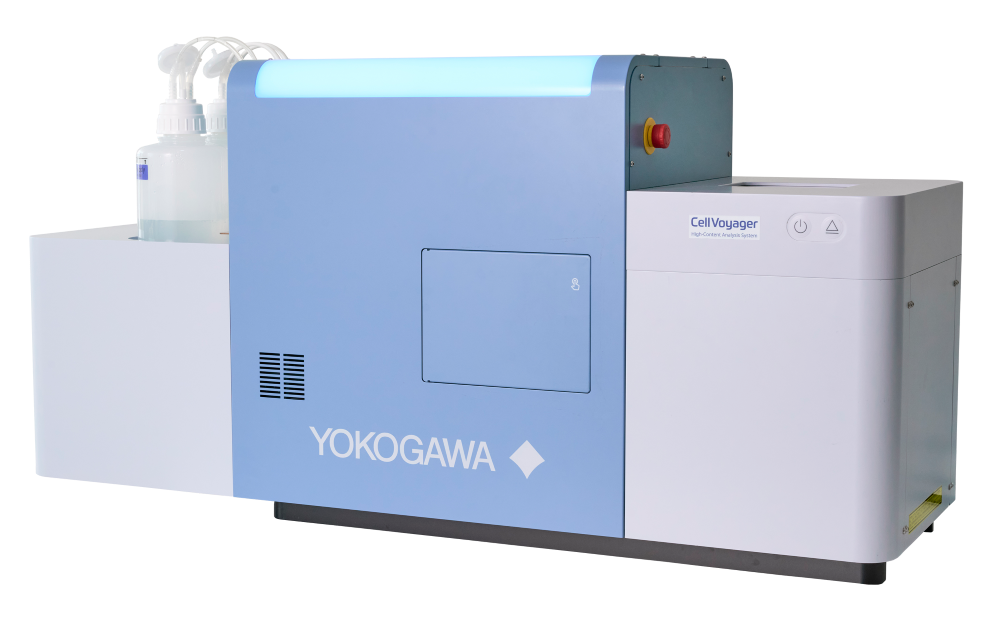

CellVoyager HCA 분석 시스템 CQ3000은 세포를 배양하면서 고속으로 고해상도 3D 이미지를 획득할 수 있습니다.
CQ3000은 용도에 따라 옵션을 조합하여 목적에 맞는 시스템을 제공할 수 있습니다.
CQ3000 System Highlights
Excitation laser wavelength |
405nm、488nm、561nm、640nm |
Objective lens | 2x、4x 、10x、20x 、40x、60x (Dry 、Water immersion、Long working distance) |
Camera | High-sensitivity sCMOS camera (up to 2 units) |
Autofocus | Laser autofocus |
Observation method | Confocal image, Wide-field image*1 |
Software (Option) |
High Content Analysis Software CellPathfinder |
*1 Uniformizer 옵션을 선택한 경우.
실험실에 최적화된 고성능 HCA를 만나보세요!
고품질 이미징을 위한 High NA Immersion Lens, 전체 FOV의 균일하고 효율적인 이미징을 위한 Universalizer, 두 채널의 동시 이미징을 위한 보조 카메라는 용도에 따라 선택할 수 있습니다.
수많은 정보를 담고 있는 고해상도 이미지
- Water immersion 렌즈는 높은 SNR로 선명한 이미지를 포착합니다.
- 고배율을 통한 세밀한 관찰은 물론이고 high-NA 렌즈 적용으로 이전보다 작은 FOV에서도 영상을 정확하게 분석할 수 있습니다.
자체 개발한 고NA 20x water immersion 렌즈는 20x 건식 렌즈보다 높은 이미지 해상도를 제공합니다. 효율적인 이미지 분석을 위해 40x 및 60x를 사용할 수도 있습니다.
Imaging example for a spheroid
20x WI lens allows for deeper imaging with high SNR.
간단한 조작을 통한 높은 처리량의 이미징
두 번째 카메라 옵션 사용 시 처리량 비교.
두 가지 색상을 동시에 감지하여 획득 시간이 단축됩니다.
또한, 저배율 이미징 등 공초점 성능이 불필요한 경우 광시야 이미징은 노출 시간을 더욱 단축할 수 있습니다.
Yokogawa의 핵심은 라이브 셀 이미징입니다
CQ3000은 기존 CO2 인큐베이터와 동일한 환경을 유지하면서 배양과 이미징을 실현합니다.
이부분은 환경 친화적일 뿐만 아니라 세포에 미치는 영향도 최소화 시킬 수 있습니다.
Details
Analysis software: High content analysis system CellPathfinder(Option)
직관적이고 사용하기 쉬운 인터페이스는 사용자가 다양한 각도에서 수천 개의 이미지 데이터를 분석하고 수많은 그래프 유형을 생성하여 결과를 시각화 할 수 있도록 합니다.
또한, Machine Learning 과 Deep Learning 기능을 통해 표적 인식 능력을 획기적으로 증대시킵니다. 이는 또한 3D 배양 및 live-cell 이미징 데이터 분석과 같이 복잡하고 난이도가 높은 분석에 이상적입니다.
CellPathfinder software 소프트웨어는 HCA를 위한 강력한 도구입니다.
Machine learning
소프트웨어는 사용자가 수집한 샘플 개체의 특징을 학습합니다.
3D analysis
Label-free analysis
광시야*1 기능은 염색되지 않은 명시야 샘플을 분석하는 강력한 도구입니다.
*1 Uniformizer 옵션을 선택한 경우.
Specifications
Optics | Microlens enhanced dual wide Nipkow disk confocal, Transmitted illumination |
---|---|
Fluorescence |
Laser: Up to 4 colors Standard: 488 nm, 561 nm Option: 405 nm, 640 nm |
Transmitted illumination | Bright-field LED light |
Camera | High-sensitivity sCMOS Max. 2 units, simultaneous excitation of 2 wavelengths Number of effective pixels: 2000 x 2000 pixels Field of view size: 13.0 x 13.0 mm |
Objective lens | Max. 6 lenses (Included max. 2 water immersion lenses) Dry: 2x, 4x, 10x, 20x, 40x , 60x Long working distance: 20x, 40x Water immersion: 20x, 40x, 60x |
Water supply function for immersion lens | Automatic supply |
Flat-top beam shaper(Option) | Uniformizer |
Sample vessel | Microplate (6, 12, 24, 48, 96, 384, 1536 wells), glass slides*2, cover glass chamber*2, 35 mm dish*2 |
Stage incubator | Temperature control range 35 ~ 39 °C Settable temperature resolution: 0.1 °C Time stability : ±0.2 °C Spatial stability :±1 °C (at an ambient temperature of 21 ~ 25 °C) Humidity holding Automatic water supply function for incubator |
Autofocus | Laser autofocus |
Analysis software(CellPathfinder) | Granule analysis, Neurite analysis, Nuclear morphology analysis, Nuclear translocation analysis, Membrane translocation analysis, Machine learning, Label-free analysis, 3D analysis, Texture analysis, Deep Learning, etc. |
Size・Weight | Main unit W1031 mm x D401 mm x H600 m 84 kg Main unit (with Uniformizer or 2nd camera) W1177 mm x D401 mm x H600 mm 102 kg Utility box W275 mm x D432 mm x H298 mm 17.6 kg Gas mixer W275 mm x D432 mm x H298 mm 9.3 kg Workstation W176.5 mm x D452.1 mm x H417.9 mm 21.7 kg |
Operating environment | 15 ~ 30°C, 30 ~ 70% RH, no condensation |
Power consumption | Main unit and Utility box : 100 - 240 VAC, 400 VAMax Gas Mixer : 100 - 240 VAC, 60 VAMax Workstation : 100 - 240 VAC, 750 VAMax |
*1 Can be acquired when Uniformizer option is selected.
*2 Sample Holder option is needed.
