Unleash Precision with the YPP6400

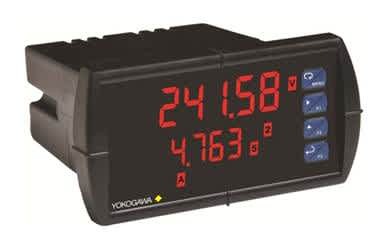

The Yokogawa YPP6400 AC/DC Voltage & Current Meter is a versatile, easy-to-use digital panel meter designed for precise measurement of direct voltage (0-300 VAC/VDC) and current (0-5 AAC/ADC), or outputs from voltage shunts and current transformers. With a math channel for apparent power calculation and a dual-line 6-digit display, it’s perfect for monitoring generators, transformers, and lighting systems in industrial settings. Featuring Modbus RTU communication and a rugged NEMA 4X design, the YPP6400 ensures reliable performance in demanding environments.
What is a Current and Voltage Meter?
The high voltage and current input meter measures direct voltage and current, or voltage shunt and current transformers output.
Industrial Applications
The YPP6400 delivers accurate voltage and current monitoring across a range of industrial applications.
|
|
Details
Key Features & Benefits
Dual Input Capability
Measures 0-300 VAC/VDC and 0-5 AAC/ADC simultaneously.
Apparent Power Calculation
Math channel P computes apparent power from voltage and current inputs.
Dual-Line Display
Large 6-digit, sunlight-readable or standard display (0.60" & 0.46"), shows two parameters at once.
Modbus RTU
Seamless integration with USB, RS-232, and RS-485 communication options.
Rugged Design
NEMA 4X, IP65 front for durability in harsh environments.
Free Software
PROPLUS software for easy operation, monitoring, and programming.
Technical Specifications
- Inputs: 0-300 VAC/VDC, 0-5 AAC/ADC
- Display: Dual-line 6-digit (0.60" & 0.46"), standard or sunlight-readable
- Power Supply: Universal 85-265 VAC or 12/24 VDC
- Output Options: 2 or 4 relays, isolated 4-20 mA
- Communication: USB, RS-232, RS-485 with Modbus RTU
- Enclosure: NEMA 4X, IP65 front
- Additional Features: Apparent power calculation, programmable units and tags, function keys
Standard Display Options
| Product | Input - Field Selectable | Output | Part Number |
|---|---|---|---|
| AC/DC Voltage & Current Meter | High Voltage - Current Meter | None | YPP6400-7R0 |
| AC/DC Voltage & Current Meter | High Voltage - Current Meter | 2 Relays | YPP6400-7R2 |
| AC/DC Voltage & Current Meter | High Voltage - Current Meter | 4-20mA Output | YPP6400-7R3 |
| AC/DC Voltage & Current Meter | High Voltage - Current Meter | 4 Relays | YPP6400-7R4 |
| AC/DC Voltage & Current Meter | High Voltage - Current Meter | 2 Relays & 4-20mA Output | YPP6400-7R5 |
| AC/DC Voltage & Current Meter | High Voltage - Current Meter | 4 Relays & 4-20mA Output | YPP6400-7R7 |
SunBright Readable Display Options
| Product | Input - Field Selectable (Two Input) | Output | Part Number |
|---|---|---|---|
| AC/DC Voltage & Current - SunBright Readable Display | High Voltage - Current Meter | None | YPP6400-7H0 |
| AC/DC Voltage & Current - SunBright Readable Display | High Voltage - Current Meter | 2 Relays | YPP6400-7H2 |
| AC/DC Voltage & Current - SunBright Readable Display | High Voltage - Current Meter | 4-20mA Output | YPP6400-7H3 |
| AC/DC Voltage & Current - SunBright Readable Display | High Voltage - Current Meter | 4 Relays | YPP6400-7H4 |
| AC/DC Voltage & Current - SunBright Readable Display | High Voltage - Current Meter | 2 Relays & 4-20mA Output | YPP6400-7H5 |
| AC/DC Voltage & Current - SunBright Readable Display | High Voltage - Current Meter | 4 Relays & 4-20mA Output | YPP6400-7H7 |
Downloads
Brochures
- YPP6400 Bulletin (5.5 MB)
- PROPLUS Series Digital Panel Meters & Controllers (1.4 MB)
- PROPLUS Series Presentation (5.5 MB)
- PROPLUS Series Register Tables (661 KB)
Instruction Manuals
- YPP6400 Instruction Manual (3.0 MB)
Software
- PROPLUS Series Software Guide (395 KB)
Technical Information
- PROPLUS Series Safety Interlock (187 KB)
