Yokogawa has been providing control solutions for sustainable water production by developing more energy-efficient technology, helping to reduce the carbon footprint of operations, and building rock-solid products that protect the environment from contaminants. With our leading-edge technology and extensive application know-how, we work with you to provide sustainable water solutions that boost your business and add high value throughout the plant lifecycle. Our technology and products improve the performance of plants and ensure that they can operate competitively in today's water markets, and also reduce their running costs. Yokogawa supports a wide range of water control applications in both the municipal and industrial water markets.
Yokogawa provides optimum solutions to improve the reliable operation of water treatment plants. These solutions include sophisticated technologies, unsurpassed product quality, and extensive application know-how throughout the lifecycle.

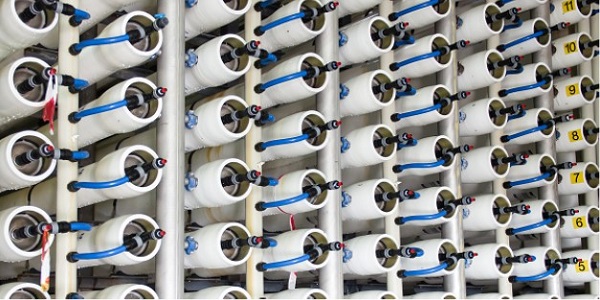

The demand for seawater desalination as a stable water resource has been increasing. Yokogawa has a wealth of experience in controlling various types of desalination plant such as reverse osmosis (RO), multi-stage flash (MSF) and multi-effect distillation (MED). Yokogawa provides advanced solutions such as operator training simulators for stable plant operation.
Water pipelines play an important role by transporting water from water sources, particularly in dry areas undergoing rapid industrialization and population growth. Yokogawa provides pipeline control solutions over distances as long as 600 km.

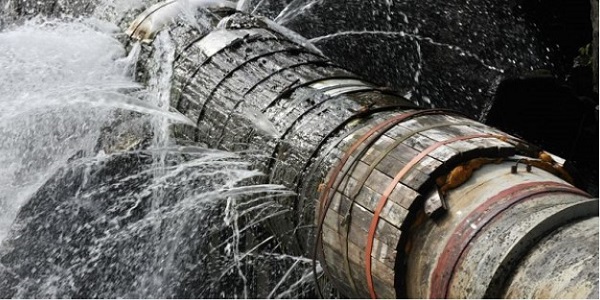

One critical issue for a water distribution network is water leakage from the piping. Yokogawa provides water loss management solutions based on the International Water Association (IWA) methodology to minimize losses from the network to reduce non-revenue water.
Wastewater treatment plants involve many pieces of equipment such as motors, pumps and blowers, which makes it important to reduce their electricity consumption and save running costs. Yokogawa provides optimum control solutions with digital technologies to improve energy efficiency.

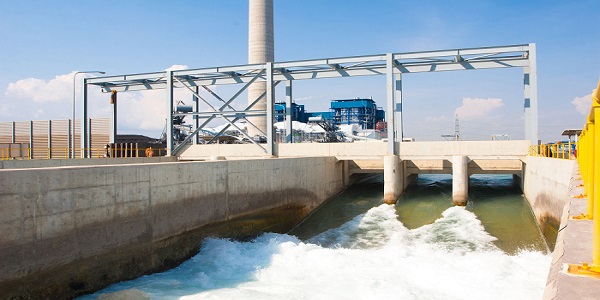

Industrial water is used in all industrial plants such as power generation stations, refineries and petrochemical plants. Yokogawa’s single control platform handles all water and wastewater control processing integrated with the main process.
Securing the Stable and Reliable Operation in Your Entire Process
Investing in Yokogawa industrial automation is only the start of step-change improvements to your plant’s efficiency and productivity. Yokogawa’s control and instrumentation solutions are critical elements of a water plant’s operation securing the stable and reliable operation in your entire process.
Management Solution Packages
Yokogawa’s management solution packages; “Exapilot” operation efficiency improvement package, “Exaplog” event analysis package, “Exaquantum” plant information management systems, “PRM” plant resource manager, water loss management system, etc., bring you benefits for safer, more stable, optimized, and efficient plant operations in association with the water plant operations.
Full-scale Industrial Plant Control & Operation
Industrial water suppliers are nowadays expanding its control scope not only industrial water supply but also steam, electricity, wastewater treatment and recycle water in order to meet the requirements of industry utility demands.
With its state-of-the-art architecture, the highly reliable CENTUM VP is a core platform of our comprehensive DCS solutions that make it possible for monitoring and controlling the entire Industry multi-utility plant.
Wide Area SCADA/PLC Control Solutions
STARDOM and FA-M3V are open and powerful PLC/RTU systems and enable you to control a variety of water and wastewater facilities distributed over a wide area.
STARDOM and FA-M3V bring you maximum return on your facilities in high availability, large scalability and efficient production in combination with SCADA system “FAST/TOOLS “and Yokogawa's management solution packages.
Evolving Your Plant with Wireless Innovation
Yokogawa’s intelligent field devices a best-in-class and reliable digital solution meets present and future needs in the water industry by providing leading, reliable, interoperable solutions that simplify, maintain and manage the digital life cycle. The Field Digital Solutions ensure true interoperability achieving along with the
benefits of advanced diagnostics in devices such as our EJX series of pressure transmitters.
Liquid Analyzers and Recorders for Reducing Total Cost of Ownership
Yokogawa has provided a wide range of liquid analyzers and recorders with high quality, accurate and reliable products. All of these products are designed
to give you maximum accuracy, stability, safety and reliability, with the objective of reducing your total cost of ownership.
