The EJX930A multivariable pressure transmitter delivers precise measurements of differential pressure, static pressure, and process temperature. It features multi-sensing technology with a single-crystal silicon resonant sensor and covers multiple protocols, including HART, FOUNDATION Fieldbus, and RS485 Modbus.

  • Utilizes DPHarp sensor technology
  • Factory-programming available to specific primary elements
  • Available in Mass Flow and Multi-Sensing Versions
Mass Flow Version Multi-Sensing Version
  • ±1.0% mass flow rate accuracy
  • Fully compensated mass flow
  • Mass Flow Totalizer with ±1.0% accuracy
  • Pulse / Contact output
  • 4,500 psi MWP
  • TUV SIL 2/3 Certification
  • ±0.04% Differential Pressure Accuracy
  • ±0.1% Static Pressure Accuracy
  • 4,500 psi MWP
  • TUV SIL 2/3 Certification

What is a Multivariable Transmitter?

Multivariable transmitters measure multiple parameters in industrial process monitoring and control, including differential pressure, static pressure, mass flow, and process temperature.

Multivariable transmitter working principle: the transmitter encapsulates differential/static pressure and process temperature sensors and a mass flow indicator, sending readings to a computer-based monitoring and control panel.


The EJX930A with DPharp digital sensor offers the performance needed to run your operations at peak performance. This ensures on-spec product, reduced waste, and improved yield, helping you increase profitability.

 Dynamic Compensation

All flow factors for mass flow calculation are dynamically compensated to an optimum value. The flow factors that are automatically compensated are: discharge coefficient, diameter of primary device, upstream internal pipe diameter, gas expansion factor, density, and viscosity.

Digital Performance

The DPharp sensor directly outputs a digital signal, eliminating the need for analog to digital conversion and improving performance.


Long-term Stability

When installed in the field, DP transmitters are subjected to continuous variations in pressure and temperature which will affect the accuracy. The performance may drift over time and is quantified using long term stability. There is unconditional guarantee of long-term stability under the complete range of operating conditions.

Standard Diagnostics


  • 40 self-diagnostic checks to ensure that everything is running smoothly within the transmitter.
  • The transmitter features a patented back-check technology that reverse checks all calculations in real-time.
  • The DPHarp sensor is an active sensor, constantly supplying a signal even when the process has not changed. If the signal is lost from the sensor, the transmitter knows there is an issue.


Predictive impulse line blocking and heat tracing diagnostics anticipate whether troubleshooting is needed.

Local Indicator

Easy to read indicator provides all the information you need. The indicator can display any of the variables measured (DP, SP, External Temperature); alarm codes with short text; and a sweeping bar graph to give a graphical representation of the process. Fully programmable, the indicator is customizable for your needs.



The EJX930A reduces total cost of ownership by having safety as standard, extending calibration intervals, and utilizing a common communication platform for all protocols.

Safety as Standard

All Yokogawa transmitters:

  • Are designed and certified to IEC61508:2010 Parts 1 through 7 and IEC61511:2004 Parts 1 through 3 by Exida® and TÜV Rheinland®
  • Are certified for single transmitter use in SIL2 safety applications and dual transmitter use in SIL3 safety applications
  • Can be used for both process control and safety applications

Extended Calibration Check Intervals

When devices are initially installed, they operate at peak performance, but what happens after they are running under various process conditions and poorly managed or maintained?

Changing operating conditions can cause transmitters to drift to the point where they are no longer able to make accurate measurements for the process loop they are installed in, resulting in poor quality or an impact on product yields. This requires a calibration check interval to ensure you’re operating within desired error limits.

EJX-A series transmitters have a long-term stability of ±0.1% per 15 years under all operational conditions, reducing calibration frequencies and maintenance costs.

EJX930A Communication Protocols

HART Protocol

  • 1.0% mass flow rate accuracy over 1:10 flow range
  • Simultaneous dual output of 4 to 20mA and pulse signals
  • HART protocol revision selectable from HART 5 or HART 7
  • SIL 2 certified standard

FOUNDATION Fieldbus Protocol

  • 1.0% mass flow rate accuracy over 1:10 flow range
  • Various function blocks available: 5 AIs, AR, IT, SC, and IS standard
  • PID is an optional feature
  • Cyclically displays up to 10 values

RS485 Modbus Protocol

  • Provides easy multi-sensing data transmission to flow computers
  • Cyclically display up to 16 variables including RTU management data
  • Up to 32 transmitters can be connected by multi-drop communication
  • 32 character tag and squawk are supported for easy identification of transmitters

International Certifications

With the rapid globalization of markets, numerous international standards and approvals are becoming necessary. Yokogawa pressure transmitters have acquired various international certifications including FM, CSA, ATEX, IECEx, INMETRO, KOSHA, EAC, and NEPSI.

Agency Approvals

The proven DPharp technology of the EJX930A increases plant availability with its advanced diagnostics and quicker resolution of maintenance issues through multiple communication options. Verified by independent third parties around the world, our transmitter provides superior reliability and performance.


Rugged Construction

Proven Technology

Yokogawa’s DPharp sensor technology was developed in the early 1990s, and today, over 11 million Yokogawa transmitters and calibrators are installed using this technology.

Independent Third Party Verification

The performance and reliability of Yokogawa’s EJX-A transmitter series have been verified by independent third parties from around the world. From Safety System SIL rating to general performance evaluations, the EJX-A series has met or surpassed every test that it has been given.

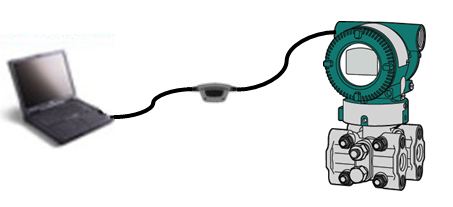

FieldMate FlowNavigator™

FieldMate FlowNavigator™ is a PC-based software that is exclusively designed for use with the EJX910A / EJA930A. It uses FDT/DTM standards to enable users to configure mass flow and achieve accurate measurements with real-time full density compensation.




For Differential pressure transmitters, Yokogawa offers a complete line of IEC 61518 compliant 3-Valve and 5-Valve manifolds. Available in T-Style, H-Style, Wafer-Style, and Bottom Process Connection Style and can be ASME B31.1 (Power) Compliant, ISO 15848 Compliant, or TA-Luft Compliant.

Learn More

3rd Party RTD Sensors and Thermowells

TSD (1)


Direct-immersion RTD sensor (Thermowells Available)

How To Calibrate Multivariable Transmitter

From Yokogawa Multivariable Transmitter EJX930 Manual (Basic Mode)

In the case of Basic mode, flow operation and density compensation are performed conventionally with the flow factors manually input.
The flow rate is calculated using the constant flowfactor.
Density is compensated as follows according to the selection of gas or liquid.
Gas: Compensation as ideal gas by temperature and pressure.
Liquid: Compensation by temperature.
Select the operational expression according to the fluid type and unit category, as shown in Table 2.1.



Yokogawa DPharp EJA/EJX Pressure transmitters do not need frequent re-zeroing due to superior long term stability, it contributes to reduce maintenance time.

EJX910A/EJX930A EJX910A The EJX910A is designed for a maximum pressure limit of 3600 psi. EJX930A The EJX930A is designed for a maximum pressure limit of 4500 psi. Since this transmitter is designed for higher pressure, the low differential pr...
Edition 02
Primary Elements A Primary Element is part of a differential pressure flow system. It produces a DP for the secondary element (an EJX910A or EJX930A) to measure. The EJX910A/EJX930A supports orifice plates, a nozzle, venturi, averaging pi...
Edition 02
