Электромагнитные расходомеры

История электромагнитных расходомеров компании YOKOGAWA

История электромагнитных расходомеров YOKOGAWA насчитывает более полувека. В каждую эпоху мы добавляли инновационные технические характеристики и всегда лидировали в отрасли. Последовательная политика электромагнитных расходомеров YOKOGAWA — это высокая производительность и высокое качество.

Первый в мире метод двухчастотного возбуждения, примененный в серии ADMAG AM, анонсированной в 1988 году, поднял стабильность измерений электромагнитных расходомеров на более высокий уровень. Электромагнитный расходомер емкостного типа серии ADMAG CA сделал возможным измерение текучих сред с низкой проводимостью и изолирующих клейких сред. Серия ADMAG AXR реализовала ошеломляюще высокую производительность при ограниченном напряжении питания по двум проводам.

А теперь на свет появилась серия ADMAG TI, в которой принята концепция "Total Insight" (Полное понимание) и полностью поддерживается жизненный цикл продукта.

New Series ADMAG Total Insight(ADMAG TI) All Product

Image Zoom



Общие сведения

  • Продукты ADMAG Total Insight могут измерять расход с высокой точностью.
    • Стандартная версия достигает точности ± 0,3 % (от значения показаний).
    • Поддержка решения проблем с помощью большого количества диагностических функций.
    • Является преемником ADMAG AXF и может быть заменен.
      *Для некоторых версий мы прекратили продажи.

  • ADMAG CA может измерять скорость потока жидкости с низкой проводимостью и высокой концентрацией взвесей.
    • Скорость потока может быть измерена начиная от проводимости 0,01 мкСм/см.
    • Электрод несмачиваемого типа обеспечивает стабильное измерение расхода даже при образовании отложений на измерительной трубке.
    • Электрический шум отсутствует, так как суспензия не соприкасается с электродом.

  • ADMAG AXR помогает снизить затраты на проводку и энергопотребление.
    • Двухпроводная система устраняет необходимость прокладки кабеля питания. Электропитание осуществляется через сигнальную проводку.
    • Обеспечивается низкое энергопотребление, что затруднительно при использовании 4-проводной системы.
    • Обеспечивается низкий уровень шума.



Типы рабочих сред

ADMAG Total Insight ADMAG CA ADMAG AXR ADMAG AXF

С низкой проводимостью

B O B B

Агрессивные

O O O O

Со взвесями

O O B O

Клейкие

B O B B

O: Применимы, B: Период применения может быть коротким



  ADMAG Total Insight ADMAG CA ADMAG AXR ADMAG AXF
Измеряемая
 проводимость

Выше 1 мкСим/см

Выше 0,01 мкСим/см

Выше 10 мкСим/см

Выше 1 мкСим/см

Тип электрода

Смачиваемый тип

Емкостный тип

Смачиваемый тип

Точность
 (считываемое значение)
ADMAG AXG
± 0.3 %
ADMAG AXW
± 0.35 %
± 0.5 %

Размер

ADMAG AXG
от 2,5 до 500 мм
ADMAG AXW
от 25 до 1800 мм

от 15 до 200 мм

от 25 до 200 мм

от 2,5 до 400 мм

Проводка

4-проводная

2-проводная

4-проводная

Протоколы
связи
HART 7, BRAIN, Modbus,
FOUNDATION Fieldbus, PROFIBUS PA
BRAIN HART 7/5, BRAIN HART 5, BRAIN,
FOUNDATION Fieldbus,
PROFIBUS PA
Диагностические
функции
Диагностика приложения
- Диагностика шума потока
- Диагностика низкой проводимости
- Диагностика ухудшения изоляции электрода
- Обнаружение налипания на электрод
- Проверка заполненности датчика
- Диагностика соединительных проводов

Функция проверки
- Встроенная/Стандартная
- Расширенная проверка

Отсутствует

Диагностика приложения
- Обнаружение налипания на  электрод
- Проверка заполненности датчика





Линейка

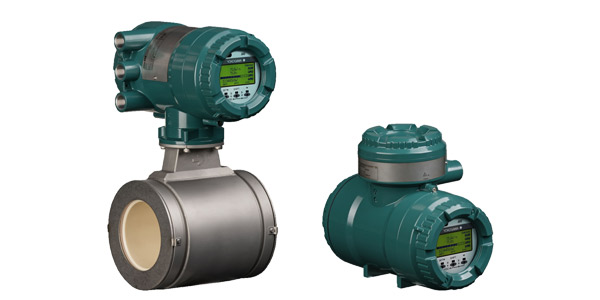

  • ADMAG Total Insight

    ADMAG Total Insight — это электромагнитный расходомер, основанный на концепции "Total Insight" (Полное понимание), которая обеспечивает решения и функции для проблем на каждом этапе жизненного цикла и способствует реализации снижения эксплуатационных затрат.

    Узнать больше

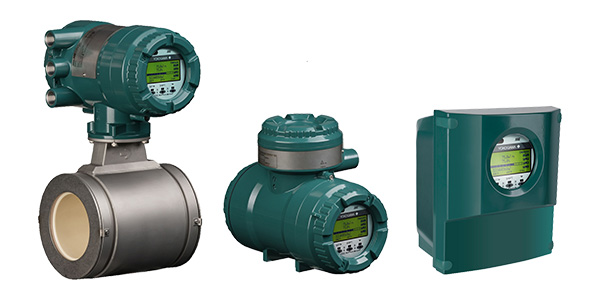

  • ADMAG AXG

    ADMAG TI серии AXG идеально подходит для промышленных технологических линий в таких отраслях как нефтегазовая/химическая/целлюлозно-бумажная/пищевая/производство безалкогольных напитков/металлургическая и горнодобывающая промышленность. Благодаря исключительной надежности, простоте эксплуатации и технического обслуживания, разработанный на основе десятилетий практического опыта AXG увеличит преимущества для пользователей при снижении общей стоимости владения.

    Узнать больше

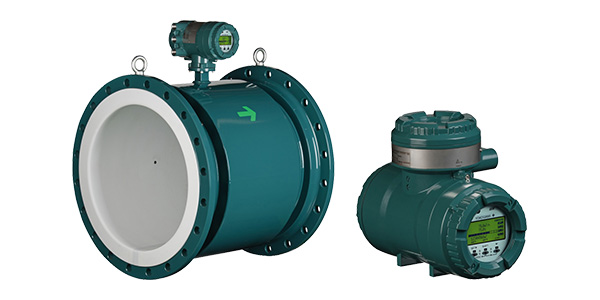

  • ADMAG AXW

    ADMAG TI серии AXW идеально подходит для промышленных технологических линий общего назначения, в водоснабжении и очистке сточных вод. Доступны размеры от 25 до 1800 мм. Кроме фторопласта ПТФЭ, доступны для выбора различные каучуковые футеровки.

    Узнать больше

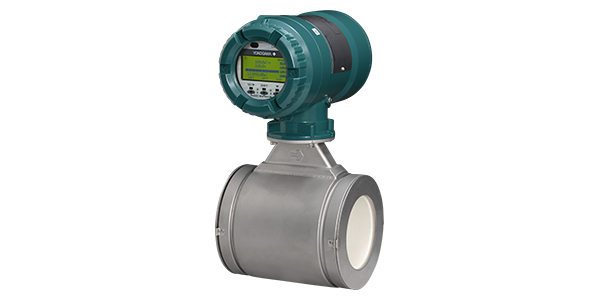

  • Электромагнитные расходомеры серии CA

    Серия расходомеров CA обещает стабильные результаты измерения даже в сложных средах, таких как шламосодержащие или адгезивные жидкости. Проектные решения, основанные на концепции Total Insight, повышают удобство эксплуатации и обслуживания для заказчиковСерия расходомеров CA обещает стабильные результаты измерения даже в сложных средах, таких как шламосодержащие или адгезивные жидкости. Проектные решения, основанные на концепции Total Insight, повышают удобство эксплуатации и обслуживания для заказчиков.

    Узнать больше
  • ADMAG CA

    The ADMAG CA magnetic flow meter adopts a system to pick up the electromotive force generated in a fluid by electrodes provided outside a ceramic pipe through the capacitance of the pipe. In addition, the flowmeter employs a prominent high-frequency excitation method that reduces flow noise in low conductivity fluid.

    Узнать больше

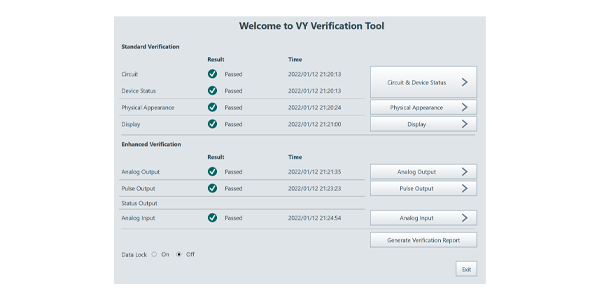

  • Инструмент тестирования магнитных расходомеров FSA130 / вихревых расходомеров

    Инструмент для тестирования магнитных / вихревых расходомеров обеспечивает функционал по сбору данных и созданию отчётности при работе с сериями магнитных расходомеров AXG семейства ADMAG TI (Total Insight) или серии AXWс протоколом связи HART, а также сериями вихревых расходомеров серии VY, также с протоколом HART.
    Подготовка FieldMate осуществляется Заказчиком. FSA130 это лицензионный ключ для активации инструмента тестирования.

    Узнать больше
  • ADMAG AXF

    Some specifications of this product was discontinued.

    The AXF magnetic flow meter is a sophisticated product with outstanding reliability and ease of operation, developed on the basis of decades of field experience. Based on FOUNDATION™ Fieldbus specifications, AXF Fieldbus Magnetic Flow meter models offer more flexible instrumentation.

    Узнать больше
  • AXFA11 Magnetic Flow Converter

    The AXFA11 magnetic converter has been developed based on Yokogawa's decades long experience in magnetic flowmeters. The AXFA11 continues the tradition of high quality and reliability that has become synonymous with the Yokogawa name and in addition features an even higher level of performance and increased functionality.

    Узнать больше
  • AXFA14G/C

    Some specifications of this product was discontinued.

    The AXFA14 magnetic flow meter remote converter is a sophisticated product with outstanding reliability and ease of operation, developed on the basis of decades of field proven experience.

    Узнать больше

Файлы

Обзор:
  • To bring the customer a real-time monitoring and management capability, Yokogawa installed STARDOM (FCJ), flow meters, and transmitters at key points throughout the distribution network.
  • The STARDOM FCJ controllers achieved an accurate water loss management system while keeping the running costs to a minimum.
Обзор:

Water Supply Treatment
FAST/TOOLS, STARDOM, Flowmeters, Liquid Analyzers

  • Bali's water treatment plant decided to employ the latest reliable control system in order to increase availability and quality of operation.
  • Centralized control system using FAST/TOOLS provides the sophisticated and flexible operation.
Application Note
Обзор:

With the high temperatures, pressures, and levels of dissolved organics that are encountered, the ADMAG AXF flow meter design is ideal for use in all phases of the chemical recovery process.

Обзор:

The pulp and paper industry has very aggressive and challenging applications for magmeters. There are corrosive Zone chemicals, high temperatures and pressures, and abrasive slurries. Yokogawa can provide the most reliable and accurate meters for each application.

Обзор:

Magnetic Flowmeter dual frequency excitation provides immunity to slurry noise by good stability and accuracy, determining the maintenance timing can be recognized by monitoring of electrodes.

Обзор:

Caustic soda and hydrochloric acid, produced in electrolyzer plants, are fundamental materials used in varieties of industries; chemicals, pharmaceuticals, petrol-chemicals, pulp and papers, etc. Profit is the result of the effective production with minimized running / maintenance cost. Proper control of the process brings you stabilized quality of products with the vast operational profit.

Отрасли:
Обзор:

The new digester magmeter enabled accurate and stable flow measurement of the black liquor circulation line, helping the user to stabilize the cooking degree that determines the quality of the chip digesting process.

Application Note
Обзор:

The ADMAG AXR is the world's first 2-wire magnetic flow meter which employs the unique "Dual Frequency Excitation Method," achieving 0.5% of rate of best-in-class accuracy and excellent stability for process measurement. In addition, the newly developed AXR key technologies," achieves the same level of noise immunity as 4-wire type under the fluid condition change and delivers enough performance to meet the requirement to apply in the control loop.

Application Note
Обзор:

Yokogawa's ceramic liner can offer the customer superior resistance to thermal shock and the failure that can occur due to liner cracking. This is due to Yokogawa's use of 99.9% pure Al2O3 for the liner.

Обзор:

Continuous technology improvement is ongoing in the pulp & paper industry to obtain the best possible performance. The improved plant performance translates to the higher quality improvement and lower cost, and simultaneously environmental friendly plant operation.

Обзор:

This paper introduces the ADMAG AXR 2-wire magnetic flomwmeter solution for dust collection water application of steel converter.

Отрасли:
Обзор:

The control of the world's water resource is arguably one of the most important issues. Water demand from industry and domestic users is set to rise throughout the industrialized world. Yokogawa has been applying minimized maintenance measurement systems.

Application Note
Обзор:

Recently, air pollution legislations such as the Clean Air Act to reduce the amount of air pollution are increasing worldwide. The Clean Air Act address numerous air quality problems. One of these problems is acid rain caused by sulfur dioxide and nitrogen oxide emissions from fossil-fueled power plants and other industrial and transportation sources.

Обзор:

The use of recycled oil as an energy source presents a significant processing problem. ADMAG CA has been shown to provide reliable and stable flow measurement of recycled oil containing water.

Yokogawa Technical Report
Обзор:

More than half a century has passed since Yokogawa developed Japan's first magnetic flow meter for industrial use in 1955, and today, Yokogawa's magnetic flow meters are widely used in a variety of applications thanks to features such as low pressure loss and maintenance-free operation due to no obstacles and moving parts in the fluid flowing pipeline.

Yokogawa Technical Report
Обзор:

After having undergone several improvements, magnetic flow meters have become highly accurate and reliable and are widely used in the industrial instrument field today. Magnetic flow meters consist of a detector and a converter, with the principle of the detector adopting Faraday's electromagnetic induction law.

Yokogawa Technical Report
Обзор:

In 1988, Yokogawa launched the ADMAG series of magnetic flow meters with increased resistance to fluid noise and zero stability, employing dual frequency excitation which was developed based on its long-cultivated technology for flow measurement. Since then, the ADMAG family has augmented its application range with such models as explosion-proof and integral types, and a capacitance type.

Обзор:

Control Engineering Asia, March 2012

Enabling the operational benefits of two-wire magnetic flow meters while maintaining the performance levels associated with traditional four-wire devices.

Материалы

Техническая информация
