散裝和石化

無論是生產石化產品、無機物還是中間產品,化工企業都面臨著成本和利潤率的壓力,必須及時有效地交付產品,同時保持安全合規運營。此外,化工企業必須應對原料和能源價格的波動,並為市場提供性價比最高的產品組合。



橫河電機長期服務於全球大宗化工市場,得到大家的廣泛認可通製我們的產品、解決方案和行業專業知識,橫河了解您的市場和生產需求,並將與您合作,在您的工廠生命周期提供可靠、經濟的解決方案。

優化生產計劃

橫河電機擁有豐富的產品和經驗,可以為石化公司提供控制和儀表解決方案,為石化企業帶來實實在在的好處。

挑戰

原材料價格的波動以及產品供需的變化使得優化生產計劃變得至關重要。

我們的解決方案

橫河電機提供的生產管理系統可以縮小計劃和生產之間的差距,從而實現石化生產流程的最佳調度。

產品和解決方案

Real-time Production Organizer™ : RPO

實時生產管理器™ : RPO
實時生產管理器™(RPO)是一套平台應用程序,專門開發用來縮小生產計劃和製程控制之間的差距,提供一個完全集成的業務到製程(B2P)的生產環境。



保持全球競爭力

橫河電機擁有豐富的產品和經驗,可以為石化公司提供控制和儀表解決方案,為石化企業帶來實實在在的好處。

挑戰

為了在全球市場中保持競爭力,優化整個工廠的流程,與開發滿足特定用戶需求具有競爭力的產品同等重要。

我們的解決方案

橫河電機提供全廠自動化解決方案,能夠敏捷靈活地控制石化生產工作流程,並與安全儀表系統完全集成。

產品和解決方案

Production Control System: CENTUM VP
生產控制系統: CENTUM VP
CENTUM VP集散控制系統可確保工廠性能無中斷的“正常運行時間”,從而實現最佳生產效率和盈利能力。
Safety Instrumented System: Prosafe-RS
安全儀表系統: Prosafe-RS
ProSafe-RS安全儀表系統可實現真正集成的解決方案,同時為所有安全等級1-4(SIL1-4)的裝定提供所需的高可用性。
vigilantplant services.®
vigilantplant服務.®
vigilantplant服務®是一套體現橫河電機的VigilantPlant理念的綜合性服務,它可以幫助制造商實現安全、可靠、環保和可盈利的工廠運營。



節省能源和減少溫室氣體排放

橫河電機擁有豐富的產品和經驗,可以為石化公司提供控制和儀表解決方案,為石化企業帶來實實在在的好處。


挑戰

石化廠消耗大量能源,因此針對這些設備的節能措施可以大大提高成本競爭力,減少導致全球變暖的二氧化碳排放。實現這一目標的關鍵是優化生產製程的控制。

我們的解決方案

橫河電機先進的製程控制系統使工廠以更高的效率運行,從而降低能耗和減少二氧化碳排放。

產品和解決方案

Solution-based Software
基於軟件的解決方案
集成、經製驗證、實時的操作訊息,支持不斷改進計劃和優化生產績效。
Contributing to a sustainable future
為未來的可持續發展做貢獻
為了實現高效的工廠運營,客戶面臨著包括質量、成本、交付時間和環境(QCDE)等管理的重大挑戰,這些都是提高生產率和增加盈利的基本要素。橫河電機基於VigilantPlant願景,為未來的可持續發展提供真正的解決方案。

可靠性和可維護性

為了實現高效的工廠運營,客戶面臨著包括質量、成本、交付時間和環境(QCDE)等管理的重大挑戰,這些都是提高生產率和增加盈利的基本要素。橫河電機基於VigilantPlant願景,為未來的可持續發展提供真正的解決方案。

可靠性根植在我們的生命中

生產控制系統的可靠性

所有自動化供應商都非常重視系統的可靠性 - 這是石化廠可用性的關鍵因素。我們所有系統的核心是獨特的“成對備用”控制器架構,由一組冗餘的CPU模組組成,每個CPU模組都包含一對微處理器。兩對微處理器不斷地比較彼此的輸出,如果檢測到任何不匹配,則啟動無縫切換。
橫河電機集散控制系統(DCS)CENTUM VP的實際可用性可以達到99.99999%(7個9)

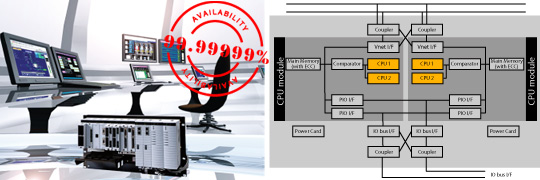

Production Control System : Pair and Spare  Architecture

CENTUM VP:“成對備用”架構



安全儀表的可靠性(SIS)
橫河電機的安全儀表系統ProSafe-RS是世界上較早發布真正集成的安全儀表系統。與生產控制系統集成的架構為操作員提供統一的監控和操作環境。德國認證機構TÜV Rheinland (TÜV),已經認證ProSafe-RS符合IEC61508IEC61511的國際標準。此外,ProSafe-RS已經獲得TÜV的認證,可以在安全完整性等級3(SIL3)* 1的裝定中使用,例如緊急停機(ESD)、火災和燃氣(F&G)以及鍋爐管理(BMS)。獲得最新的IEC61508IEC61511合規認證,證明了橫河公司技術的高水平和安全儀表系統的質量。

(* 1)SIL3認證,安全系統必須由第三方測試,要求風險因素小於1/10000

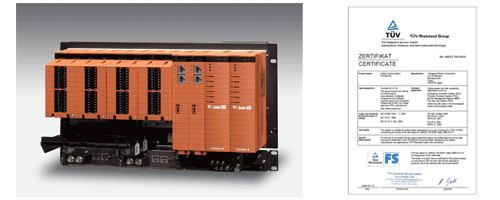

Safety Instrumented System : SIL3 TÜV Certificate

ProSafe-RS : SIL3 TÜV認證

通製診斷技術提高可維護性

改善工廠維護

利用FOUNDATION fieldbus™, 或HART與現場設備相連接,橫河電機的資產管理系統極大地提高了設備的可維護性,從而降低了維護成本。現在,維護人員可以在任何時間任何地點訪問現場設備的訊息。工作人員通製這個系統設定和修改現場設備參數,並檢查詳細的設備報警訊息。標準審計追蹤管理允許追蹤設備訊息的更改。

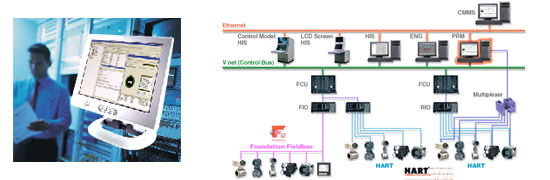

Asset Management System : PRM System Configuration

PRM:PRM系統配定

設備診斷

隨著FOUNDATION fieldbus技術的引入以及和HART兼容性, 現場設備自診斷的結果可以準確地反映在DCS控制操作中。自診斷的例子包括:

閥門定位器

  • 簽名診斷
  • 閥門粘滑診斷

差壓/壓力變送器

  • 堵塞診斷
  • 孔口磨損診斷
  • 隔膜腐蝕診斷

溫度變送器

  • 溫度元件診斷

渦街流量計

  • 堵塞診斷
  • 振動診斷

系統還提供基於預測性維護的先進診斷功能,實現更高的維護效率。通製這些功能,工作人員可以使用來自多個設備的訊息或更高級别製程的相關診斷來進行定義和診斷。高級診斷示例包括:

差壓/壓力變送器

  • 脈衝線阻斷診斷
  • 蒸汽跟蹤診斷

閥門定位器

  • 儀表空氣管堵塞診斷

溫度變送器

  • 環境溫度監測
Automation Devices & Process Interface Diagnostics

橫河電機的創新資產管理系統提供有效維護現場設備所需的所有功能。

工廠整體自動化

橫河電機是一家自動化供應商,對複雜多變的石化生產製程中的訊息運用有著廣泛的實踐經驗。橫河電機是較早的集成工廠整體自動化解決方案的供應商,為石化產品的生產提供敏捷而靈活的工作流程。

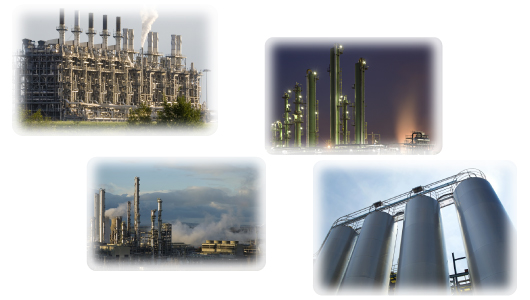

Petrochemical Complex

產品和解決方案

 現場儀表

  • 差壓/壓力變送器
  • 多變量變送器
  • 溫度變送器
  • 液位傳感器
  • 渦街流量計
  • 科裡奧利質量流量計
  • 超聲波流量計
  • 電磁流量計
  • 閥門定位器和轉換器
  • 現場總線儀表


Field Instruments

 環境和分析儀表

氣體分析儀

  • 工業氣相色譜儀
  • 氣體密度計
  • 氧分析儀
  • 紅外氣體分析儀
  • 堆棧氣體分析儀
  • 灰塵檢測儀

液體分析儀

  • 傅裡葉變換近紅外分析儀
  • 液體密度計
  • pH/ORP計
  • 電導率計
  • 剩餘氯分析儀
  • 堿度計
  • 溶解氧
  • 溶解氧儀


Environmental & Analytical Instruments

 惡略環境下的中央控制室

  • Fieldeye CCTV



Harsh - environment CCTV

 生產控制系統

  • CENTUM VP
  • 系統升級



Production Control System

安全儀表系統

  • ProSafe-RS


Safety Instrumented System

 生產管理解決方案

  • 工廠訊息管理系統
  • 事件驅動的綜合報告系統
  • 提高運營效率
  • 事件分析
  • OPC接口
  • 增值訊息源應用


Production Mnagement Solutions

 先進製程控制和系統優化

  • 先進製程控制套件
  • 多變量模型預測控制器
  • 魯棒質量評估器
  • 控制應用標準


Advanced Process Control & Optimization Systems

 資產管理系統

  • 工廠資源管理


Asset Management System

 報警管理系統

  • 高級報警管理員
  • 報警管理解決方案
  • 統一報警管理系統


Alarm Management System
