生物質發電

現在生物質受到越來越多的關注,因為它是一種可再生能源,可以幫助火力發電廠減少二氧化碳排放。橫河電機的系統在世界上各種類型的發電廠中都有使用,包括那些使用生物質發電的工廠。橫河電機的測量和控制技術能夠幫助這些工廠更有效地運行並減少其碳排放。

挑戰

客戶面臨的挑戰

提高發電廠效率

我們的解決方案

橫河電機通製改善對燃料、蒸汽和給水的控制,幫助電廠更高效地運行。

使能技術

CENTUM VP集成生產控制系統

CENTUM VP集成控制系統可確保工廠性能實現無中斷的“正常運行”,從而在可再生能源方面達到較高的生產率和盈利能力。


Exapilot提高操作效率軟件

Exapilot是在線導航工具,可以指導操作員逐步進行工廠運行的操作步驟。Exapilot使系統按照標準操作程序(SOPs)自動運行,並對製程和設備異常進行早期檢測。



客戶面臨的挑戰

安全有效地啟動鍋爐,這是一個很有技術含量的複雜製程。

我們的解決方案

橫河電機系統通製將燃料油加熱轉換為生物質燃料等自動化流程,使啟動時更安全、更高效。圖形顯示為操作員提供了進入每個流程狀態的實時窗口。

使能技術

CENTUM

CENTUM VP集成生產控制系統

CENTUM VP集成控制系統可確保工廠性能實現無中斷的“正常運行”,從而在可再生能源方面達到較高的生產率和盈利能力。




Exapilot提高操作效率軟件

Exapilot是在線導航工具,可以指導操作員逐步進行工廠運行的操作步驟。Exapilot使系統按照標準操作程序(SOPs)自動運行,並對製程和設備異常進行早期檢測。


模擬器

高精度、全廠培訓模擬機



客戶面臨的挑戰

提高燃燒效率,減少/消除有害煙氣排放。

我們的解決方案

橫河氧氣濃度分析儀可以測量煙氣中的氧氣(O2)濃度。根據此信息,可以調節空氣的燃燒比以優化燃燒。同樣,我們的煙道氣體分析儀可通製測量煙氣中氮氧化物(NOX)和硫氧化物(SOX)的濃度來減少有害物排放。

使能技術

ZR系列氧化鋯氧分析儀

橫河電機的氧化鋯氧分析儀用於燃燒監測和控制應用,並廣泛應用於各行各業,以優化燃燒並減少NOX排放。


SG750煙道氣體分析儀

SG750煙道氣體分析儀由紅外氣體分析儀單元、氧化鋯氧分析儀單元和取樣單元組成,可同時測量多達五個組份:NOX、SO2、CO2、CO和O2。



客戶面臨的挑戰

使用混合燃料時保持穩定的蒸汽供應。

我們的解決方案

橫河電機的控制系統能夠計算最佳燃料混合比並調整燃料供應,以穩定主要蒸汽壓力。

使能技術

EJX / EJA系列壓力變送器/差壓變送器

DPharp系列數字壓力變送器採用差壓高精度共振壓力(DPharp)傳感器,代表了變送器技術領域革命性的先進技術之一。


CENTUM VP集成生產控制系統

CENTUM VP集成控制系統可確保工廠性能實現無中斷的“正常運行”,從而在可再生能源方面達到較高的生產率和盈利能力。


Exapilot提高操作效率軟件

Exapilot是在線導航工具,可以指導操作員逐步進行工廠運行的操作步驟。Exapilot使系統按照標準操作程序(SOPs)自動運行,並對製程和設備異常進行早期檢測。



Details

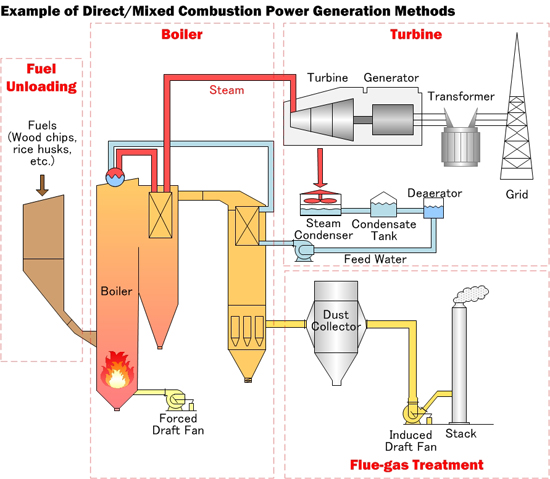

生物質發電製程

生物質電廠大致分為直接燃燒、混合燃燒及氣化等類型。利用直接燃燒發電的方法,蒸汽是由燃燒諸如木材廢料、農業廢料和牲畜廢料得來的熱量所產生。蒸汽轉動渦輪機,然後渦輪機驅動發電機發電。使用這種方法重要的是確保生物質材料的穩定供應,並在這些材料中保持水分含量均勻分布。混合燃燒發電方法依賴於生物質燃料和煤來提供穩定的電流。當生物質燃料不足以為工廠供電時就加入煤。在氣化發電方法中,加熱生物質燃料以提取可燃氣體,可燃氣體被淨化後,可為燃氣發動機或燃氣渦輪機提供動力來發電。

控制和測量技術

全廠系統和儀器儀表

信息

  • 操作支持
  • 操作培訓
  • 工廠資產管理

控制

  • 綜合監測和控制
  • 安全儀表

測量

  • 流量
  • 壓力
  • 液位
  • 溫度
  • pH
  • 電導率
處理方式
燃料卸載 鍋爐 渦輪
  • 燃料卸載
  • 混合燃燒控制
  • 比例分配控制
  • 燃料量測量
  • 蒸汽壓力控制
  • 燃燒控制
  • 助燃空氣控制
  • 爐膛通風控制
  • 給水控制
  • 蒸汽溫度控制
  • 吹灰器控制
  • 煙氣O2測量
  • 主渦輪控制
  • 冷凝器液位控制
  • 除氧器液位控制
  • 給水控制
  • 除鹽劑控制
煙氣處理
  • 除塵器入口溫度控制
  • 煙氣測量(NOX,SO2,CO,CO2,O2,灰塵)
