管道

能否正确控制管道和仪表会在性能和盈利方面会产生巨大的差异。横河拥有专业的技术,可以优化管道解决方案中所有因素的性能,包括压缩机、泵、阀门及中间存储和分配设施。

客户面临的挑战

  • 需要一个集中控制室来改善燃气管道整体的运行和管理。
  • 需要备份站点及主站在不同的位置进行防灾措施。
  • 手工收集各区域管线的运行数据。

我们的解决方案

  • 为中央控制室-提供FAST/TOOLS软件包和一种利用三重冗余配置的历史服务器、客户端服务器和分区服务器的高可用性计算解决方案。
  • 各区域燃气管理中心实现基于双冗余前端处理服务器的FAST/TOOLS的解决方案,用于不间断的监测和控制


客户获得的收益

  • 通过冗余配置,保证了现场运行维护数据的流动。
  • 操作员、生产工程师和分析员都可实时可视化访问全年的数据。
  • 整个客户管网的系统可用性已提高到99.5%。



成就

  • 确保全国天然气供应稳定

  • 提高运行维护效率

  • 大幅降低总运营成本



使能技术

FAST/TOOLS

  • FAST/TOOLS始于灵活先进系统技术(FAST)项目,如今已发展为综合且完全集成的SCADA应用套包。

  • 强大且灵活的FAST/TOOLS可以为各种应用提供安装服务,从50点单元过程到数百万点的海外生产,以及延伸数千英里的管道系统。





概述

EPMS System

企业管线管理解决方案“EPMS”提供了一系列标准管道应用程序,便于气体/液体管道系统的管理和操作。应用程序可以无缝插入到SCADA监控环境中的FAST/TOOLS实时系统平台中。EPMS由两个组件组成:燃气企业管理套件和液体企业管理套件。

点击看大图





收益


EPMS软件包基于20年中大型复杂流水线自动化工程的经验,具有以下优势。

EPMS Benefit

管道管理系统的实施

更好更快的实施

知识的集中、保留和文档化

强化生命周期管理

使用经过验证功能的可靠系统

专职顾问和产品支持

整合成本

防止应用程序供应商和集成技术锁定

建立基于标准和IT/安全兼容的应用平台

降低持有成本

标准技术

可扩展、灵活、可重复利用

生命周期管理

行业标准支持

执行管道行业标准的最佳实践

为监管支持与合规提供基础

未来证明

IT架构对冲破坏性技术和趋势

增加过程和数据的多样性、数量和速度



功能规格

EPMS提供以下集成和相关功能:

  • 用于精确测量和流量计算的仪表输入处理

  • 使用设备调度器和EFM日志上载器进行天然气数据管理

  • 调度和监视天然气提名

  • 监视管道沿线和网段的路线包

  • 最大允许运行压力, MAOP监测

  • 管道平衡、储存和库存计算

  • 调度和跟踪批次,以便高效运输液体产品。

  • 监控液体管道的泄漏、库存和液压分析。

  • 减阻剂管理以及压缩机和泵的电源管理

  • 使用流动路径管理器控制多支管

  • 追踪和管理如清管/清管器、合并/热点和接口等异常现象

      点击看大图



管道应用

点击看大图



系统结构

EPMS插入FAST/TOOLS平台,在一个共同的环境中继承FAST/TOOLS的优势;

  • 一个系统/用户管理和配置环境

  • 管道显示的相同布局可用于过程显示

  • 在整个应用程序中可以使用相同的用户权限

  • 在相同的环境中可以使用标准特性,如报告、历史和配置。

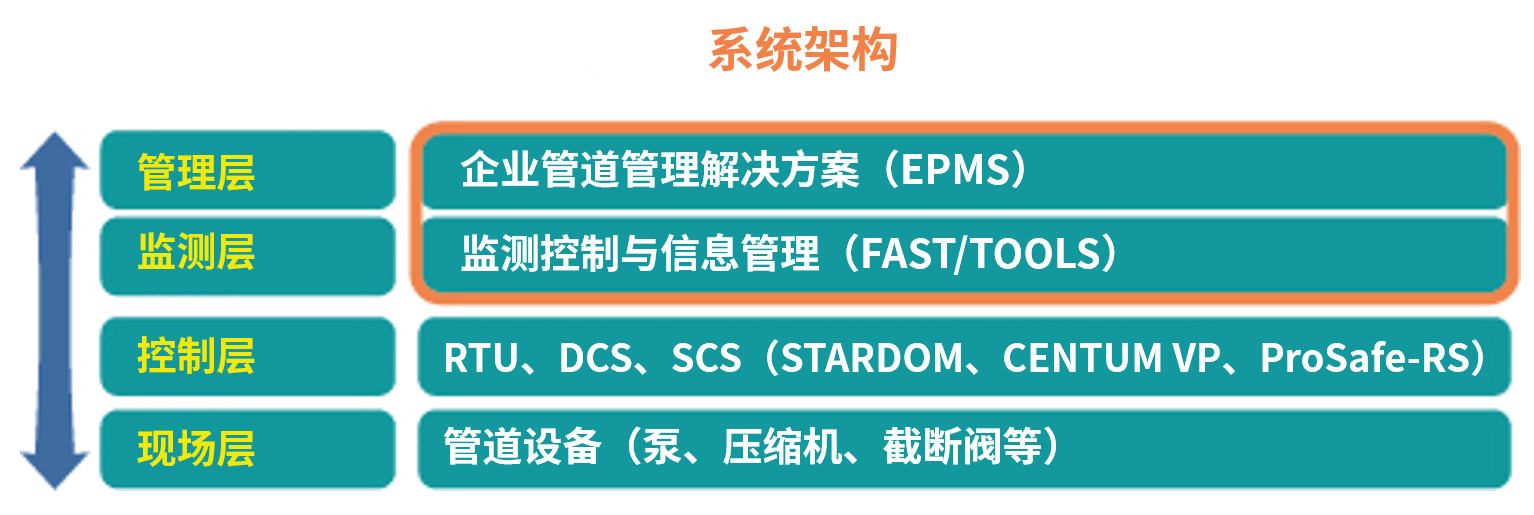

EPMS System Architecture

概述:
  • STARDOM and FAST/TOOLS integrated SCADA solution for Indian Oil Corporation's multiproduct oil pipeline.
  • STARDOM facilitates the total visualization of data needed for safe and reliable pipeline operations.
