上游

上游行业包含海上和陆上活动,包括井口自动化、分馏、完井和分离,回收和制备地下或水下原油和天然气。

当石油被带到地表时,在运输之前必须将其分离。在三相分离中,一级和二级分离阶段通常分布有气体流量、水流量和油流量。气体的输送需要管道,并且在输送之前的上游阶段需要进行分馏。液体需要通过罐和管道输送并处理,这就需要精确的液位测量

客户面临的挑战

石油和天然气井正在分布到更广泛的领域,钻探将达到更深的深度,因此需要采用越来越复杂的技术。成本按比例上升。为了帮助控制成本,重要的是防止可能导致的意外停车的设备故障。

我们的解决方案

计划外停车破坏了生产计划,导致利益受损。横河的产品具有高可用性,可防止油气田的非计划停车,节省客户的资金,增加过程的安全性。

横河的分布式控制系统(DCS) CENTUM系列的核心是一个独特的成对备用的控制器结构,由一组冗余的CPU模块组成,每个模块都配备双微处理器。如果检测到任何不匹配,这两个处理器连续比较它们的输出并启动无凸点切换。通过这种方式,CENTUM系列系统达到99.99999%(79)的可用性。其他横河产品,如STARDOM RTU遵循类似的设计理念,利用在高端PC中发现的相同的错误检查和纠正(ECC)内存,并具有正常内存容量的两倍,便于长期存储气体体积数据等现场信息。这有助于减少停车时间,提高系统可靠性,并无需前往偏远井位从而提高维护效率。

使能技术

CENTUM VP

CENTUM系列现场控制站(FCSS)的所有硬件和软件都是横河开发的。凭借我们对这些系统内部和外部的了解,可以帮助客户保持99.99999%的可用性。



STARDOM

FCN-RTU具有诸如256 MHz 32RISC处理器的特性,是经过现场验证的FCN/FCJ体系结构的进化。同时提供高性能和低功耗。该低成本模型具有四个串行I/O端口和一个以太网端口,从而满足SCADA应用的最低要求。



客户面临的挑战

石油和天然气公司正在努力保持竞争力并努力增加收益。实现这一目标的一种方法是通过应用现场数字技术来增强性能。

我们的解决方案

横河的高精度和高稳定性的现场数字技术通过减少非计划停车时间和免除到现场检查的需求,给石油天然气公司带来了竞争优势。横河提供了一条向先进技术迁移的道路。

使能技术

现场数字

横河在1998年发布了第一批基金会现场总线兼容产品后,开始积极发展现场数字技术。作为基金会现场总线国际标准定义的主要倡导者,横河通过减少现场布线的需要,引入智能现场设备,并改善数字现场设备的管理和诊断,在优化操作中发挥着重要的作用。



现场无线

横河无线技术花费了大量的时间和精力来增加测量点。变送器可以方便地安装在布线困难的物理位置或需要耗费成本的地方。通过无线网络连接传感器极大提高了监测效率,同时优化了功耗和通信,从而最大限度提高了测量可用性。在广域网络上集成无线测量有助于将现场信息传输到控制室。在控制室可以通过横河的FAST/TOOLS SCADA系统实现可视化管理。

技术升级

在油气田作业中引入数字技术有助于优化生产,提高运行安全性和保护环境。还有一个优势是这些数字技术的部署非常便利。横河的STARDOM RTU和混合PLC可以同时控制模拟传感器和数字传感器,不再需要安装网关或使用ModbusFOUNDATION fieldbus™HARTDNP3DeviceNet建立专用网络或其他类型的现场网络。因此,可以实现对数字现场网络的逐步升级。

客户面临的挑战

载人和无人井口通常分布在一个广阔的区域,并由许多类型的通信基础设施连接。整合这些复杂的操作是提高效率的关键因素。

我们的解决方案

统一实时监控

横河提供一个集成的人机界面(HMI),实现统一监控和报警处理。这使系统更容易操作,减少了操作员的错误,提高了安全性,并节省了培训时间和费用。横河统一网关站(UGS)支持与横河智能RTUSTARDOM)和使用ModbusTCP/RTU)、OPC、以太网/IP等技术的本地网络连接,无人和载人井口都易于集成。由于来自不同网络的图形都跟CENTUM VP具有相同的外观和感觉,操作员只需要学习如何使用CENTUM VP HMI,就可以轻松地操作整个系统及处理报警。UGS还适用于所有类型的通信,如SAMDOMModbusEthernet/IP的单冗余和双冗余通信网络。只需要简单的编程就可以构建具有额外UGS的高度可靠的系统。

使能技术

UGS具有统一操作和监视环境的特点。

  • 不同控制器之间的无缝过程操作和监测(过程数据和警报)及系统监控。
  • 广泛的操作和监控范围。
  • 提高工程效率。

系统配置示例

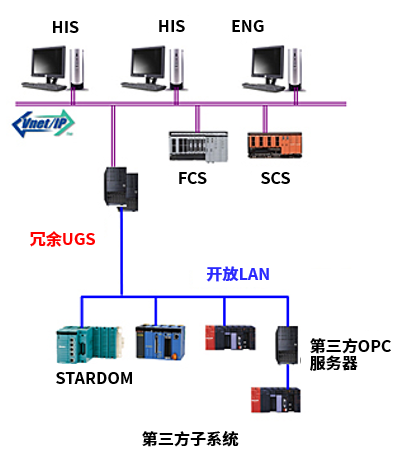

UGS作为CENTUM VP和子系统控制器之间的网关。UGS用与CENTUM VP现场控制站相同的方式操作和监视子系统控制器。

HIS:人机界面站
ENG:工程站
FCS:现场控制台
SCS:安全控制站




海上油气田的管理正朝着跨学科及业务领域集成数据的综合业务迈进。上游石油天然气公司通过综合运营,挑战非常规及远程环境下的复杂性操作。通过集成系统实现了集成操作。紧密集成的系统改变了工作方式,提高了决策质量和速度。

企业自动化解决方案(EAS)将实时和历史自动化信息从工厂或领域传递到企业管理级,用于分布式自动化系统的分析、研究、资产监控和控制。为了提高安全性、生产性和效率,人们需要以他们可以使用的方式获得最好的信息。EAS在正确的时间将正确的自动化相关信息传递给合适的人做出正确的决定。

近海勘探和生产在苛刻条件下需要获得最多的正常运行时间。载人和无人设施都需要可靠的综合控制和安全系统(ICSS),并具有先进的远程监控能力。横河拥有先进的技术和丰富的经验,可以执行不同规模及各种复杂程度的离岸项目。

天然气处理的目的是控制天然气的露点,并分离天然气液体用于销售和分配。油和凝析油的去除、水的去除、天然气液体的分离以及硫和二氧化碳的去除是用于分离来自上游储罐的进料中的杂质。分馏过程从气体处理厂获取液体流,它可以由甲烷、丙烷、丁烷和戊烷组成,并在单独的分馏塔中进行处理,然后在分离成单独的成分出售之前进入杂质处理设备。
