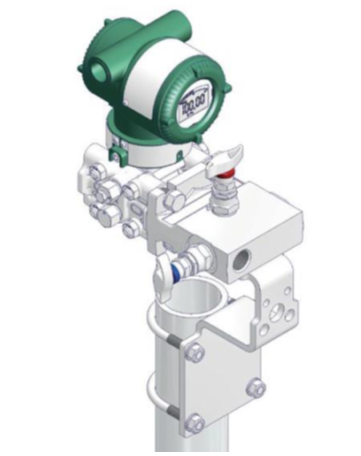

The EJX310A is a traditional-mount Absolute Pressure Transmitter.
Details
What Are the Benefits of Differential Pressure Transmitters?
At its heart, Yokogawa's Differential Pressure Transmitter with DPharp digital sensor offers the performance and device intelligence needed to get greater insight into your process. Plants run better with Yokogawa pressure transmitters.
Digital Performance
Poor Performance = Lost Money
Installed performance 2x better using all digital DPharp pressure sensor.
Yokogawa’s digital sensor provides superior performance and stability compared to analog sensors.
Local Indicator
Easy to read indicator provides all the information you need.
Standard Diagnostics
Good Diagnostics = Less Surprises
Reduce unscheduled maintenance by 60%
Over 40 diagnostics to ensure everything is OK. Active Sensor Technology monitors the DPharp sensor while the Patented Back-check Technology is reverse checking all calculations in real-time.
Advanced Diagnostics
Reduce unscheduled maintenance by 60%.

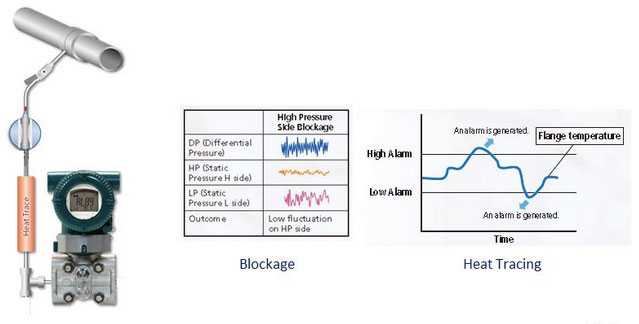

Predictive impulse line blocking and stream tracing diagnostics lets you see problems before they happen.
How to Reduce Total Cost of Ownership?
Yokogawa's DPharp active sensor, patented back check diagnostics, and rugged construction allow users to run their plants safer and with less downtime.Yokogawa pressure transmitters help plants run longer.
Rugged Construction
Ruggedness = Reliability
Reduce failures in the field by 200%.
Yokogawa transmitters are designed to out live your planet.
Proven Technology
Less Downtime = Making Product
Over 6 million DPharp transmitters are installed worldwide.
Reliability Guaranteed
Reliability verified independently by third party industry experts.
Inherently Safe
Inherently Safe = Reliability
Save up to 10% on CAPEX spending.
All Yokogawa pressure transmitters are certified to meet IEC61508 for single use in SIL 2 applications or dual use in SIL 3 applications as a standard. No special option needed! To Yokogawa, safety should never be an option.
Active Sensor Technology
Unlike other sensor technologies, the active DPharp sensor constantly produces a signal even if there is no change in the process. This signal is continually monitored by the CPU.
Patented Self-check System
All calculations are checked by reverse calculation in real-time ensuring the highest reliability.
Quicker Maintenance
Routine maintenance is easier with Yokogawa pressure transmitters. Efficient and effective maintenance through extended calibration intervals and simple trouble shooting.
Extended Calibration Intervals
Reduce maintenance cost by 33%.
Improved long-term stability extends calibration intervals. Spend your time where it is needed.
Quicker = Less Downtime
Multiple Communication Options
Save time, Save money
FieldMate PC based communication platform allows management of your entire instrument inventory.
FieldMate HHC allows you to take that information into the field.
LPS can update 9 parameters in the field without the use of an HHC.
Simple Troubleshooting
Save time, Save money
Local intuitive display with simple error messaging.
NE107 compliant alarms in FieldMate make troubleshooting easy.
Less Inventory
Universal Mounting
Reduce stock by 50%
Consolidate inventory of different flange configurations. Yokogawa transmitters are available with flanges using flexible vent and drain locations to met any installation need.
High Inventory = Stagnant Money
Safety as Standard
Reduce stock
No need to stock separate inventory for safety and non-safety applications. With safety as a standard, Yokogawa transmitters can be used for either application.
For Yokogawa, safety is never an option.
Standard Protocols
No Learning Curve = Smooth Change Over
Yokogawa transmitters support all industry standard field device protocols. Interoperability and interchangeability can be ensured. Use the same tools and work procedures as before.
Standard Industry Connections
Process connections designed to meet IEC61518 ensure you will not meet proprietary manifolds or accessories that limit your design choices.
EJX310A Overview
| Measurement Types | |
|---|---|
| Primary Variable | Absolute Pressure |
| Reference Accuracy | |
| Primary Variable | ±0.075% of Span (L-Capsule) ±0.04% of Span (M, A, and B Capsule) |
| Stability (All Normal Operating Conditions) | |
| Primary Variable | ±0.2% of URL per 10 years |
| Response Time | |
| Primary Variable | 90ms |
| Rangeability | |
| Primary Variable | L-Capsule: 20:1 M-Capsule: 100:1 A and B Capsule: 200:1 |
| Burst Pressure (Absolute) | |
| All Capsules | 10,000 psi (69 MPa) |
| Specification Conformance | |
| EJX-A Series | ±3σ |
WPC107.a
EJX310A Capsule Ranges
Graphics are not to scale
Manifolds
For Absolute or Gauge Pressure Transmitters, Yokogawa offers a complete line of IEC 61518 compliant 2-Valve manifolds. Available in T-Style, H-Style, Wafer-Style, and Bottom Process Connection Style. Options include ASME B31.1 (Power) Compliant, ISO 15848 Compliant, and TA-Luft Compliant. Learn More
EJX310A Absolute Pressure Transmitter Calibration
From Differential Pressure and Pressure Transmitters Manual. Use the procedure below to check instrument operation and accuracy during periodic maintenance or troubleshooting.
1) Connect the instruments as shown in figure 8.1 and warm up the instruments for at least ten minutes
2) Apply reference pressures of 0%, 50%, and 100% of the measurement range to the transmitter. Calculate the errors (differences between digital voltmeter readings and reference pressures) as the pressure is increased from 0% to 100% and is decreased from 100% to 0%, and confirm that the errors are within the required accuracy
Resources
Yokogawa DPharp EJA/EJX Pressure transmitters do not need frequent re-zeroing due to superior long term stability, it contributes to reduce maintenance time.
Discover the safety features built-in to the Yokogawa digital pressure sensors (DPharp).
Downloads
Brochures
- Application for the Marine industry (6.0 MB)
Instruction Manuals
- EJX and EJA-E Series Differential Pressure and Pressure Transmitters Installation Manual (7.2 MB)
- ManualChange22-17E : DPharp EJX Series and EJA-E Series Differential Pressure and Pressure Transmitters (192 KB)
- Differential Pressure and Pressure Transmitter (6.3 MB)
- Manual Change 22-24E: EJX-A and EJA-E Series Differential Pressure and Pressure Transmitters (186 KB)
- DPharp Fieldbus Communication Type (3.7 MB)
- DPharp HART 5/7 Communication Type (12.2 MB)
- DPharp BRAIN Communication Type (2.7 MB)
- DPharp PROFIBUS PA Communication Type (6.2 MB)
- EJX/EJA-E series NEPSI Certification[Option code: /NF2, /NF21, /NS21, /NS24 and /NS25] (720 KB)
- EJX/EJA-E Series UKEX Certification [Option code:/BF21,/BS21,/BU21,/BS26 and /BN26] (1.5 MB)
General Specifications
Technical Information
- Functional Safety Manual (730 KB)
- Functional Safety Manual exida Certification (436 KB)
Certificates
Engineering Tools
- EJX310A Absolute Pressure Transmitter (320 KB)
- Drawings - EJX310A (Bottom Process Connection) (260 KB)
- EJX310A Absolute Pressure Transmitter Universal Flange (240 KB)
- CMPL - EJX-A Series (310, 430, 440) (396 KB)
- EJX310A, EJX430A, EJX440A with Option Code /N1 (369 KB)
- EJX310A, EJX430A, EJX440A with Option Code /N2 and /N3 (372 KB)
- /U1 Long Vent Plug (254 KB)
- 3D CAD Configurator - EJX310A
- CMPL - EJX-A Series Transmitter Section (261 KB)
2D/3D Configurator
