Details
 |
 |
 |
|

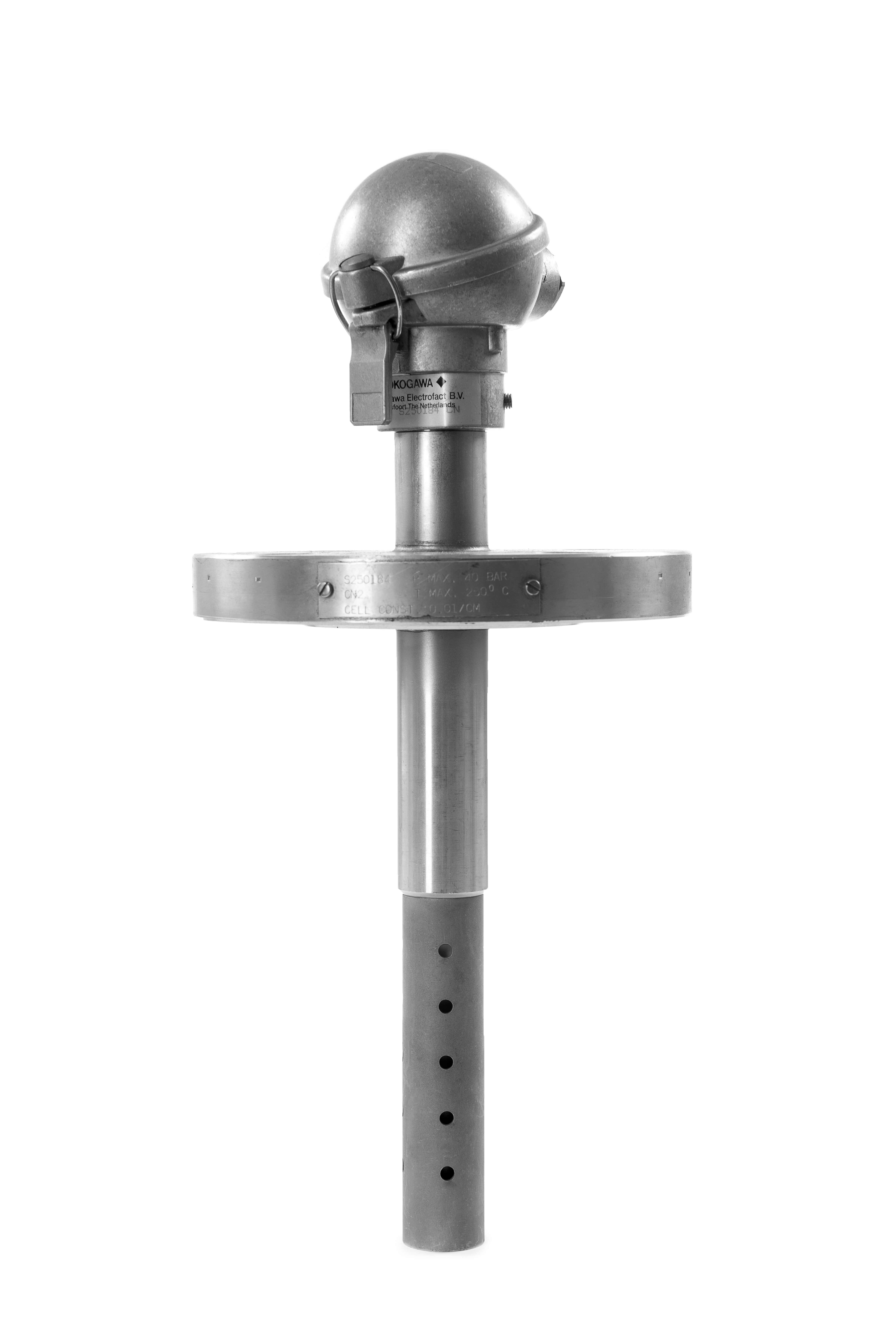

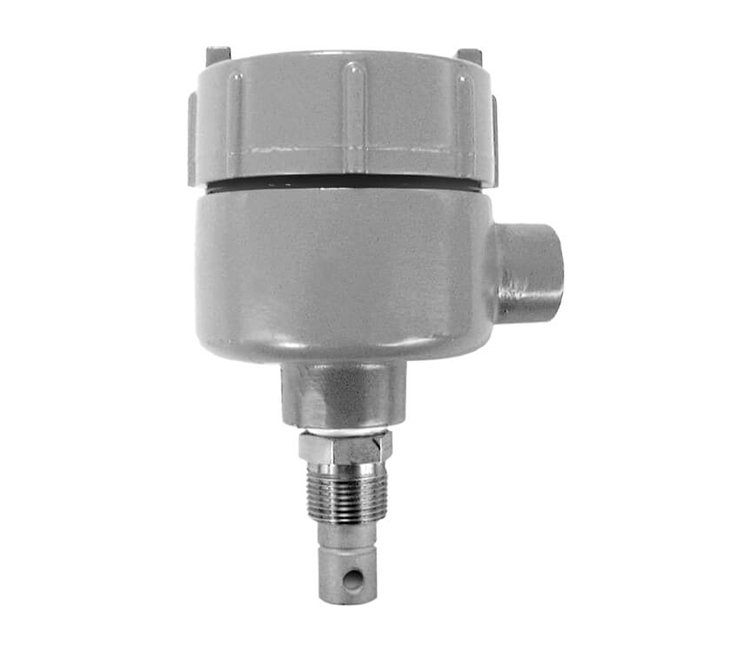

| Model Code | SC42 Small Bore | SX42 Large Bore | |
|---|---|---|---|
| Cell Constants | 0.1/cm; 1.0/cm | 0.1/cm; 1.0/cm | 0.1/cm; 1.0/cm |
| Ranges | 0.4-2,000 µS/cm; 4.0-5,000 µ/cm | 0.02-2,000 µS/cm; 0.2-20,000 µS/cm | 0.02-2,000 µS/cm; 0.2-20,000 µS/cm |
| Temperature Element | Pt1000 | Pt1000 | Pt1000 |
| Pressure Rating | 7 bar/100 PSIG | 16 bar/ 228 PSIG | 40 bar/ 570 PSIG |
| Maximum Temperature | 100°C/212°F | up to 200°C | up to 250°C |
| Installation Connections | 3/4" NPT Fitting; 1", 1.5" or 2" Tri-Clamp | 1" NPT | 2" 600lb ANSI Flange |
| Integral Cable | NO | NO | NO |
| Materials Of Construction | 316 Stainless Steel | 316 Stainless Steel | 316 Stainless Steel |
| Design Sytle | 2-Electrode | 2-Electrode | 2-Electrode |
下載
技術訊息
- Conductivity Analyzer Selection Guide (871 KB)
- SENCOM 4.0 Platform: Grounding (3.6 MB)
- Contacting Conductivity sensor selection guide (1.6 MB)
認證證明
- EU_UK Declaration of conformity SC41 2022-10-03 (125.2 KB)
- EU_UK Declaration of conformity SC42 2022-10-03 (158.2 KB)
- DEKRA 14ATEX0074X-Issue 1 SC4A, SC42 and SX42
- IECEx_DEK_14_0032X_Issue 0 SC4A, SC42 and SX42
- KCs_SC42(21-KA4BO-0419X) (155.8 KB)
- DEKRA 14ATEX0074X-Issue 2 -E SC4A, SC42 and SX42 (309.0 KB)
- KCs_SC42(21-KA4BO-0420X) (156.8 KB)
- EU_UK Declaration of conformity SX42 2022-10-03 (151.8 KB)
- TS_SC4A SC42,SX42 (1.7 MB)
- EACEx_SC4A SC42,SX42 (3.7 MB)
- IECEx_DEK_14_0032X_Issue 1 SC4A, SC42 and SX42 (1.0 MB)
- PESO_SC4A SC42,SX42 (97.7 KB)
- FM20CA0062X FU20, FU24, SC25V, SC4A, SC42, SX42 (390.0 KB)
- FM20US0123X FU20, FU24, SC25V, SC4A, SC42, SX42 (410.1 KB)
- Ex NEPSI_SC4A SC42,SX42 (917.1 KB)
- EU_UK Declaration of conformity SC49 2022-10-03 (114.1 KB)
- SC42/SX42/SC4A ATEX/ IECEx (2.3 MB)
- EAC certificate for sensors (1.8 MB)
產品外型圖
- SC42-SP14 and SC42-SH24 (205.6 KB)
影片
摘要:
Check out what is in the box when you receive Yokogawa epoxy type conductivity sensor SV42-EV15.
