OpreX Robot Management Core

The Robot Management Core (RMC) integrates and manages various types of robots and drones, enabling them to perform maintenance tasks previously carried out by human workers and thereby improving the safety and efficiency of plant maintenance. RMC also integrates with Yokogawa's plant control and safety systems, enabling robots and drones to receive instructions and allowing data collected in the field to be utilized for plant operations. This provides an initial step toward autonomous plant operations.

Development Background

At manufacturing facilities in industries such as oil and gas and chemicals, on-site operators perform routine tasks such as equipment inspections. However, covering large areas is time-consuming, while working at heights and in other hazardous areas places a significant burden on operators. In addition, retiring on-site operators and the shift of young people away from the manufacturing site have resulted in a shortage of human resources in plants.
To address these challenges, there are growing expectations for the use of robots and drones to perform routine tasks such as data collection and equipment inspections in place of human workers. In addition to ground robots, drones can be used for aerial monitoring and inspections at heights. By leveraging the capabilities of different robots and drones, RMC helps enable safer and more efficient plant operations and maintenance.
With RMC, Yokogawa aims to solve the following issues:

  • Reduce safety risks by using robots and drones to perform work in hazardous areas and at heights.
  • Use robots and drones to support human workers, enabling them to focus on higher-value tasks.
  • Enable robots and drones to reliably perform tasks that are difficult for human workers, such as around-the-clock patrols and inspections, according to operational needs.

Details

Main Functions

RMC is a software platform for the integrated management of robots and drones deployed in plants. It supports multiple types of robots and drones that operate at plant sites. By integrating RMC with the Collaborative Information Server (CI Server), the use of robots and drones in plants can be expanded, contributing to improved safety and efficiency in on-site operations and maintenance.

RMC supports the following robots and drones:

RMC-425A2827-1200x800-9b9f185-500px

Boston Dynamics: Spot robots

RMC-EX ROVR for YE500px

Mitsubishi Heavy Industries, Ltd.: EX ROVR robots

ExRobotics ExR-2 400px

                 ExRobotics: ExR-2 robots

RMC-anymal-d-legged-robot-walking

ANYbotics: ANYmal



RMC_MG_3260

Taurob: Inspector

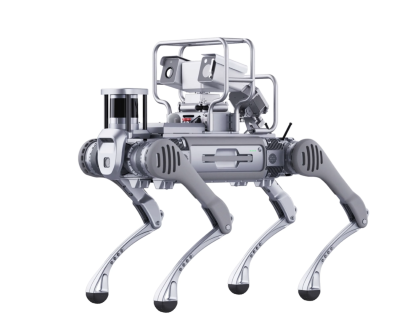

Unitree Robotics Unitree B2



Unitree Robotics: Unitree B2



Dock3

DJI: DJI Dock 3





Integrated Management of Robots and Drones

  • Management, instruction and data collection for multiple types of robots and drones can be performed in a unified manner. Data collected by robots and drones can be integrated with control and safety systems and utilized for plant operations.
  • The dashboard can be accessed through a web browser, eliminating the need for a dedicated viewer.
  • Plant patrols and inspections can be performed using autonomous robots and drones through manual or scheduled execution of pre-registered missions. Media data collected by robots and drones during these missions, such as images and audio, can also be viewed through a web browser.

Relevance to Other Software

Integrating RMC with the CI Server promotes the use of robots and drones in plants and contributes to improving the safety and efficiency of on-site plant operations.

  • RMC can share data collected by robots and drones with the CI Server.
  • Through integration with the CI Server, data collected by robots and drones can be used in various applications.
  • HMIs for robot and drone operations can be built on the CI Server.
  • When the CI Server detects alarms from field devices, robots and drones can be dispatched to the field, allowing operators to check the situation using images and other data collected on-site.
  • By integrating RMC with the Plant Image Analyzer (PIA), images of indicators captured by robots and drones can be converted into digital values. These values can also be shared with the CI Server.

RMC-System architecture-e

An example of a RMC system architecture

System Configuration

RMC supports on-premises and cloud deployment types.

On-premises Configuration:

  • When connecting Spot, RMC and Spot are placed on the same network.
  • When connecting EX ROVR or ExR-2, the Internet connection environment for RMC is required.
  • When connecting DJI Dock 3, RMC and DJI Dock 3 are placed on the same network.

Cloud Configuration:

  • When using Spot, it is necessary to connect the robot and RMC via a VPN.

Functional Configuration

RMC is a web application with services and interfaces for robots and drones. Using a dashboard accessible through a web browser, users can configure and manage mission (*) schedules for robots and drones.

*A mission is a series of tasks performed by robots and drones according to a predefined scenario (e.g., "go to point A," "take a picture," "return to the starting point," etc.).

Web Application Features

  • Dashboard page
    Check the status of robots and drones registered in RMC, scheduled remote monitoring missions, inspection targets (tags), and other information.
  • Mission management
    Depending on the type of robot or drone, operators can control it during a mission or operate it manually. Operators can start on-demand missions, approve remote monitoring missions, monitor missions in progress, and manually control robots and drones from the web application.
  • View and download mission results
    After a mission is completed, the results can be viewed and downloaded on the Mission History page.

Screen Example

RMC-Dashboard page-e500px

Dashboard page

RMC-robotpage_unannotated_English480px

Robot page

Robot and Drone Management Features

  • Mission Scheduler
    This feature manages autonomous missions based on a predefined schedule.
  • Robot and Drone Adapter
    This feature enables RMC to communicate with different types of robots and drones. Each supported robot or drone type requires its own adapter. (e.g., adapter for Boston Dynamics Spot, adapter for Mitsubishi Heavy Industries, Ltd. EX ROVR)
