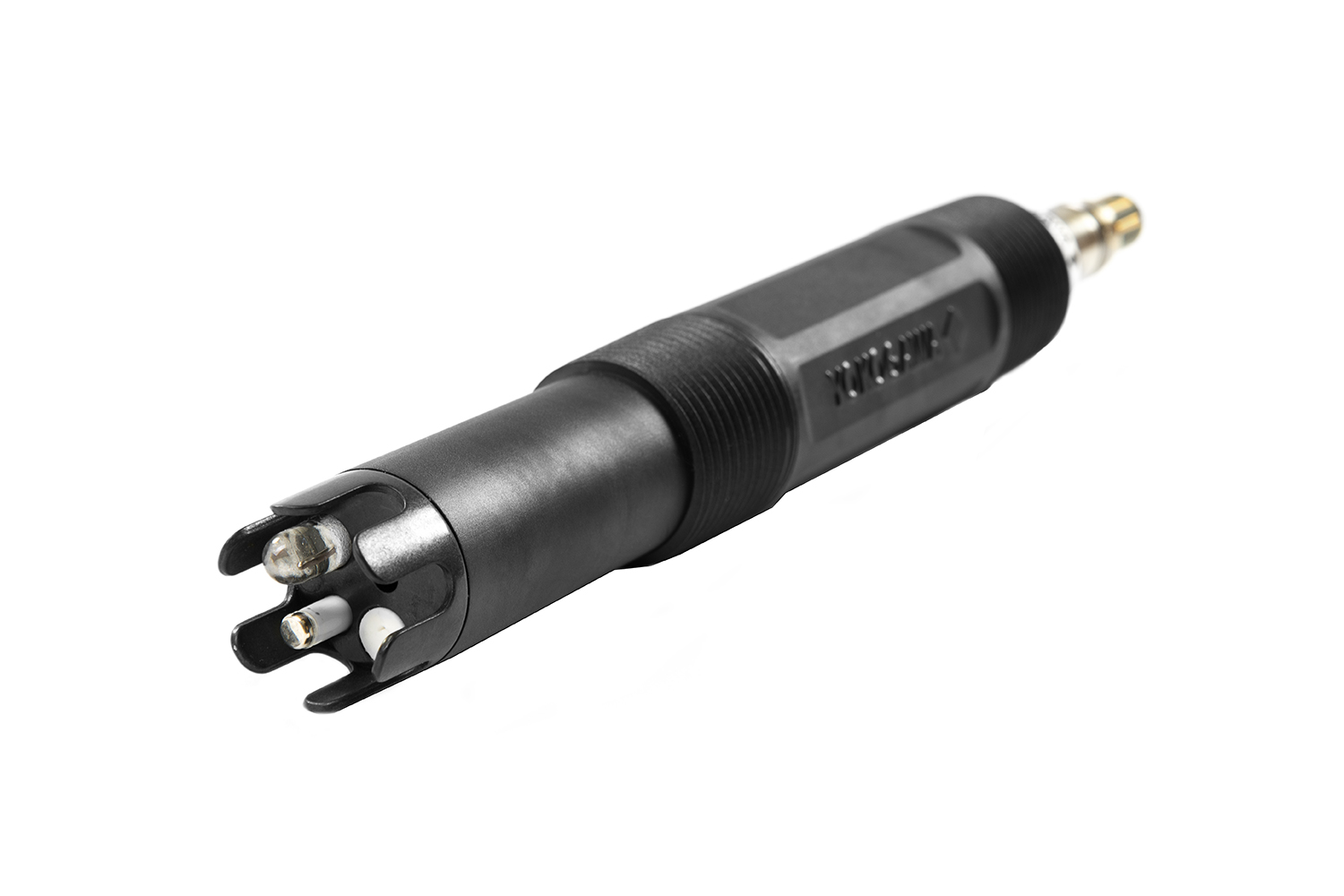

Комбинированные сенсоры FU20 и FU24 соответствуют принципу компании Yokogawa «Чем проще, тем лучше» в отношении технологии усовершенствования и разработки жидкостных систем. В корпус сенсора встроены четыре электрода (рН, ОВП, сравнительный, температурный), что позволяет одновременно измерять pH и ОВП посредством одного датчика. Корпус сенсора отличается своей прочностью и может быть изготовлен из материалов Ryton (FU20, FU24) или ПВДФ (FU20). Для удобства монтажа предусмотрена резьба NPT непосредственно на корпусе, а быстросъемный адаптер сенсора FU20 позволяет легко и быстро демонтировать его из процесса для техобслуживания и калибровки. Также предусмотрены два способа подключения кабеля: несъемный (интегрированный) или съемный с разъемом Variopin, жилы имеют цифровую кодировку для простоты подключения.
Какой сенсор подходит для вашего процесса?
В настоящее время в линейке Yokogawa представлены ШЕСТЬ ширококорпусных сенсоров.
Воспользуйтесь приведенным ниже перечнем особенностей и преимуществ для выбора наиболее подходящей модели вашим требованиям.
Подробно
- Доступны как аналоговые, так и цифровые сенсоры SMART (SENCOM)
- Платиновый электрод ОВП/Liquid Earth (электрод электролитического заземления) для одновременного измерения pH и ОВП c высокой точностью
- Встроенный термометр сопротивления Pt1000 для высокоточной температурной компенсации pH измерений
- Двойная диафрагма и длинный путь диффузии электролита обеспечивают дополнительную защиту электрода сравнения от загрязнения или отравления
- Элемент сравнения Ag/AgCl в пасте, насыщенной хлоридом серебра в сочетании с двойной диафрагмой, ионной ловушкой и полимеризованным электролитом позволяет значительно продлить срок службы электрода сравнения даже в химически неблагоприятных средах
- Тефлоновая ПТФЭ диафрагма и встроенная капсула большого объема с полимеризованным электролитом позволяет увеличить срок службы сенсора
- Ионоселективная мембрана, используемая в качестве электрода сравнения в дифференциальном сенсоре FU20 значительно увеличивает его срок службы
- Кабель с разъемом Variopin или неразъемный (интегрированный) кабель на выбор пользователя
- Упрощенное техническое обслуживание благодаря комбинированной конструкции
- Для установки сенсоров в процесс доступны различные дополнительные приспособления: фитинги для прямого монтажа, а также выдвижной (только для FU20), погружной и проточный адаптеры
- Быстросъемный адаптер для сенсора FU20
- Конструкция сенсора FU24 предусматривает наличие запатентованной системы компенсации давления (Bellow)
- Доступны две формы стеклянной мембраны измерительного электрода: куполообразная с повышенной прочностью для сред с ограниченным количеством включений и плоская - для процессов с большим количеством твердых частиц
Комбинированный сенсор FU20 соответствуют принципу компании Yokogawa «Чем проще, тем лучше» в отношении технологии разработки рН датчиков. Широкий корпус сенсора (диаметром 26 мм) из материала PPS40GF (RytonTM) или ПВДФ объединяет в себе четыре отдельных электрода. Наличие конической резьбы 3/4" непосредственно на корпусе обеспечивает простоту установки сенсора в процесс. Благодаря встроенной капсуле большого объема с полимеризованным электролитом и наличию двойной диафрагмы замедляется истощение электролита и риск отравления электрода сравнения, что значительно увеличивает срок службы сенсора. FU20 предназначен для тех процессов, для которых простота конструкции обеспечивает точные и надёжные измерения pH или ОВП, что делает сенсор подходящим для 90 % всех применений.
FU24 представляет собой комбинированный pH/ОВП-сенсор в прочном корпусе из химически стойкого материала PPS 40GF для измерений в агрессивных средах. Данный сенсор является особенно эффективным в процессах с флуктуацией давления и (или) температуры, где существует высокий риск проникновения измеряемой среды внутрь сенсора, что может привести к значительному снижению срока эксплуатации за счет изменения контрольного напряжения или даже отравления сравнительного элемента и изменения состава электролита.
Сенсор FU24 оснащен внутренней системой компенсации давления (Bellow), разработанной и запатентованной компанией Yokogawa. Встроенная гофрированная резиновая мембрана под влиянием избыточного давления процесса сжимается и выравнивает скорость потока электролита, предотвращая попадание среды внутрь сенсора.
