All-in-One pH/ORP Sensor Series FU20/FU24/PH20

PH20, FU20, FU24는 올인원 타입의 pH 와 ORP 센서로서 Yokogawa가 "Simple is best" 이라는 모토를 센서 기술에 어떻게 적용하는 지를 보여줍니다.

이 센서는 4개의 개별요소(pH, 리퍼런스, 온도, ORP)를 갖추고 있어 견고한 Ryton 또는 PVDF(FU20), Ryton(FU24), PVDF(PH20) 에서 하나의 센서로 pH와 ORP를 동시에 측정할 수 있습니다.

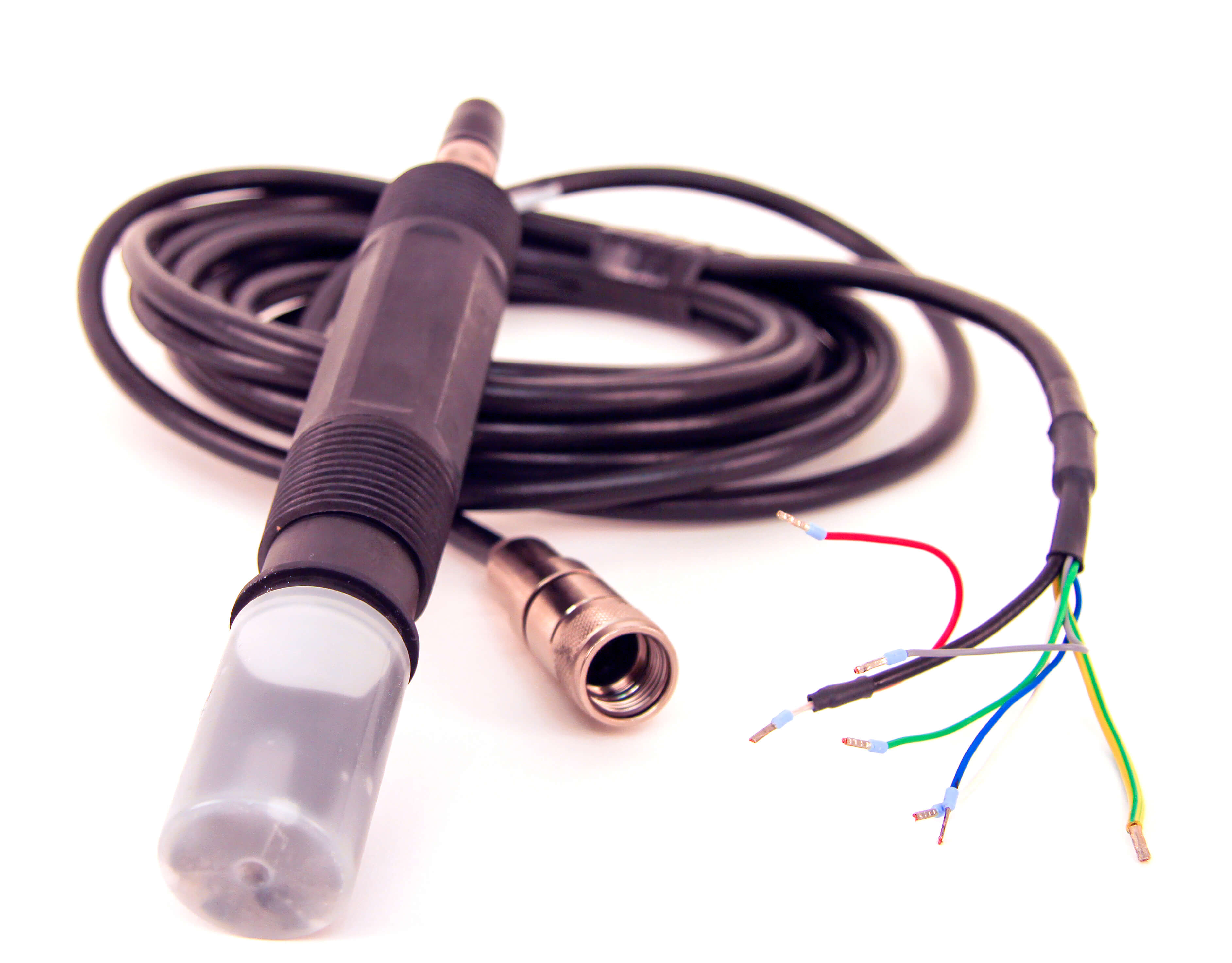

일체형 또는 Vario-pin 케이블은 센서에 내장된 NPT 쓰레드와 함께 숫자로 코드화된 케이블을 제공하므로 설치가 편리합니다. FU20용 Quick Release Adapter를 사용하면 세정 및 교정을 위하여 센서를 쉽게 제거할 수 있습니다.

당신에게 적합한 센서는?

현재 선택 가능한 5개의 와이드 바디 센서 디자인이 있습니다.

아래 차트를 사용하여 응용 프로그램에 가장 적합한 버전을 선택하는데 도움을 받으십시오.

Details

  • 아날로그 및 디지털 SMART 센서(SENCOM)로 사용 가능
  • 정확한 pH 및 ORP 동시 측정을 위한 솔리드 플래티늄 ORP/LE 전극
  • 정확한 온도 측정 및 향상된 pH정확도를 위한 일제형 Pt1000 엘레멘트
  • 기준 오염/ 독소 저항을 위한 이중 접합 및 긴 확산경로
  • 포화중합된 KCl과 이온트랩이 결합되어 있는 더블 정션이 내장된 포화 Ag/AgCl 리퍼런스 시스템은 화학적으로 불리한 환경에서도 리퍼런스 프로브의 수명을 연장시킵니다.
  • 다량의 중합 전해질과 다공성 PTFE 다이아프램 사용으로 수명 연장
  • 수명 연장용 FU20에서 양이온 차 기준 시스템 사용 가능
  • Variopin 커넥터 또는 일체형 케이블 옵션
  • 포괄적 설계를 통한 간편한 유지보수
  • 인라인 , 침적형, 오프라인(flow fitting), retractable hot-tap(FU20만 가능) 등 다양한 설치
  • FU20에 사용 가능한 Quick-Release adapter
  • 각 센서와 함께 제공되는 교정 인증서
  • PH20과 FU24의 특허된 압력 보상
  • 제한된 양의 고체가 있는 어플리케이션에 사용가능한 견고한 디자인의 돔 형 모델과 많은 양의 고형물이 존재하는 어플리케이션에 사용하는 평면 모델의 두 가지 버전 제공

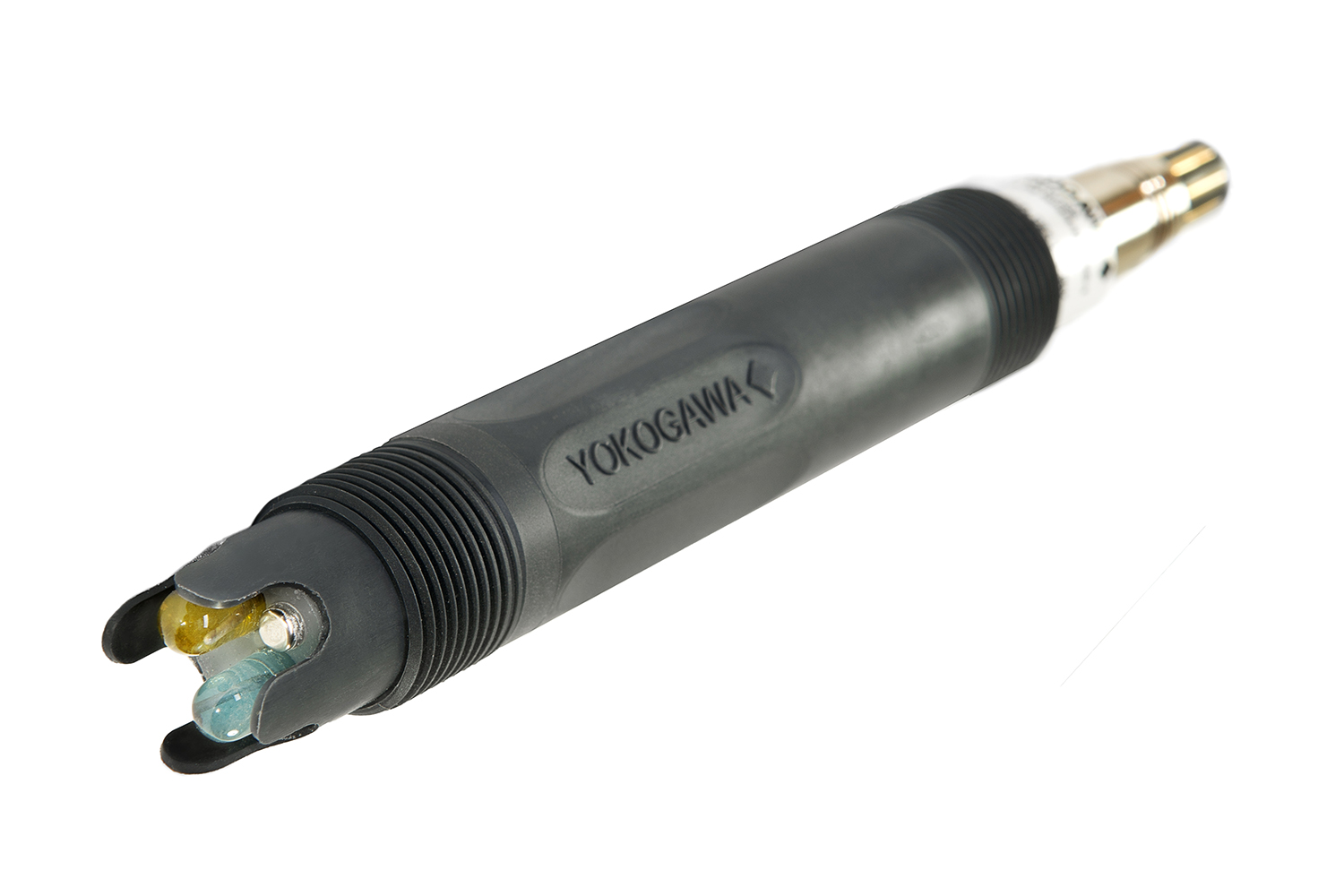

일체형 센서인 FU20은 "Simply the best"라는 Yokogawa의 모토를 센서 기술에 적용한 방법을 보여줍니다.  와이드 바디 센서는 (직경 26 mm)  깨지지 않는 PPS40GF (RytonTM) 또는 PVDF 바디에 4개의 개별 구성을 포함하고 있습니다.  산업용 3/4" 테이퍼 나사가 있어서 설치가 간단하며 다량의 글리터 전해액과 더블정션 리퍼런스 시스템은 고갈과 오염 속도를 늦추므로 수명을 연장합니다. 이 시스템은 단순성이 정확하고 신뢰할 수 있는 pH 또는 Redox 측정이 가능하다는 것을 의미합니다. 즉, 90% 의 알려진 어플리케이션에서 이 센서는 탁월한 선택이 될 것입니다.

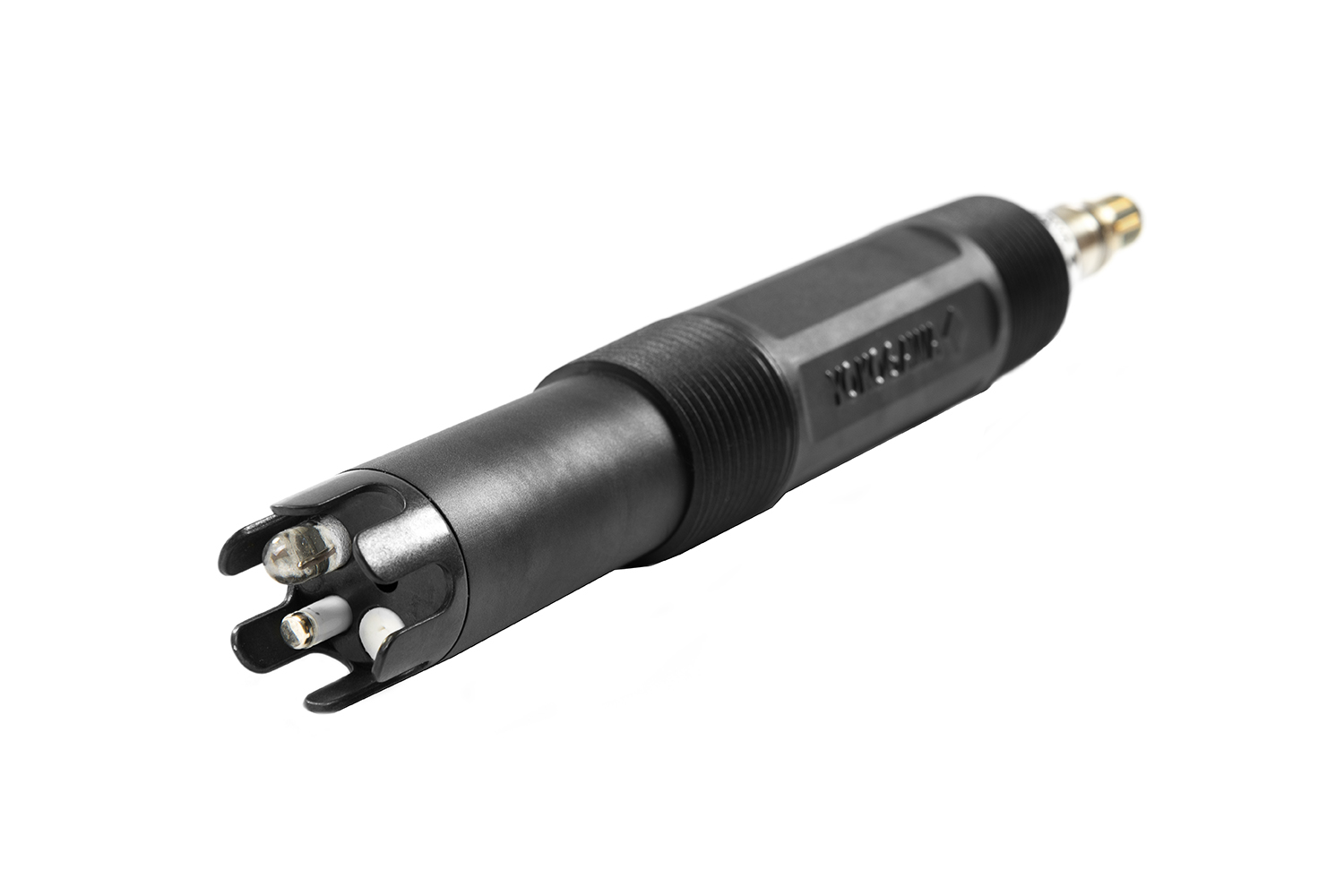

FU24는 까다로운 pH응용 분야에 적합한 내화학성 PPS 40GF 본체로 제작된 일체형 pH 및 ORP 센서입니다. 특히 압력이나 온도가 변동하는 어플리케이션 분야에서 특히 유용합니다. 이러한 공정은 공정유체가 빈번한 압력 또는 온도 변동의 영향을 받아 센서 안팎으로 움직이기 때문에 센서 수명이 단축됩니다. 그 결과 표준전해질의 빠른 탈염 및 희석이 발생되어 기준 전압이 변경되므로 표류 pH 측정이 이루어집니다.

Yokogawa의 특허기술인 Bellow 디자인 컨셉을 FU24 전극에 통합시킴으로써 강력한 압력 보상 메카니즘이 생성됩니다. 내장된 Bellow는 외부 압력과 즉각적인 내부 압력을 균일하게 유지하여 센서가 외부 압력 변화에 거의 영향을 받지 않게 합니다. Bellow의 장력으로 인한 약간의 과압으로 유체 유입을 방지하고 센세에서 양이온 흐름을 유지합니다.

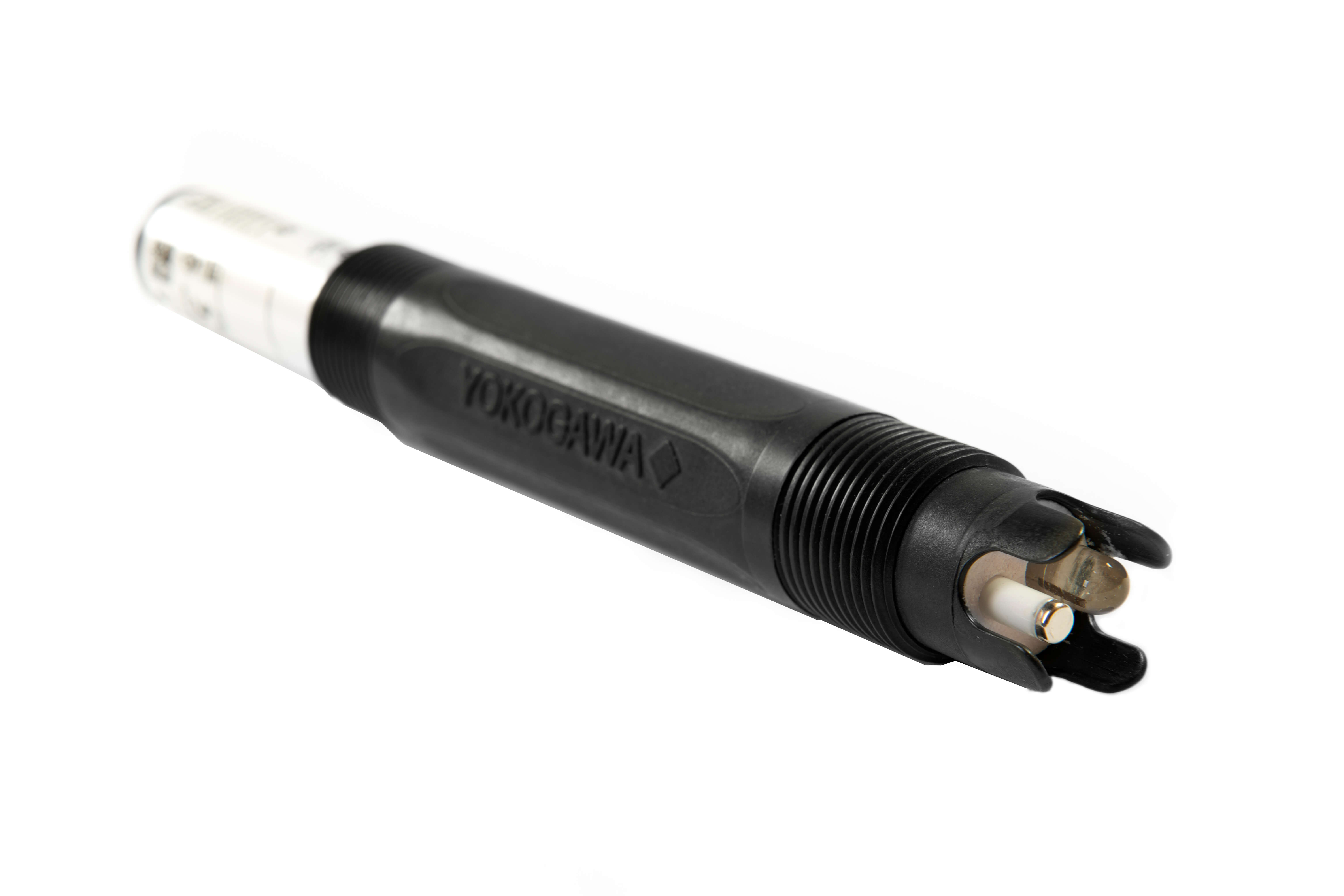

PH20은 공정온도와 압력의 변화에 대하여 특허 받은 보상 덕분에 "Tempress" 라고 별명이 붙었습니다. 이 간단한 기계적 특성을 통하여 센서의 정확도를 높이고 수명이 연장됩니다. 보정 패널은 다이아프램 걸리는 큰 차압을 방지하도록 유연해 집니다. 이렇게 하면 리퍼런스 접점과 관련된 대부분의 문제가 방지됩니다. PH20은 화학적 내성이 있는 PVDF로 만들어집니다. 리퍼런스 시스템은 오염 방지를 위하여 이중접합부와 겔화 전해질이 있는 Ag/Agcl 입니다. 백금 산화환원 전극은 용액 접지로 두배로 증가하며 정확성과 센서 진단 측정에 필수입니다.
