What Is a Distributed Fiber Optic Temperature Sensor?
Yokogawa’s DTSX product family is engineered with a variety of fiber optic sensing cables that provide continuous temperature sensing for long distances. Our fiber optic sensor temperature measurement solutions provide enhanced visibility into your process, allowing you to detect problems before major catastrophic events occur.
Traditional temperature measurements such as point measurements or IR cameras may not provide the same level of coverages as a continuous fiber optic temperature monitoring system. Operators need to efficiently and effectively measure and alarm process leaks, hot spots, cold spots, and fire detection in real-time over various lengths. Being able to identify these events within a timely fashion, indicate their specific location, and then be able to resolve these events immediately is paramount to smooth plant operation.
What Are the Benefits of Fiber Optic Distributed Temperature Sensors?
- DTSX gives you the insight needed to proactively prevent abnormal situations, reduce safety and fire risks, and identify irregular conditions and shifts in-process applications.
- Fiber optic sensing cable design offers high reliability, accuracy, and quick update times to ensure 24/7 monitoring of the fiber temperature sensor application with no downtime for maintenance.
- Watch the video to learn more.
More Information about Distributed Temperature Sensing
What is Distributed Temperature Sensing?
How Does DTS Work?
What is the Raman Scatter Principle?
-
DTSX1 Fiber Optic Heat Detector
DTSX1 is an all-in-one heat detection solution. It is a self-contained, ready-to-install solution.
-
DTSX3000
The DTSX3000 is the long range, high accuracy product, with a measurement range of up to 50km, a temperature accuracy of 0.01 °C, and 19" rack design.
-
DTSX200
- DTSX200 distributed temperature sensing
- Short range, low sampling resolution capable product
- Measurement range up to 6km
- 0.1 °C temperature accuracy
- 19" rack
Detalles
What Are Distributed Temperature Sensing Cables?
Distributed temperature sensing (DTS) measures temperature distribution over the length of an optical fiber cable using the fiber itself as the sensing element. Unlike traditional electrical temperature measurement (thermocouples & RTD), the length of the fiber optic cable is the temperature sensor. Distributed temperature sensing can provide thousands of accurate and precise temperature measurements over a long distance. Compared to traditional electrical temperature measurements, distributed temperature sensing represent a cost-effective method for obtaining accurate and high-resolution temperature measurement.
How Do Fiber Optic Temperature Sensors Work?

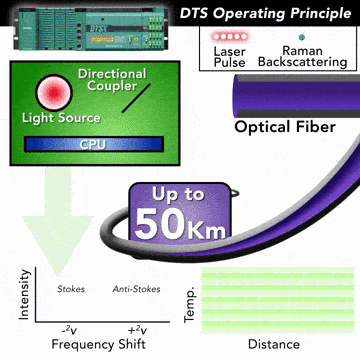

Yokogawa DTSX3000 measures temperature and distance over the length of an optical fiber using the Raman scatter principle. A pulse of light (laser pulse) launched into an optical fiber is scattered by fiberglass molecules as it propagates down the fiber and exchanges energy with lattice vibrations. As the light pulse scatters down the fiber optic cable, it produces stokes signal (longer wavelength) and anti-stokes (shorter wavelength) signal, of which both signals shifted from the launch of the light source. The intensity ratio of the two signals components depends on the temperature at the position where the Raman scatter is produced.
This temperature can thus be determined by measuring the respective intensities of the stokes and anti-stokes signals. Furthermore, part of the scattered light, known as the backscatter, is guided back towards the light source. The position of the temperature reading can thus be determined by measuring the time taken for the backscatter to return to the source.
Fiber Optic Sensing and the Raman Scatter Principle
All light interacts with matter! For example, imagine standing in a pitch-black garage with no external light source. Inside this garage is a bright red sports car. Needless to say, you cannot see the sports car or the color of the sports car itself. However, when you turn on the lights to the garage, you can immediately see the light source reflecting the bright red color off the car. The light that is bouncing off the red sports car is only bouncing off the "red" spectrum, therefore, your eyes see the sports car as, well, red.
Fiber optic temperature sensor principle: This phenomenon is also true when you shoot a pulse of light (laser pulse) off of a molecule, in this case, the fiberglass molecule in the optical fiber cable. When the light source enters the optical fiber cable, most of the light bounces (backscatter) back unchanged (no change in wavelength). However, a small amount of that light shifted/changed. That shift/change from the light source is called Raman Scatter. Since Raman Scatter is thermally influenced by temperature, the intensity depends on temperature. Distributed temperature sensing is capturing the shift/change from the propagating light pulse and measuring the intensities between the two signal components (stokes and anti-stokes).
Recursos
A belt conveyor fire detection solution employing the DTSX distributed optical fiber temperature sensor can greatly reduce crises that can threaten a company's survival.
Reducing waste in the separator and electrode drying furnaces with Yokogawa’s distributed temperature sensors ensure comprehensive monitoring of thermal events in real-time.
Temperature is essential to the pasteurization process in beer manufacturing. Yokogawa’s fiber optic temperature sensor DTSX provides precise temperature measurements throughout the tunnel, eliminating blind spots.
Temperature Monitoring Solution for
Quick Detection of Fires in Fume Ducts
Risk management is crucial when expanding your business.
With industrial and economic development comes increasingly large and advanced power plants and factories. Nevertheless, we find many cases where the original cables, cable tunnels, and other components of the power infrastructure have languished under continuous operation.
Hot Spot Monitoring for Safety with a Fiber Optical Temperature Sensor
Temperature Monitoring Solution forMaximum VSD Operating Efficiency
By embracing innovative solutions like Yokogawa’s DTSX, organizations can future-proof their operations, drive efficiency, and unlock new levels of performance and profitability in bulk material handling in the mining industry.
