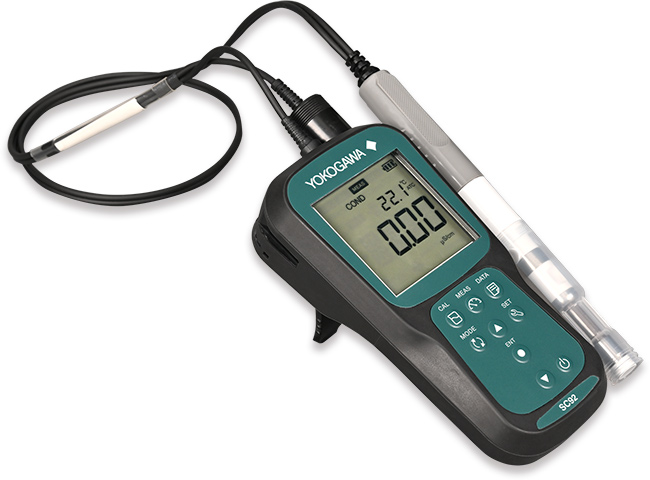

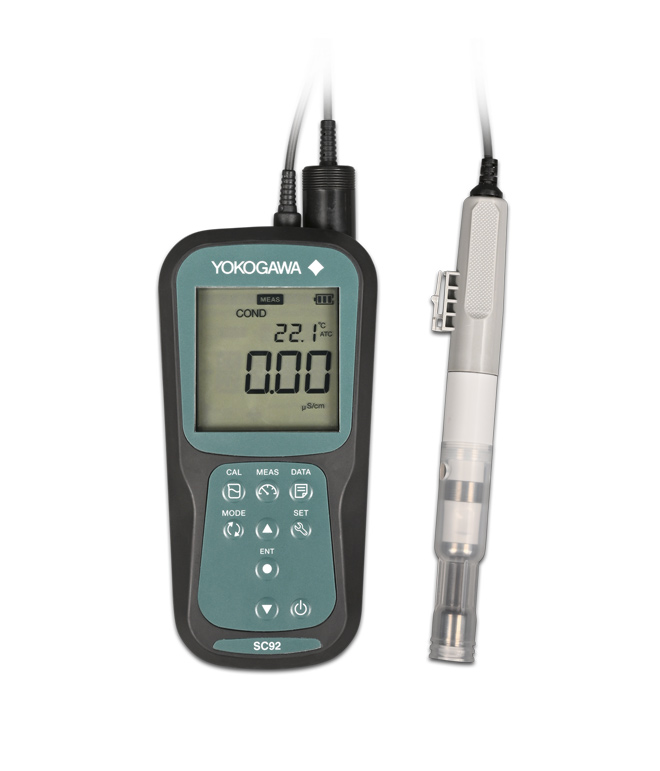

Portable Conductivity Meter SC92

Wide Measuring Range, Your Daily Measuring Partner

튼튼하고 사용하기 쉬운 휴대용 전도도 측정기(SC 미터)

순수한 물부터 바닷물까지 다양한 전도도를 측정할 수 있습니다

오랫동안 판매되던 개인 전도도 측정기가 휴대용 전도도 측정기로 새롭게 디자인되어 사용 편의성이 향상되었습니다.
애플리케이션에 적합한 센서를 연결하면 0-2 S/cm의 전체 전도도 범위를 측정할 수 있으며, 0-2 µ S/cm 또는 저항을 측정할 때 정확도를 유지할 수 있습니다.
이 휴대용 전도도 측정기는 본체와 센서 모두 IP67(방수 및 방진) 구조로 되어 있습니다. 더러우면 물로 세척할 수 있습니다. 범용 타입 센서와 고순도 수분 측정 센서는 플라스틱 본체가 있어 우발적인 손상을 방지합니다. 검출기를 본체에 부착할 수 있어 휴대가 간편합니다.
대형 백라이트 디스플레이는 메인 화면에 측정값, 안정성 확인 표지판, 전극 감도 수준 표시기를 표시하여 측정을 지원하는 정보를 쉽게 읽을 수 있게 해줍니다.
견고한 설계로 인해 인라인 전도도 분석기 검증 및 그랩 샘플 분석, 식수 및 순수 물의 품질 관리 및 실험실 분석에 적합합니다.



Anytime, Anywhere

Quality control for pure water and drinking water / Lab Analyses
Quality Control for Pure Water and Drinking Water / Lab Analyses

Details

Features

  • Large, Backlit, Easy-to-Read Display
    글자들은 크고 어두울 때와 낮에 읽기 쉽습니다.
  • Stability Check Function for Accurate Calibration/Measurement
    측정이 안정화되었을 때 알려주고 올바른 값으로 보정/측정할 수 있게 해줍니다.

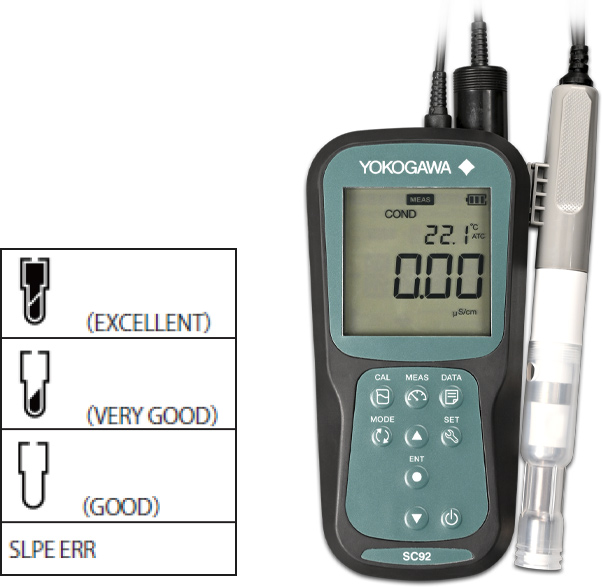

  • Electrode Sensitivity Level Indicator Function Visualizes the State of the Detector
    연결된 검출기의 민감도는 보정 데이터를 기반으로 이해하기 쉬운 아이콘을 사용하여 표시되며, 이는 센서 교체 시기를 알 수 있도록 도와줍니다.
  • Durable Plastic Sensor and Build-in Sensor Holders
    즉시 꺼내서 측정할 수 있습니다. 부피가 적고 휴대하기 편리합니다.

Large, backlight, easy-to-read display.

Excellent grip, with a stand on the back.

  • Various Buttons for Ease of Use
    인터페이스는 직관적이고 이해하기 쉬우며, 버튼 하나만 누르면 보정 모드/측정 모드/데이터 표시 모드를 전환할 수 있습니다.
  • Excellent Grip, with a Stand on the Back
    쉽게 잡을 수 있는 형태로 미끄러지거나 떨어지지 않고 한 손으로 쉽게 측정할 수 있습니다.



안정적이고 정확한 측정을 가능하게 하는 YOKOGAWA의 기술

  • 순수 물의 전도도 측정
  • 식수 전도도 측정
  • 실험실 분석을 위한 전도도 측정
  • 인라인 전도도 분석기의 검증 및 샘플 보정

Specification

  SC92
Measurement Conductivity or resistivity in aqueous solution
Measuring range Conductivity
(min. to max. range)
With a general-purpose type sensor: 0ー20.00 µS/cm to 0ー200.0 mS/cm
With a sensor for high purity water measurement: 0ー2.00 µS/cm to 0ー200.0 µS/cm
With a chemical-resistant type sensor: 0ー20.00 µS/cm to 0ー200.0 mS/cm
With a sensor for high conductivity measurement: 0ー200.0 µS/cm to 0ー2.000 S/cm
Resistivity 0.001 MΩ・cm to 40.0 MΩ・cm (with a sensor for high purity water measurement)
Temperature 0 to 80℃ (sensor combination dependent)
(0 to 50℃ when the entire sensor is submerged in water)
Repeatability
(Combined with sensors)
Conductivity ±2% of full scale. (±5% of full scale of the 0ー200 mS/cm range for general purpose type sensor
Temperature accuracy Simulated input for main unit only; ±0.5 ℃±1 digit
Combined with sensors; ±1.0 ℃ (0 to 70 ℃), ±1.3 ℃ (above 70℃)
Temperature compensation 0.00 to 10.00% /℃ (reference temperature conversion: 15 to 30℃)
Functions Display Conductivity or Resistivity and solution temperature (simultaneously), Electrode sensitivity level indicator,
Stability check function, Data Memory(500 points)
Construction IP67
Connectable sensor SC92SN
Power source 2 x AA batteries (LR6), Auto power off function (time configurable: 1 to 30 minutes)
Battery life Approximately 500 hours
