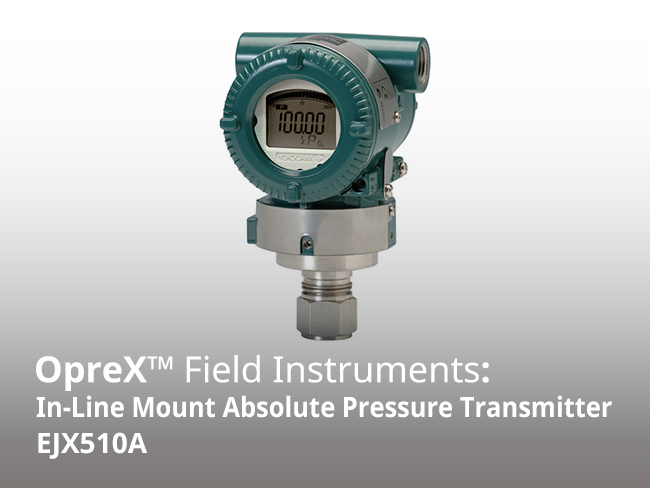

EJX510A

EJX-A 시리즈는 Yokogawa의 프리미엄 성능을 가진 DPharp 전송기입니다. 2004년 출시되어 까다로운 어플리케이션에 필요한 성능 및 안정성을 제공합니다. EJX-A 시리즈의 성능은 DPharp 압력 전송기 중 가장 우수한 제품입니다.

EJX510A는 이 시리즈의 인라인 절대 압력 전송기입니다.

EJX510A의 기능은 다음과 같습니다.

  • ± 0.04 % 정확도
  • 15 년 당 ± 0.2 % 안정성
  • 90ms 응답 시간
  • 10,800 psig 최대 과압
  • Exida 및 TUV SIL 2/3 인증
  • LPS (로컬 Parameter 설정)

EJX510A가 어떻게 당신의 수익증대에 도움되는지 경험 해보세요.

Details

EJX510A In-Line Mount Absolute Pressure Transmitter-Overview

Plants run better with Yokogawa differential pressure transmitters.

At it's heart, Yokogawa's differential pressure transmitter with DPharp digital sensor offers the performance and device intelligence needed to get greater insight into your process.



Digital Performance

Digital Performance

Yokogawa's DPharp digital sensor offers twice the performance and stability of the competitor's analog sensors. The DPharp uses the latest in IC Chip-style design and manufacturing technology. Analog sensors are based on older design technology. Although analog sensors are good, the modern DPharp sensor out performs them. A Yokogawa transmitter with DPharp digital sensor will give you the consistent, reliable, accurate measurement you need.

Poor Performance = Lost Money



Signal Characterization

Signal Characterization

Signal characterization is a versatile function available on all Yokogawa pressure transmitters. The function is used to compensate the analog 4 to 20 mA output signal for non-linear applications. Such applications include tank strapping or flow measurements; but, it can be used in any application where the relationship between the pressure input and the desired output signal are known. This feature can use up to 10-points.

Greater Flexibility = Found Money



Local Indicator

Local Indicator

All of the process variable's measured by Yokogawa's transmitter can be displayed on the easy to read local indicator. The indicator can display any of the variables measured (DP, SP, Capsule temperature); alarm codes with short text; and a sweeping bar graph to give a graphical representation of the process. Fully programmable, the indicator is customizable for your needs. Unlike competitor's transmitters, the indicator is not driven off the 4 to 20 mA analog signal, but, exist on a separate circuit. This allow the display to operate independently from the output signal, so it can indicate information that maybe more useful at the transmitter location.

More information = Found Money



Standard Diagnostics

Yokogawa's transmitter has 40 self-diagnostic checks to ensure that everything is running smoothly within the transmitter. But, all transmitters on the market have a level self-diagnostic checks. However, Yokogawa has two that are not offered by competitors. First, the transmitter features a patented Back-check Technology that reverse checks all calculations in real-time. Second, the DPharp sensor is an active sensor. This means that the sensor is constantly supplying a signal even when the process has not changed. If the signal is lost from the sensor, the transmitter knows there is an issue. Competitor's analog sensors are passive. They do not supply a continual signal, so, is the sensor still working when there is no signal?

Good Diagnostics = Less Surprises



Advanced Diagnostics

Advanced Diagnostics

Reduce unscheduled maintenance by 60%.
Predictive impulse line blocking and stream tracing diagnostics lets you see problems before they happen.

Rugged Construction

Rugged Construction-EJX510A

Ruggedly constructed differential pressure transmitter can help your plant reduce failures. Yokogawa pressure transmitters have construction features that are designed to allow it to outlive your plant.

Note: For conformance to NACE MR0175/MR0103, please refer to General Specifications of each model.

Ruggedness = Reliability



Independent Verification

Independent Verification

The Yokogawa pressure transmitter series' performance and reliability has been verified by independent third parties from around the world.



Functional Safety

Functional Safety

All Yokogawa pressure transmitters are designed and certified to IEC61508:2010 Parts 1 through 7 and IEC61511:2004 Parts 1 through 3. They are certified for single transmitter use in SIL 2 safety applications and dual transmitter use in SIL 3 safety applications with no special option required. With Yokogawa's transmitters, no longer will you have to maintain two seperate inventories - one for production applications and one for safety applications.

Functional Safety = Reliability



Active Sensor Technology

Active Sensor Technology

The DPharp sensor is an active sensor. This means that the sensor is constantly supplying a signal even when the process has not changed. If the signal is lost from the sensor, the transmitter knows there is an issue. Competitor's analog sensors are passive. They do not supply a continual signal, so is the sensor still working when there is no signal? An active sensor is inherently safe.

Inherently Safe = Reliability



Patented Self-check System

Patented Self-check System

Yokogawa's pressure transmitters as a patented real-time reverse check of the signal to ensure all calculations are preformed correctly. This system ensures that the transmitter is converting the signal from the sensor into the analog signal and digital protocol correctly.

Inherently Safe = Reliability

Yokogawa's DPharp pressure transmitters offer long-term stability and diagnostics to make your maintenance routine easy.



Extended Calibration Intervals

Extended Calibration Intervals

Yokogawa's pressure transmitters have a long-term stability under all operational conditions. As you gain experience with these transmitters, you will be able to extend the time between calibration checks.

Quicker Maintenance = Less Downtime



Multiple Communication Options

Multiple Communication Options

Yokogawa offers several platforms to communicate to your transmitter.
FieldMate is a PC based communication platform that can communicate with your transmitter and manage your entire instrument inventory.
FieldMate HHC is a traditional hand-held platform that allows you to take that information into the field.
Forgot your HHC? No problem. The LPS feature on the transmitter allows you to update 9 parameters without the use of an HHC.

Quicker Maintenance = Less Downtime



Simple Troubleshooting

Simple Troubleshooting

When your transmitter is 'alarming', you do not have the time to look for the manuals and go through them trying to figure out what is wrong; you need to get the transmitter up and operating again as quick as possible. Yokogawa's pressure transmitters have a simple description of the error code available on the local display. This simple description may help you correct the problem and get back to making product quickly. If you need more help, the manual does have a full description of all codes and suggest corrective actions.

Quicker Maintenance = Less Downtime

EJX510A Overview

Refer to the General Specification sheet located under the 'Downloads' tab for detailed specifications.

Measurement Types
Primary Variable Absolute Pressure
Reference Accuracy
Primary Variable ±0.04% of Span
Stability (All Normal Operating Conditions)
Primary Variable ±0.2% of URL per 15 years
Response Time
Primary Variable 90ms
Rangeability
Primary Variable A Capsule: 25:1
B, C, or D Capsule: 50:1
Burst Pressure (Absolute)
A, B, or C Capsule 4,350 psi (30 MPa)
D Capsule 19,100 psi (132 MPa)
Specification Conformance
EJX-A Series ±3σ



EJX510A Capsule Ranges

EJX510A Capsule Ranges Code A

EJX510A Capsule Ranges Code B

EJX510A Capsule Ranges Code C

EJX510A Capsule Ranges Code D

Graphics not to scale

Valve Manifolds

Valve Manifolds

Yokogawa offers a range of valve manifolds and accessories for combination with the DPharp EJX and EJA series transmitters in partnership with AS Schneider-Germany and WIKA/Micro precision-India.

Learn More



Communicators

Communicators

Yokogawa manufactures a communicator for your needs. Yokogawa communicators are available for BRAIN Protocol, HART Protocol, FOUNDATION Fieldbus, PROFIBUS PA, ISA100, or Modbus. All out communicators are compatible with Yokogawa products as well as other products on the market.

Learn More



Remote Indicators

Remote Indicators

Yokogawa offers a range of loop powered and FOUNDATION Fieldbus remote indicators that can be used to locally monitor data from field instruments installed in difficult to access locations.

Learn More



Pressure Calibrators

Pressure Calibrators

The Yokogawa CA700 Portable Pressure Calibrator uses the same DPharp sensor technology as our EJA-E and EJX-A series pressure transmitters. It provides an accurate and efficient calibration and verification tool for any pressure transmitter or other type of field device.

Learn More



Communication Convertors

Yokogawa offers communication converters to convert secondary HART protocol variables to a 4 to 20 mA analog signal or all the HART variables to MODBUS RTU.

Learn More
