Precision Flow Monitoring with the YPP6300

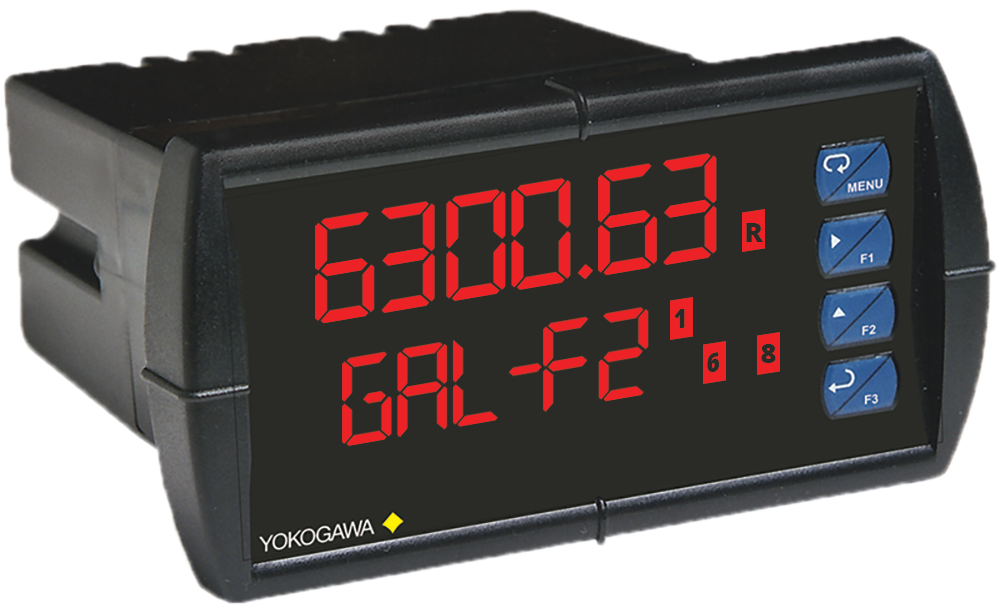

The Yokogawa YPP6300 Pulse Input Flow Rate/Totalizer is a cutting-edge digital panel meter designed for accurate flow measurement in demanding industrial applications. Engineered to process pulse inputs from flowmeters (open collector, NPN, PNP, TTL, switch contact, sine wave, or square wave), it delivers unmatched versatility. With a dual-line 6-digit display, Modbus RTU communication, and features like K-factor calibration, the YPP6300 is ideal for automation, oil & gas, and water treatment.
Detalles
Key Features & Benefits
Pulse Input Versatility
Supports open collector, NPN, PNP, TTL, switch contact, sine, and square wave inputs.
K-Factor Calibration
Easy calibration for precise flow measurement with flowmeter K-factors.
Dual-Line Display
Large 6-digit, sunlight-readable or standard display (0.60" & 0.46") for clear visibility.
Modbus RTU
Seamless integration with USB, RS-232, and RS-485 communication options.
Rugged Design
NEMA 4X, IP65 front for durability in harsh environments.
Free Software
PROPLUS software for easy operation, monitoring, and programming.
Technical Specifications
- Inputs: Pulse, Open Collector, NPN, PNP, TTL, Switch Contact, Sine Wave, Square Wave
- Display: Dual-line 6-digit (0.60" & 0.46"), standard or sunlight-readable display options
- Power Supply: Universal 85-265 VAC or 12/24 VDC
- Output Options: 2 or 4 relays, isolated 4-20 mA
- Transmitter Power: Isolated 24 VDC @ 200 mA
- Communication: USB, RS-232, RS-485 with Modbus RTU
- Enclosure: NEMA 4X, IP65 front
- Features: K-factor calibration, gate function for slow pulse rates, programmable display
Standard Display Options
| Product | Input | Output | Part Number |
|---|---|---|---|
| Pulse Flow Rate / Totalizer | 0-20, 4-20mA, +/-10VDC; 85-264 VAC | None | YPP6300-6R0 |
| Pulse Flow Rate / Totalizer | 0-20, 4-20mA, +/-10VDC; 85-265 VAC | 2 Relays | YPP6300-6R2 |
| Pulse Flow Rate / Totalizer | 0-20, 4-20mA, +/-10VDC; 85-265 VAC | 4-20mA Output | YPP6300-6R3 |
| Pulse Flow Rate / Totalizer | 0-20, 4-20mA, +/-10VDC; 85-265 VAC | 4 Relays | YPP6300-6R4 |
| Pulse Flow Rate / Totalizer | 0-20, 4-20mA, +/-10VDC; 85-265 VAC | 2 Relays & 4-20mA Output | YPP6300-6R5 |
| Pulse Flow Rate / Totalizer | 0-20, 4-20mA, +/-10VDC; 85-265 VAC | 4 Relays & 4-20mA Output | YPP6300-6R7 |
| Pulse Flow Rate / Totalizer | 0-20, 4-20mA, +/-10VDC; 12/24 VDC | None | YPP6300-7R0 |
| Pulse Flow Rate / Totalizer | 0-20, 4-20mA, +/-10VDC; 12/24 VDC | 2 Relays | YPP6300-7R2 |
| Pulse Flow Rate / Totalizer | 0-20, 4-20mA, +/-10VDC; 12/24 VDC | 4-20mA Output | YPP6300-7R3 |
| Pulse Flow Rate / Totalizer | 0-20, 4-20mA, +/-10VDC; 12/24 VDC | 4 Relays | YPP6300-7R4 |
| Pulse Flow Rate / Totalizer | 0-20, 4-20mA, +/-10VDC; 12/24 VDC | 2 Relays & 4-20mA Output | YPP6300-7R5 |
| Pulse Flow Rate / Totalizer | 0-20, 4-20mA, +/-10VDC; 12/24 VDC | 4 Relays & 4-20mA Output | YPP6300-7R7 |
SunBright Readable Display Options
| Product | Input | Output | Part Number |
|---|---|---|---|
| Pulse Flow Rate / Totalizer - SunBright Readable Display | 0-20, 4-20mA, +/-10VDC; 85-264 VAC | None | YPP6300-6H0 |
| Pulse Flow Rate / Totalizer - SunBright Readable Display | 0-20, 4-20mA, +/-10VDC; 85-265 VAC | 2 Relays | YPP6300-6H2 |
| Pulse Flow Rate / Totalizer - SunBright Readable Display | 0-20, 4-20mA, +/-10VDC; 85-265 VAC | 4-20mA Output | YPP6300-6H3 |
| Pulse Flow Rate / Totalizer - SunBright Readable Display | 0-20, 4-20mA, +/-10VDC; 85-265 VAC | 4 Relays | YPP6300-6H4 |
| Pulse Flow Rate / Totalizer - SunBright Readable Display | 0-20, 4-20mA, +/-10VDC; 85-265 VAC | 2 Relays & 4-20mA Output | YPP6300-6H5 |
| Pulse Flow Rate / Totalizer - SunBright Readable Display | 0-20, 4-20mA, +/-10VDC; 85-265 VAC | 4 Relays & 4-20mA Output | YPP6300-6H7 |
| Pulse Flow Rate / Totalizer - SunBright Readable Display | 0-20, 4-20mA, +/-10VDC; 12/24 VDC | None | YPP6300-7H0 |
| Pulse Flow Rate / Totalizer - SunBright Readable Display | 0-20, 4-20mA, +/-10VDC; 12/24 VDC | 2 Relays | YPP6300-7H2 |
| Pulse Flow Rate / Totalizer - SunBright Readable Display | 0-20, 4-20mA, +/-10VDC; 12/24 VDC | 4-20mA Output | YPP6300-7H3 |
| Pulse Flow Rate / Totalizer - SunBright Readable Display | 0-20, 4-20mA, +/-10VDC; 12/24 VDC | 4 Relays | YPP6300-7H4 |
| Pulse Flow Rate / Totalizer - SunBright Readable Display | 0-20, 4-20mA, +/-10VDC; 12/24 VDC | 2 Relays & 4-20mA Output | YPP6300-7H5 |
| Pulse Flow Rate / Totalizer - SunBright Readable Display | 0-20, 4-20mA, +/-10VDC; 12/24 VDC | 4 Relays & 4-20mA Output | YPP6300-7H7 |
Recursos
A common application for Yokogawa Corporation of America PROPLUS series is for monitoring & alarming. In these applications, the meter is not used as a primary controller, but a safety device. As such, Yokogawa added another safety feature called Interlock Relay.
Documentos y Descargas
Catálogos
- PROPLUS Series Digital Panel Meters & Controllers (1.4 MB)
- ProPlus Software Guide (395 KB)
- PROPLUS Series Presentation (5.5 MB)
- YPP6200 / YPP6300 Bulletin (1.3 MB)
- PROPLUS Series Register Tables (661 KB)
Manuales
Especificaciones Generales
- PROPLUS Series Modbus® Register Tables (661 KB)
- YPP Flow Rate/Totalizer Data Sheet (1.8 MB)
Software
- PROPLUS Series Software Guide (395 KB)
Información Técnica
- PROPLUS Series Safety Interlock (187 KB)
