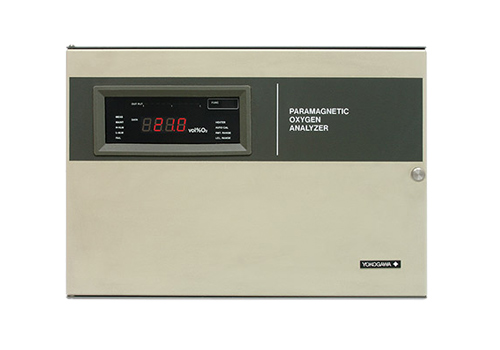

자기식 산소 분석계 MG8G는 자석이 기체 산소를 끌어들이는 특성을 기반으로 산소 농도를 측정합니다. 지르코니아 산소 분석계는 인화성 기체 혼합물의 산소를 측정할 수 없지만 MG8G는 인화성 기체 혼합물의 산소 농도를 측정할 수 있습니다.
적절한 샘플링 시스템을 사용하여 고온, 고압, 고분진 또는 고습도 기체 혼합물의 산소도 측정 가능합니다.
이 센서는 당사의 오랜 현장 경험을 바탕으로 개발된 자력 비례 유속 시스템으로 완전히 새로운 구조를 가지고 있습니다. 이 변환기는 사용이 간편하고 높은 신뢰성을 제공합니다.
Details
이 변환기는 향상된 시스템 신뢰성, 유용한 기능성 및 사용 편의성을 제공합니다.
- 대형 디스플레이의 간편한 조작 : 아날로그 바 그래프, 대형 디지털 LED 디스플레이, 상태 표시
- 원터치 교정, 자동 교정
- 다중 자가 진단 기능
이 검출기는 세계 최초의 자기 비례 유량 시스템을 사용합니다. 이 독특한 기술은 30년 이상의 상자성 산소 분석계 경험을 바탕으로 하고 있습니다.
- 신뢰도 높은 센서 : 긴 수명, 안정된 써미스터, 3초 이내 90% 응답, 최소 드리프트
- 이동식 파트가 없는 구조
- 간섭 가스 보정 기능 : ± 1% F.S.의 우수한 선형성과 반복성
Measurement object | Oxygen concentration in gaseous mixture |
Measurement system | Paramagnetic system |
Measurement range | 0-5 to 0-25 vol%O2, 3 range can be programmed |
Analog output signal | 4 to 20 mA DC (load resistance; Max. 550Ω) |
Contact output | Fail; 1 point, open or closed when error occures, user configurable Maintenance status; 1 point, closed during maintenance Range answerback or Hi/Lo alarm; 2 points, normally de-energized |
Contact input | Remote range switching, calibration start |
Calibration method | Automatic calibration, semiautomatic calibration, manual calibration |
Calibration gas | Zero gas; N2 gas Span gas; Dry air |
Auxiliary gas pressure | N2 gas, 180 kPa(Approx. 35 ml/min) |
Sample gas condition | Gas flow; 200 ml/min ±10% Gas temperature; 0 to 50℃ Humidity; No moisture condensation in the flow path or the sensor |
Ambient temperature | -5 to 55℃ |
Installation | Indoor, panel or wall mounting |
Power supply | 100-115 V AC, 50/60 Hz or 200-240 V AC, 50/60 Hz |
Repeatability | ±1% or less of F.S. |
Linearity | ±1% or less of F.S. |
Response time | 90% response within 3 sec (measured gas flow rate: 200 ml/min.) |
Zero drift | ±1.5% or less of F.S./Week |
Span drift | ±2% or less of F.S./Week |
