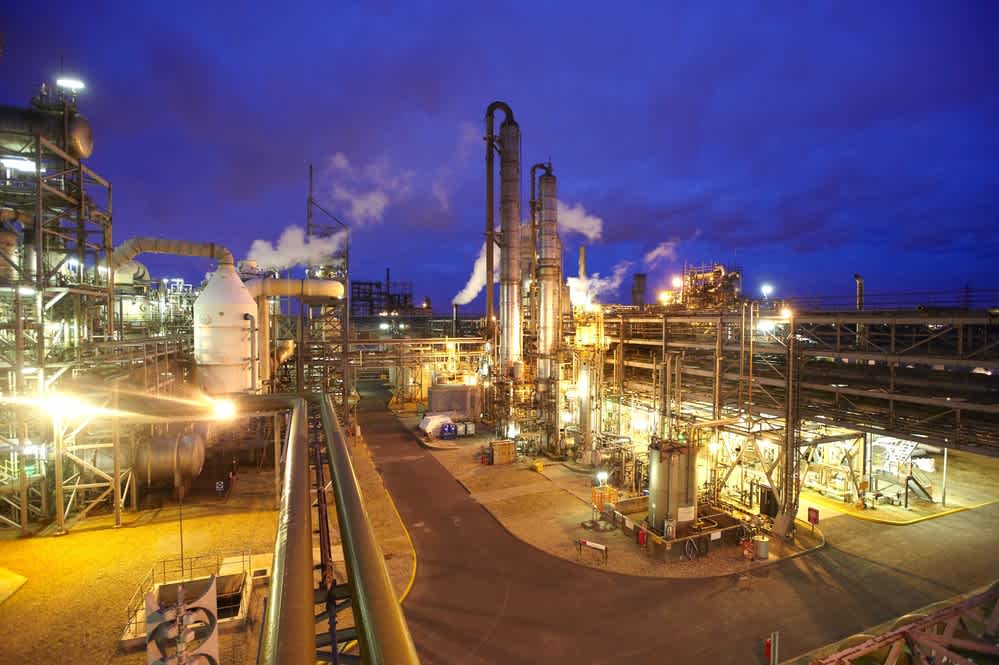

Lucite International is .a global leader in the design, development and manufacture of acrylic-based products for use primarily in bathroom and kitchen fittings. One of its plants that produce high-quality acrylics for use primarily in bathroom and kitchen fittings, formerly relied on a Honeywell PlantScape Batch control system that ran on Windows NT4 servers. Due to the difficulties of maintaining this legacy system, Lucite opted for its replacement. Through this change, the company aimed to achieve continuous improvements in the areas of plant safety, worker health, environmental protection, and cost performance.
Toward this end, Lucite evaluated the system reliability, lifetime support, and engineering capability of various control system vendors and decided on a Yokogawa CENTUM VP solution. The Yokogawa Service Department successfully installed this system within a short period of time.

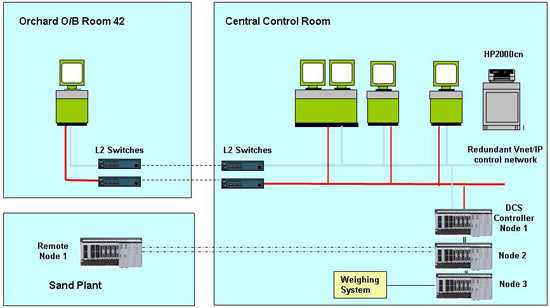

Lucite System Configuration
The Challenges and the Solutions
1. Project execution
Due to the age and condition of the legacy system, the project team could not find the existing system configuration and detailed specifications by proper documentation. However, by working through the system one section at a time, Yokogawa and Lucite engineers were able to collect all of the configuration data and transfer it to CENTUM VP. This approach allowed Yokogawa to develop an excellent relationship with the Lucite project team and gave Lucite confidence in Yokogawa's capabilities as a solution provider. As a result of careful planning and preparation, the project team was able during a short 14-day plant shutdown period to remove the PlantScape system and install, start-up, and commission the new CENTUM VP system.
2. Efficient batch operations
The overall competency of Yokogawa's engineering team, particularly in the area of batch applications, was well appreciated by the Lucite project team. The CENTUM VP Batch package can handle everything from recipe management to batch report handling and unit management. Its capabilities are superior to those of the system that it replaced, and it is much easier for the Lucite engineers to use, ensuring error-free batch operations. The package has a function that shows the operation procedure, current step, and current phase during normal operations, ensuring very high production efficiency and safe operation. In addition, the ergonomic design of the CENTUM VP human-machine interface (HIS) helps improve operational efficiency. Lucite is very happy with the high reliability, availability, and flexibility of the CENTUM VP system, and has experienced no major system failures since this system was installed.
3. Integration with weighing system
Integration with the weighing system in use at this plant is very important for batch operations. The weighing data is essential for the tracking of batch operations and management of raw materials. Data from the weighing system is received via a Profibus interface. An operator can monitor this on a graphic display and confirm its status before starting a batch operation. The visualization of all operation data helps improve quality.
Ray Jones, a Technology Manager, had the following to say about the new system: "Yokogawa's CENTUM is a very flexible system and easy to use. Settings for control strategy changes, recipe settings for new products, and other modifications can be easily configured from an engineering station in the engineering department."
Mr. Jones added, "We are planning to upgrade the existing safety system and to integrate all systems in our plant for safer operations and more sustainable manufacturing. We have a five-year engineering service contract with Yokogawa and are working closely together with them."
CENTUM Batch package
The CENTUM Batch package provides powerful, scalable solutions for continuous, batch, and hybrid applications. This package complies with the ISA-88 and IEC-61512 batch control standards and provides recipe management, process management, and unit supervision functionality. It complements the field-proven CENTUM VP system, which features completely redundant real-time controllers offering an availability of 99.9999999 percent ("seven 9s"). The batch recipe management, scheduling, and production information management functions can also be easily integrated into manufacturing execution systems (MES) and supply chain and enterprise management systems to meet the rising need for leaner and more agile manufacturing operations.
Yokogawa has been serving the bulk chemical market globally and is the recognized leader in this market. With products, solutions, and industry expertise, Yokogawa understands your market and production needs and will work with you to provide a reliable, and cost-effective solution through the lifecycle of your plant.
Chemical plants rely on continuous and batch production processes, each posing different requirements for a control system. A continuous process calls for a robust and stable control system that will not fail and cause the shutdown of a production line, whereas the emphasis with a batch process is on having a control system that allows great flexibility in making adjustments to formulas, procedures, and the like. Both kinds of systems need to be managed in available quality history of product, and to be able to execute non-routine operations. With its extensive product portfolio, experienced systems engineers, and global sales and service network, Yokogawa has a solution for every plant process.
