Benchtop CQ1 Confocal System

With its compact footprint and lightweight, benchtop design, there is no need for a darkroom or specialized setup for the CellVoyager CQ1. The unit provides rich feature extractions, facilitating sophisticated cellular image analysis, and while the Nipkow Spinning Disk Confocal Technology allows high speed scanning, it reduces phototoxicity and photobleaching.

  • Easy to use, intuitive, simple acquisition software increases productivity
  • Compact design contains multiple, fully integrated functions
  • CSU W-1 confocal spinning disk technology results in higher scanning speeds and higher quality images
  • Systems open platform allows for integration for laboratory automation
  • Supports the CellPathfinder high content analysis system


Upcoming Events

Enables measurement of spheroids, colonies, and tissue sections

  • No need to remove cells from the culture dish, in contrast to traditional flow cytometry
  • Nipkow spinning disk confocal technology allows high-speed yet gentle 3D image acquisition
  • Rich feature extraction to facilitate sophisticated cellular image analysis
  • Wide field of view and tiling capability enables easy imaging of large specimen

Enables analysis of time-lapse and live-cell

  • High precision stage incubator and low phototoxicity of our confocal makes the analysis of time-lapse and live-cell are possible
  • Max. 20fps option for fast time-lapse*1

Blue Spheroid Z StackHigh-quality image and similar operability to a traditional flow cytometer

  • Integration with CellPathfiner software can provide powerful analysis displayed in real-time with image acquisition
  • Usable high-quality image as confocal microscope image.
  • Interactive graphs make it easy to trace back the data points

Open platform

  • Connectable with external systems via handling robot*2
  • Expandable to the integrated system as image acquisition and quantification instrument
  • FCS/CSV/ICE data format readable by third-party data analysis software
  • A variety of cell culture and sample dishes are applicable

Compact footprint, lightweight bench-top device; no need for a darkroom


Yokogawa Life Science Twitter Yokogawa Life Science Facebook Yokogawa Life Science Linkedin Yokogawa Life Sciences YouTube

*1 Option
*2 Contact to CQ1 partner for more information


CQ1Multiple functions fully integrated into a compact box

Compact design contains fully integrated functions to offer an easy-to-handle confocal imaging system, without a need for complicated system integration. You only need to set a sample and run the software. A user-friendly interface and versatile functions support your measurement and analysis.

Principles of the Microlens-enhanced Nipkow Disk Scanning Technology

A Nipkow spinning disk containing about 20,000 pinholes and a subsidiary spinning disk containing the same number of microlenses to focus excitation laser light into each corresponding pinhole are mechanically fixed on a motor, and very rapidly rotated. As a result, a high-speed raster scan of the excitation lights on the specimen can be achieved. The pinhole and microlenses are arranged on each disk in our proprietary design to optimize the raster scan. Multi-beam scanning not only increases scanning speed but also results in significantly lower photobleaching and phototoxicity because multi-beam excitation needs only a low level of laser power on the specimen to fully excite fluorescence.

CQ1 System integration with CQ1

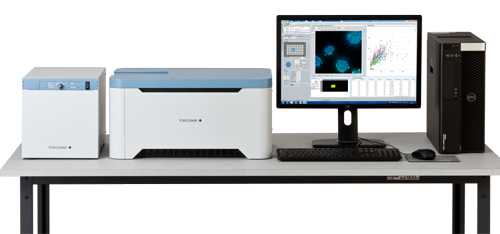

Example of setup

Example of setup


Item Specifications
Optics Microlens enhanced dual wide Nipkow disk confocal,
Phase contrast (Optional add-on)
Laser/Filter Laser: Choose 2-4 lasers from 405/488/561/640nm,
10-position Filter wheel (built-in)
Camera sCMOS 2560×2160pixel, 16.6×14.0mm
Objective lens Max.6 lenses
(Dry: 2x, 4x, 10x, 20x, 40x Long working distance: 20x, 40x
Phase contrast: 10x, 20x )
Sample vessel Microplate (6, 24, 96, 384 well), Slide glass,
Cover glass chamber*1, Dish (35, 60mm*1)
XY stage High-precision XY stage, designated resolution 0.1µm
Z focus Electric Z motor, designated resolution 0.1µm
Autofocus Laser autofocus, Software autofocus
Feature data Number of cells/cellular granules, Intensity, Volume, Surface area, Area, Perimeter, Diameter, Sphericity, Circularity, etc
Data format Image: 16bit TIFF file (OME-TIFF), PNG
Numerical data : FCS, CSV, ICE
Workstation Measurement and analysis workstation
Size/weight Main unit: 600×400×298mm 38kg
Utility box: 275×432×298mm 18kg
Environment 15 - 30oC、20 - 70%RH No condensation
Power consumption Main unit and Utility box: 100-240VAC 800VAmax, Workstation: 100-240VAC 650VAmax

*1 Under development  *2 Display is not included with CQ1 system

CellPathfinderCellPathfinder, high content analysis software (Optional)

  • Preset analysis menus for a variety of applications
  • Flexible graph functions to display analysis results
  • Direct link between chart and object image

Machine learning

3D analysis

Label-free analysis

The software learns the features of the sample objects collected by users.



Digital phase contrast function is a powerful tool to analyze unstained bright field samples.


Simple, intuitive measurement procedures

Compare CQ1, Flourescent Imaging, and Flow Cytometry

  CQ1 General fluorescent imaging Flow cytometry
Cell removal/suspension treatment Not necessary Not necessary Necessary
Cell image confirmation Possible Possible Not possible
Display feature data and graphs in real-time with imaging Possible Depends on devices Possible
3D data measurement Possible Not possible Not possible
Time-lapse Possible Not possible Not possible
  • CellActivision

    CellActivision uses Machine Learning Technology and a unique digital filter to recognise cells or colonies directly from label free images. CellActivision can also classify and quantify these cells by the use of sample libraries which are easily prepared by the user.

    See More
  • CellPathfinder

    Cell imaging software supports label-free samples and provides multiple graphing options with a streamlined, easy-to-use interface.

    See More



PhenoVista Biosciences is the leading provider of custom, imaging-based, phenotypic assay services. With a collaborative and scientifically driven project design and management approach, PhenoVista has a proven track record of delivering high-quality data from robust and scalable assays. PhenoVista’s key advantage lies in the ability of their industry-trained scientists to combine world-class understanding of diverse biological systems with cutting-edge quantitative imaging to deliver clear, actionable output data.


drug discovery and drug development for an interrelated set of disorders that emanate from type II diabetes and obesity


world-class team with an unmatched combination of imaging experts, assay development experience and the latest technologies and data analysis capabilities

Application Note
Application Note
Application Note

The CQ1 confocal image acquisition mechanism with the distinctive CSU® unit has a function to sequentially acquire fine cell images along the Z-axis and capture information from the entire thickness of
cells which include heterogenic populations of various cell cycle stages. In addition, saved digital images can be useful for precise observation and analysis of spatial distribution of intracellular molecules.
The CQ1 capability to seamlessly analyze images and obtain data for things such as cell population statistics to individual cell morphology will provide benefits for both basic research and drug discovery
targetingM-cell cycle phase.


List of Selected Publications : CQ1

Application Note

Cell stage categorized using FucciTime lapse imaging of Fucci-added Hela cells was conducted over 48 hrs at 1 hr intervals. Gating was performed based on the mean intensities of 488 nm and 561 nm for each cell. They were categorized into four stages, and the cell count for each was calculated.

Application Note
Yokogawa Technical Report
1.0 MB
The CQ1 has a top opening for robotic integration and is remote control mode-compatible with many robotic arms and grippers. To learn more, click here. ...
The CQ1 has a remote operation mode that allows third-party robotic scheduling software to open and load plates and run protocols for measurement and analysis. To learn more, click here. ...
The additional computer workstation that comes with the CQ1 enables simultaneous acquisition and analysis of data. To learn more, click here.   ...
For neurite growth, consider using either the 20x or 40x objective lens for maximum lateral resolution. To learn more, click here. ...
You can request a CQ1 hardware or software manual by emailing Yokogawa Life Science at
The utility box is an accessory unit that provides power and lasers to the CQ1. To learn more, click here.




Yokogawa's CQ1 open platform integrates seamlessly with Advanced Solutions BioAssemblyBot® 400. With laboratory automation becoming a standard in research, Yokogawa's high content confocal system's ability to work with robots like Advanced Solutions' BioAssemblyBot® 400 is essential to advancing laboratory automation.
