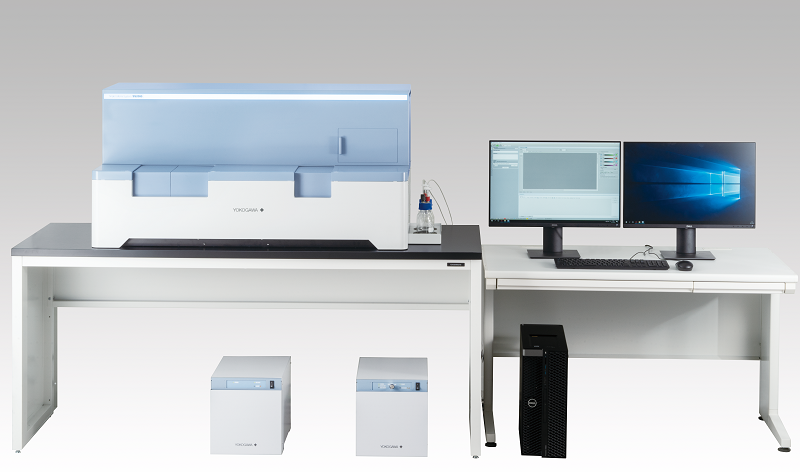

Subcellular Sampling System

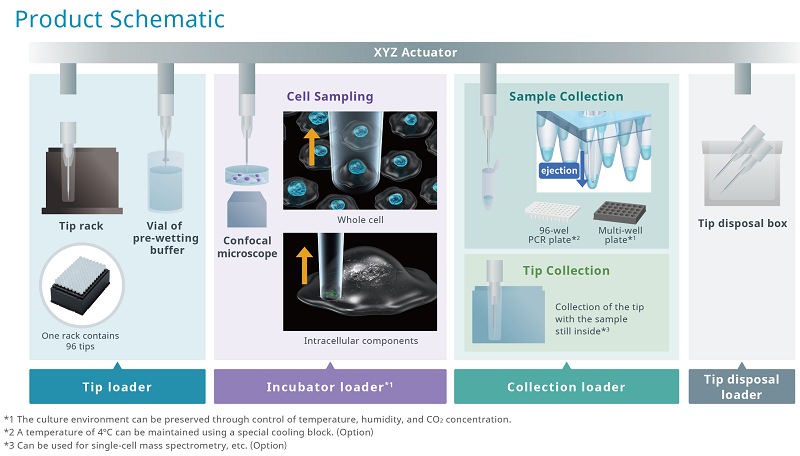

The SS2000 is a system that automatically samples specific regions of cells or whole cells at the single-cell level while imaging cells in culture with a confocal microscope. Because cells in culture do not need to be detached, positional and morphological information is maintained.
Each year, the American Society for Cell Biology (ASCB) Cell Bio event showcases and hosts a diverse global community of the brightest minds in cell biology. When at Cell Bio 2022, be sure to stop by booth 2326 to meet with the Yokogawa Life Science team. and discuss the latest on spinning disk confocal technology, single-cell solutions, and other lab automation innovations. We look forward to seeing you there!
- Automated operation.
- Precise pipetting control of location works.
- Sampling with location and morphology information.
- High resolution images and image analysis using confocal microscopy.
- Incubator function for maintaining cell activity.
- Intracellular components can be sampled at a single-cell level. This includes intracellular components that are difficult to sample by biochemical methods, such as organelles without lipid membranes.
- By sampling while maintaining the positional information, it is possible to sample and analyze the normal cells adjacent to the cancer cells and the normal cells located away from the cancer cells.
- Sampling is possible while maintaining morphological information. Allowing cells with different morphological changes can be sampled and compared.
- Different parts of a neuron, such as a cell body or axon, can be targeted for sampling.
- Single-cell cloning is possible from specific cells or cells with specific behavior under microscopic observation, such as transfected cells or virus-resistant cells. By combining various image analysis techniques, accurate and efficient cloning is possible.
- Multiple samples can be collected in the same well for analysis that requires a sample volume.
Unlike existing cell isolation devices, the SS2000 can not only isolate a whole-cell but also sample only the target site inside the cell. It is possible to sample cytoplasm and regions containing target organelles selectively.

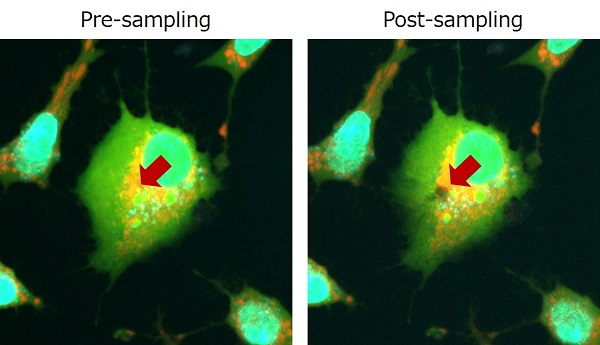

After staining of HeLa cell nuclei (blue), cytoplasm (green), and mitochondria (red), a mitochondria-rich region (arrow) of the cytoplasm was sampled.
Maintaining positional and morphological information of cells
Since only the target cells can be sampled without detaching the cells in culture, it is possible to sample while maintaining positional and morphological information.
Normal MDCK cells and green fluorescent-labeled abnormal MDCK cells were co-cultured at a 50:1 ratio. A normal cell adjacent to the abnormal cell exhibiting fluorescent signals (arrows) was sampled.
High usability samples
Samples can be collected on PCR plates and microplates and collect multiple samples in the same well. Samples can also be taken while being held in the glass tip without being ejected. The collection site has a cooling function to suppress sample degradation and an incubator function to maintain the culture environment. These samples can be used for genetic analysis, mass spectrometry, and single-cell cloning.
Live Cell Imaging with Confocal Microscopy
The SS2000 utilizes live-cell imaging products developed by Yokogawa. High-speed, high-resolution 3D imaging is possible using our unique confocal microscope technology. Samples can be taken from targeted cells under a confocal microscope in an incubator environment. Time-lapse photography is also possible, allowing dynamic changes in the target cell to be captured. Since it is possible to record moving images during sampling and images before and after sampling, it is possible to compare the results of analysis of collected samples with cell imaging data.

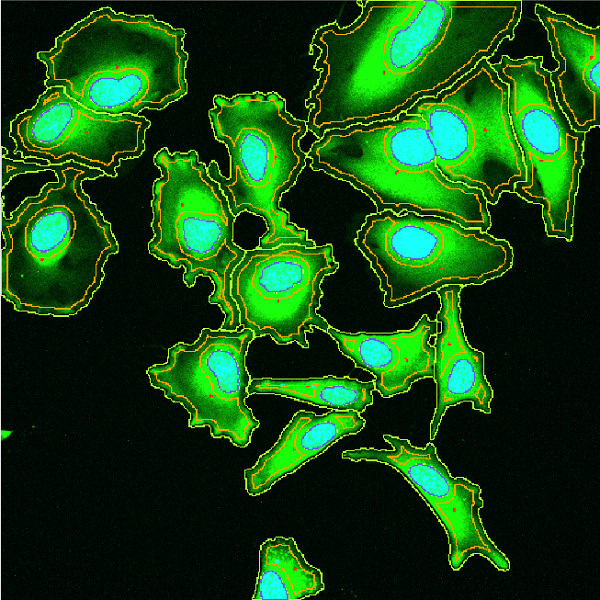

Target cells and sampling positions can be automatically selected by image analysis. (Targets can be automatically selected as shape of cells, size of nuclei, density of organelles etc.)
|Automatic sampling functions||Tip diameter||3μm, 5μm, 8μm, 10μm|
|Incubator loader environment||37℃, 5％CO2, humidified|
|Collection loader environment||37℃, 5％CO2, humidified (for culture) / 4℃ (for cooling)|
|Collection loader compatible vessels||96-well PCR plate (0.1mL, 0.2mL) Multiwell culture plate (96well)|
|Postioning precision of sampling||XYZ axial designated resolution: 0.1μm|
|Imaging functions||Confocal scanning method||Microlens enhanced dual wide Nipkow disk confocal|
|Incubator loader compatible vessels||When sampling cell:
φ35mm dishes *1
Microplate (6well, 24well, 96well)
|When observing cell:
φ35mm dishes *1
Microplate (6well, 12well, 24well, 48well, 96well, 384well, 1536well)
|Excitation laser wavelength||405, 488, 561, 640nm (Uniformizer installed)|
|Emission filter||Filter size: φ25nm, Maximum slot number: 10 (Electric switching), Adjacent switching speed: 100msec|
|Transmission illumination||Bright-field, LED source|
|Objective lens||Dry lens:4x, 10x, 20x, 40x Long-working distance lens:20x, 40x
Note that only the 40x dry lens can be used for cell sampling.
|Z focus||Electric Z motor, designated resolution:0.1μm|
|Electric stage||XYZ axial designated resolution:0.1μm|
|Camera||sCMOS camera 2,000 x 2,000pixel Pixel size:6.5 x 6.5μm|
|Other||Special purpose workstation||Workstation for sampling, measurement, analysis, 24 inch display x2|
|Measurement software||Measurement functions (2D, 3D, Time-lapse, Map imaging), Viewing measurement and sampling data, Reporting functions (Image data, Video data), Whole cell sampling, Intracellular component sampling|
|Analysis software||Analysis functions (3D, Tile, Label-free, Texture analysis, Deep Learning, Gating), 3D viewer, Graphing functions, Reporting functions(Image data, Video data, EC50, IC50, Z'-factor)|
|External dimensions, Weight||Main unit: W1,217 x D643 x H595 mm, 145kg
Utility box: W275 x D432 x H298 mm, 18kg
Gas mixer: W275 x D432 x H298 mm, 10kg
Special purpose workstation: W172 x D471 x H414 mm, 14kg
Display: W531 x D500 x H166 mm, 5.6kg
|Operating environment||Temperature: 15 to 30℃
Humidity: 30 to 70％RH no condensation
|Power consumption||Main unit, Utility box and Gas mixer: 1,200VAmax
Display: 42VAmax x 2
|Data formats (Measurement software)||Captured images : 16bit TIFF (OME-TIFF, TIFF)
Output image data : TIFF, PNG, JPEG
Output video data : WMV, MPEG4
Data formats (Analysis software)
|Numeric data: CSV
Output image data: TIFF, PNG, JPEG
Output video data: WMV, MPEG4
*1 A sample holder is required, and with it, up to 3 samples can be installed.
*2 A sample holder is required, and with it, up to 4 samples can be installed.
