The Single Line Sample Panel is engineered to safely condition steam, water, or other non-hazardous process samples for accurate analysis. By integrating a dedicated cooling water system, the panel effectively reduces both sample temperature and pressure to safe, controlled levels—ensuring reliable, representative sampling while protecting personnel and equipment. Available in both high- and low-pressure configurations, the panel is capable of handling process conditions up to 3030 psig and 1000°F, making it suitable for a wide range of industrial and power generation applications.

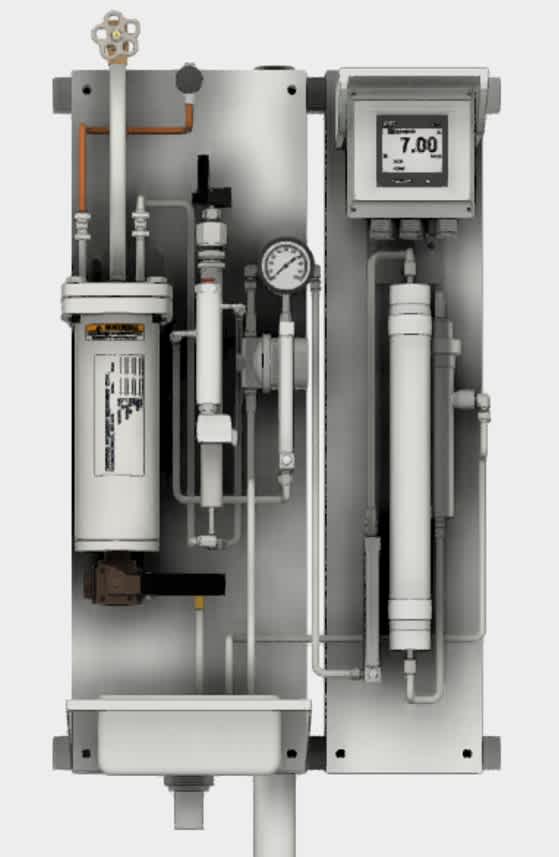

General Sample Panel Components
- Sample inlet isolation valve
- Total flow indicator
- Primary sample cooler
- 3-Way cooling water valve inlet with drain
- Glove valve on cooling water outlet
- Back pressure regulation valve
- 304SS sample sink
- Yokogawa FLXA402 analyzer and flow-through olders pre-mounted and tubed
- All components mounted on 20n. W x 36in. H T304SS backplate
- Sample tubing throughout is SA249, T316SS
Features
- Pre-installed with Yokogawa FLXA402 liquid analyzer and sensor flow-through holders to reduce setup time and system complexity
- Available with pH/ORP, conductivity, and optical dissolved oxygen analysis
- Designed for seamless integration into new or existing systems
