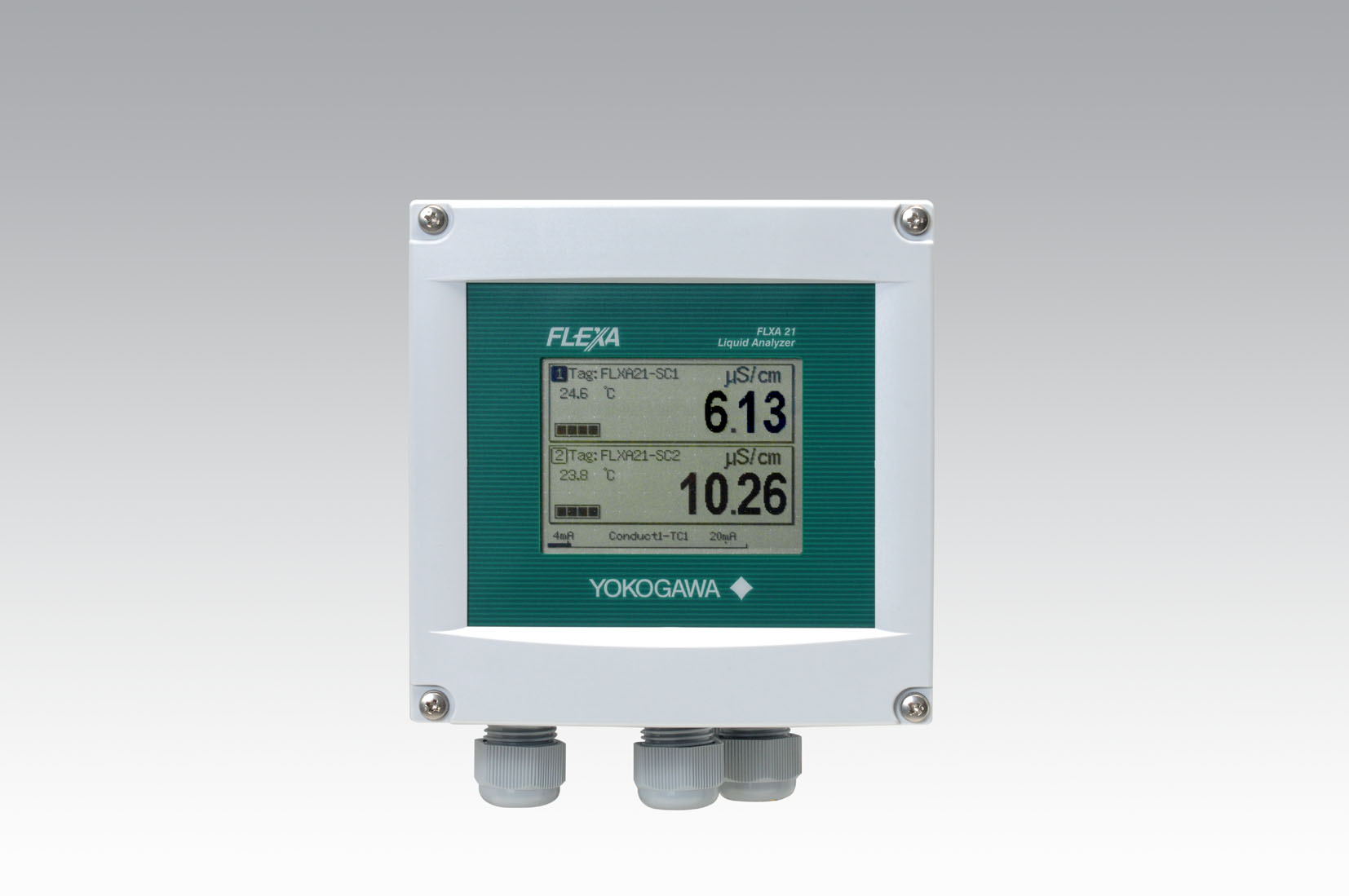

2-Wire Dual Channel Transmitter/Analyzer FLXA21

FLXA21은 2-wire 모듈형 액체 분석기로, pH/ORP 측정기, 전도도 측정기, 유도 전도도 측정기, 용존 산소 측정기에서 최대 두 개의 검출기에 연결할 수 있습니다.

동일한 유형의 두 개의 검출기를 연결하면 고정밀 듀플렉스 시스템으로 더 신뢰할 수 있는 시스템을 구축할 수 있습니다.

그리고 검출기의 임피던스, 비대칭 전위, 기울기 등이 지속적으로 측정되며, 전극의 오염, 손상, 파손, 낮은 측정 액체의 수준 같은 상태를 지속적으로 진단합니다.

이 검출기의 자가 진단 기능은 유지 보수 비용을 줄이고 운영 비용(OPEX)을 개선합니다.

About OpreX

OpreX는 Yokogawa의 산업 자동화(IA) 및 제어 비즈니스를 위한 종합 브랜드로, 관련 기술 및 솔루션의 우수성을 상징합니다. 각 카테고리 아래의 제품군와 패밀리로 구성되어 있습니다. 이 제품은 OpreX Measurement 카테고리에 속하는 OpreX Analyzers 제품군에 속합니다.

Details

Features of FLXA21

두 개의 검출기로 높은 신뢰성과 디지털 통신을 통한 유지보수 및 계측 비용 절감

  • pH/ORP, 전도도 및 용존 산소 검출기는 동일한 유형의 두 개에 연결할 수 있습니다
  • 더 높은 신뢰성 측정을 위한 두 개의 감지기가 있는 백업 시스템
  • 두 가지 다른 지점을 측정하여 설치 비용과 공간 절약을 달성했습니다
  • 두 개의 감지기로 유지보수 중 중단 없이 연속적으로 측정할 수 있습니다
  • HART 커뮤니케이션을 통한 유지보수/계기 비용 절감

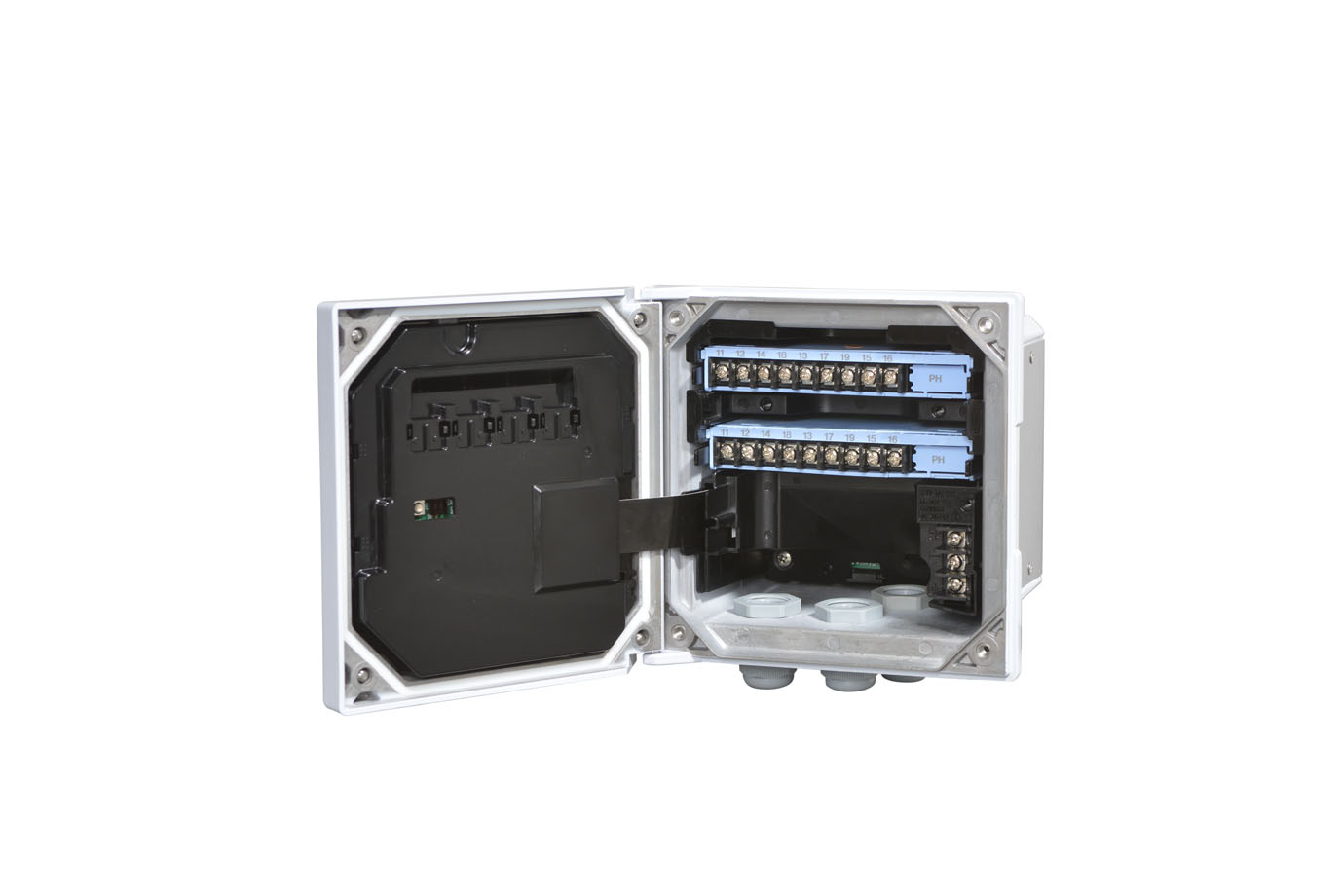

모듈식 구조를 통한 확장성 향상

  • 모듈식 구조를 통한 풍부한 시스템 구축

다양한 고급 기능 탑재

  • 검출기의 자가 진단 기능
    검출기의 임피던스, 비대칭 전위, 기울기 등이 지속적으로 측정됩니다
  • 건강 및 유지보수 시기 예측
    최신 5가지 보정 결과를 저장하고 향후 유지보수 및 보정 시기를 예측합니다
  • 내장된 빠른 설정
    간편한 최소 설정을 위한 화면 지침(가이드)

향상된 조작성과 향상된 조작 화면을 위한 터치스크린

  • 화면과 상호 작용하는 동안 신뢰할 수 있고 친근한 작동
  • 다양한 디스플레이 모드를 사용할 수 있으며, 높은 자유도를 선택할 수 있습니다.

다양한 용도에 적합한 센서

  • 다양한 유형의 pH/ORP, 전도성, 전자기 전도성 및 용존 산소 검출기에 연결할 수 있습니다

12개 언어 중에서 선택 가능

  • 일본어, 영어, 중국어, 한국어, 독일어, 프랑스어, 러시아어, 이탈리아어, 스페인어, 체코어, 폴란드어, 포르투갈어

KOSHA, ATEX 및 기타 다양한 유형의 방폭 기능과 호환됩니다

  • 본질적으로 안전한 유형의 ATEX, IECEx, FM, CSA 및 NEPSI이며 FM 및 CSA를 유발하지 않습니다.

커뮤니케이션 지원

  • HART, Profibus, FieldBus



Common specification

Area Classification General Purpose
Class I Div II (without the use of IS Barrier)
Class I Div I (with the use of IS Barrier)
Enclosure Material Plastic (Polycarbonate)
Housing Rating IP66/ NEMA 4A/ CSA 3S
Power Supply 2-wire 24 VDC Loop Powered
Output Signal Bi-directional HART digital communication, superimposed on mA (4-20 mA) signal
Optional FF (FOUNDATION Fieldbus) and PF (Profibus) communication
Intrinsically safe type ATEX, IECEx, FM, CSA and NEPSI, and nonincendive of FM and CSA.

Features of pH and ORP measurement

온도 보정 기능과 안정성 검사 기능을 갖춘 내장된 보정 표준 테이블은 고정밀 pH 측정을 실현합니다.
pH 측정 외에도 온도와 산화환원 전위(ORP)도 측정할 수 있습니다.검출기의 진단 기능으로 임피던스, 비대칭 전위, 기울기 등을 지속적으로 측정하여 전극의 더러움/손상, 단선, 측정액 수위 저하 등 검출기의 상태를 지속적으로 진단합니다. 또한 최신 5가지 보정 결과를 저장하여 향후 유지보수 및 보정 시기를 예측합니다.

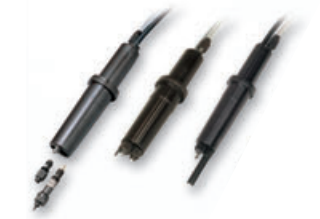

pH sensors for FLXA21

pH and ORP measurement specification

Input Range pH: -2 to 16 pH (with option /K: 0 to 14 pH)
ORP: -1500 to 1500 mV
rH: 0 to 100 rH
Temperature: Pt1000, Pt100, 6.8k, PTC10k, 3k Balco, PTC500: -30 to 140 ºC, NTC 8k55: -10 to 120 ºC
Performance
(The specifications are expressed with simulated inputs.)
pH Linearity: ±0.01 pH, Repeatability: ±0.01 pH, Accuracy: ±0.01 pH
ORP Linearity: ±1 mV, Repeatability: ±1 mV, Accuracy: ±1 mV
Temperature with Pt1000, PTC500, 6.8k, PTC10k, NTC 8k55, 3k Balco
Linearity: ±0.3 ºC, Repeatability: ±0.1 ºC, Accuracy: ±0.3 ºC
with Pt100
Linearity: ±0.4 ºC, Repeatability: ±0.1 ºC, Accuracy: ±0.4 ºC

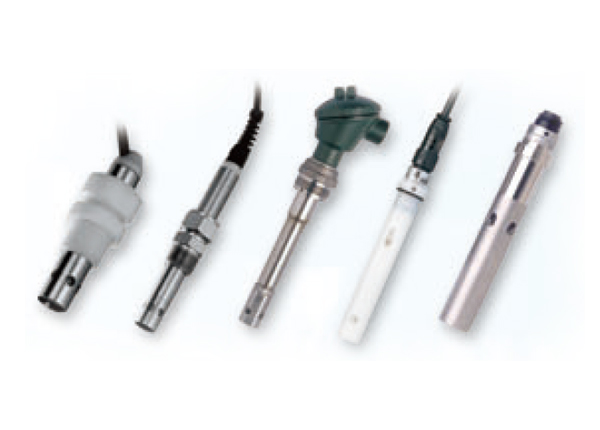

Features of conductivity measurement

내장된 온도 보정 기능과 보정 표준 테이블을 통해 셀의 오염을 모니터링하여 더 높은 정확도의 전도도 측정을 가능하게 합니다.
0.005에서 50 cm-1까지의 매우 다재다능한 셀 상수, 양방향 및 사방향 검출기가 제공됩니다.
또한 정확한 온도 보정을 위해 다섯 가지 유형의 온도 감지기를 지원합니다.
탈염수, 증기, 응축수, 보일러수 분석에서 순수한 물 보상을 수행합니다. 제약 산업의 순수한 물 모니터링을 위해 USP 항목 <645>의 수질 기준에 따라 공정액질을 모니터링할 수 있습니다(USP 23조 645항 참조). 지침(USP 23조 645항 참조).

Conductivity Measurement

Conductivity measurement specification

Input Specification Two or four electrodes measurement with square wave excitation, using max 60m (200ft) cable (WU40/WF10) and cell constants from 0.005 to 50.0 cm-1
Display range Conductivity min. 0.01 µS/cm, max. 2000 mS/cm (max 90% zero suppression)
Resistivity min. 0.001 kΩ x cm, max. 1000 MΩ x cm (max 90% zero suppression)
Temperature min. span 25 ºC, max. span 270 ºC
Performance (Accuracy)
(The specifications are expressed with simulated inputs.)
Conductivity 2 µS x K cm-1 to 200 mS x K cm-1: Accuracy: ±0.5%F.S.
1 µS x K cm-1 to 2 µS x K cm-1: Accuracy: ±1%F.S.
Resistivity 0.005kΩ / K cm-1 to 0.5MΩ /K cm-1: Accuracy: ±0.5%F.S.
0.5MΩ / K cm-1 to 1MΩ /K cm-1: Accuracy: ±1%F.S.
Temperature with Pt1000, Pb36, Ni100:  Accuracy: ±0.3 ºC
with Pt100, NTC 8k55:  Accuracy: ±0.4 ºC
Temperature compensation NaCl table: ±1 %
Matrix: ±3 %
Temperature 90 % (< 2 decades) in 7 seconds

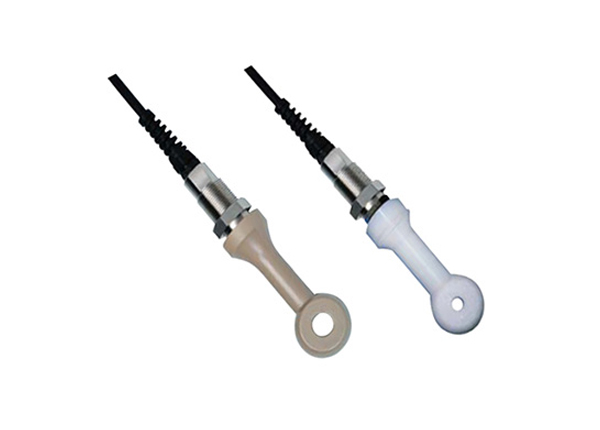

Features of electromagnetic conductivity measurement

전자기 유도 측정 원리에 기반한 비접촉 측정의 경우, 식품 및 화학 산업, 도금 및 표면 처리 산업, 제지 및 펄프 산업 등 화학 산업의 수준 모니터링을 위해 산 및 알칼리 용액부터 염 함유 용액에 이르기까지 다양한 응용 분야에서 전도도 측정에 사용할 수 있습니다. 또한 강산 및 강알칼리 용액을 정확하게 분석하기 위해 매트릭스 보정 및 출력 선형화 기능도 갖추고 있습니다. 하나의 센서만 연결할 수 있습니다.

Electromagnetic Conductivity Measurement

Electromagnetic conductivity measurement specification

Input Specification Compatible with the Yokogawa inductive conductivity ISC40 series with integrated temperature sensor: NTC30k or Pt1000.
Input Range Conductivity 0 to 2000 mS/cm at 25 ºC reference temperature.
Temperature -20 to 140 ºC
Cable length max. 60 meters total length of fixed sensor cable + WF10(J) extension cable.
Influence of cable can be adjusted by doing an AIR CAL with the cable connected to a dry cell.
Performance
(The specifications are expressed with simulated inputs.)
Conductivity Linearity: ±(0.4 %F.S. + 0.3 µS/cm)
Repeatability: ±(0.4 %F.S. + 0.3 µS/cm)
Temperature ±0.3 ºC
Step response 90 % (< 2 decades) in 8 seconds

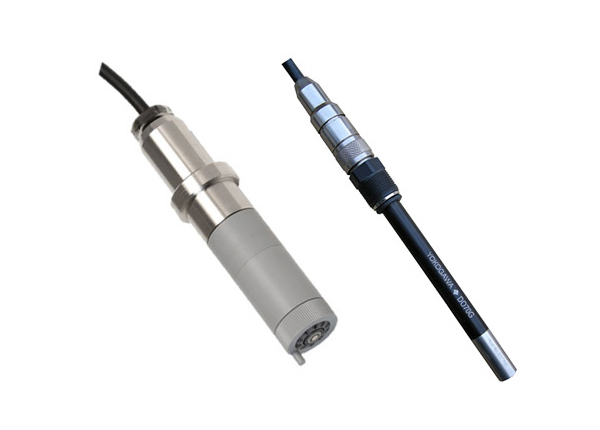

Features of dissolved oxygen measurement

이 공정 분석기는 고기능성, 높은 신뢰성, 유지보수 감소를 달성합니다. 현장 설치에 적합하며 심각한 환경 조건에서도 사용할 수 있습니다.
갈바닉 센서뿐만 아니라 폴라로그래픽 검출기도 사용할 수 있습니다.
용존 산소 농도를 표시하는 단위로는 mg/L, ppm, % 포화 단위가 있습니다. 또한 최고의 측정 정확도를 위해 고도에 따라 달라지는 대기압, 물의 염분, 온도 등의 변화에 대한 보정이 이루어집니다.

Electromagnetic Conductivity Measurement

Dissolved oxygen measurement specification

Input Specification The FLXA202 accepts output from membrane covered Dissolved Oxygen sensors. These sensors can be Galvanic type, where the sensor generates its own driving voltage or Polarographic type, where the sensor uses external driving voltage from the converter.
The input range is 0 to 50 µA for Galvanic sensors and 0 to 1 µA for Polarographic sensors.
For temperature compensation, the FLXA202 accepts Pt1000 (DO30 sensor) and NTC22k elements (OXYFERM and OXYGOLD sensors).
Measurement Range DO Sensors Dissolved Oxygen: 0 to 50 mg/l (ppm)
Temperature: -20 to 150 ºC
DO30G Measurement range: 0 to 20 mg/l (ppm)
Temperature: 0 to 40 ºC
Performance
(Accuracy) (Performance in ppm mode)
Linearity ±0.05 ppm or ±0.8% F.S., whichever is greater
Repeatability ±0.05 ppm or ±0.8% F.S., whichever is greater
Accuracy ±0.05 ppm or ±0.8% F.S., whichever is greater
Temperature Linearity: ±0.3 ºC
Repeatability: ±0.1 ºC
Accuracy: ±0.3 ºC
  • Extension Terminal Junction Box BA10/WTB10

    공장 및 제어실 사이, 특히 장소 사이의 거리가 표준 전극 케이블의 길이보다 큰 경우 연결 장비는 센서 케이블을 측정 장비에 연결하는데 편리한 방법이 될 수 있습니다.
