The EJX118A is a differential pressure transmitter with remote diaphragm seals. Featuring the DPharp Digital Sensor, it offers the performance and device intelligence needed for greater process insight.
Details
What Are the Benefits of Differential Pressure Transmitters?
Routine maintenance is easier with Yokogawa differential pressure transmitters.
Extended Calibration Intervals
Yokogawa EJX-A series pressure transmitters have a long-term stability under all operational conditions. As you gain experience with these transmitters, you will be able to extend the time between calibration checks.
Quicker Maintenance = Less Downtime
Multiple Communication Options
Yokogawa offers several platforms to communicate to your transmitter.
FieldMate is a PC based communication platform that can communicate with your transmitter and manage your entire instrument inventory.
FieldMate HHC is a traditional hand-held platform that allows you to take that information into the field.
Forgot your HHC? No problem. The LPS feature on the transmitter allows you to update 9 parameters without the use of an HHC.
Quicker Maintenance = Less Downtime
How to Reduce Total Cost of Ownership?
Plants run better with Yokogawa differential pressure transmitters. At its heart, Yokogawa's differential pressure transmitter with DPharp digital sensor offers the performance and device intelligence needed to get greater insight into your process.
Digital Performance

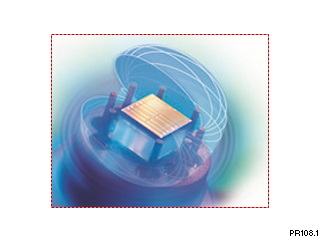

Yokogawa's DPharp digital sensor offers twice the performance and stability of the competitor's analog sensors. The DPharp uses the latest in IC Chip-style design and manufacturing technology. Analog sensors are based on older design technology. Although analog sensors are good, the modern DPharp sensor out performs them. A Yokogawa transmitter with DPharp digital sensor will give you the consistent, reliable, accurate measurement you need.
Poor Performance = Lost Money
Superior Design

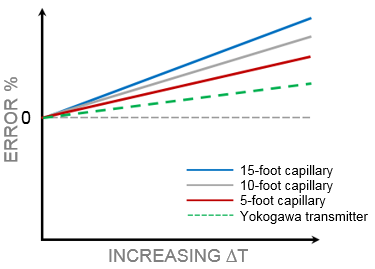

All remote seal system on the market use fill fluid to 'transmit' the process pressure from the remote diaphragm seal to the pressure sensor in the transmitter. The physical properties of the fill fluid change has process temperature and ambient temperature change causing the transmitter to measure inaccurately. This effect get worse the longer the capillaries are. The key is to filter out this 'noise' to get an accurate, consistent, reliable measurement. Yokogawa has a superior design, manufacturing process, and features to reduce this 'noise'.
Signal Characterization
Signal characterization is a versatile function available on all Yokogawa pressure transmitters. The function is used to compensate the analog 4 to 20 mA output signal for non-linear applications. Such applications include tank strapping or flow measurements; but, it can be used in any application where the relationship between the pressure input and the desired output signal are known. This feature can use up to 10-points.
Greater Flexibility = Found Money
How Are Differential Pressure Transmitters Built?

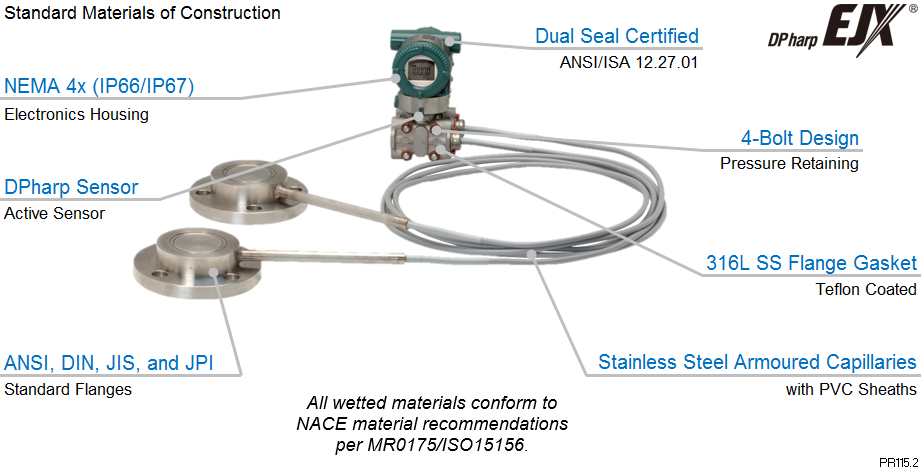

Ruggedly constructed differential pressure transmitter can help your plant reduce failures. Yokogawa's DP transmitters have construction features that are designed to allow it to outlive your plant. Four-bolt pressure retaining design, Active DPharp sensor, and dual seal certified to ANSI/ISA 12.27.01 - all design features to extend the life of the transmitter.
Ruggedness = Reliability
Inherently Safe
All Yokogawa EJX-A series pressure transmitter are designed and certified to IEC61508:2010 Parts 1 through 7 and IEC61511:2004 Parts 1 through 3. They are certified for single transmitter use in SIL 2 rated safety applications and dual transmitter use in SIL 3 rated safety applications with no special option required. With Yokogawa EJX-A transmitters, no longer will you have to maintain two separate inventories - one for production applications and one for safety applications. How much will that save your company? The certificates are available under the "Download" tab above.
Inherently Safe = Reliability

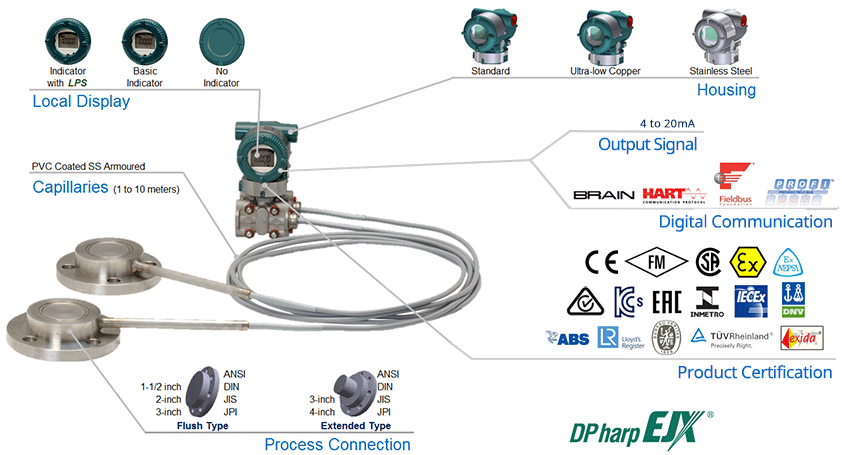

EJX118A Overview
Measurement Types | |
---|---|
Primary Variable | Differential Pressure |
Secondary Variable | Static Pressure |
Reference Accuracy | |
Primary Variable | ±0.15% of Span |
Secondary Variable | ±0.2% of Span |
Response Time | |
Primary Variable | 200 msec |
Secondary Variable | 360 msec |
Rangeability | |
Primary Variable | 50:1 |
WPC003.a
EJX118A Process Connections
Process connection Type | Size | Extension | Flange | ||
---|---|---|---|---|---|
High-Pressure Side | Low-Pressure Side | ||||
Flush Type | Flush Type | 3-inch 2-inch 1-½-inch |
N/A | JIS 10K, 20K, 30K | |
ANSI 100#, 300#, 600# | |||||
JPI Class 150, 300, 600 | |||||
DIN PN10/16, 25/40, 64 | |||||
Extended Type | Extended Type | 4-inch 3-inch |
2-inch 4-inch 6-inch |
JIS 10K, 20K | |
ANSI 150#, 300# | |||||
JPI Class 150, 300 | |||||
DIN PN10/16, 25/40 | |||||
Combination | |||||
Extended Type | Flush Type | Low-Pressure Side: 3-inch High-Pressure Side: 4-inch |
Low-Pressure Side: N/A High-Pressure Side: 2-inch 4-inch 6-inch |
JIS 10K, 20K | |
ANSI 150#, 300# | |||||
JPI Class 150, 300 | |||||
DIN PN10/16, 25/40 |
EJX118 PC.a

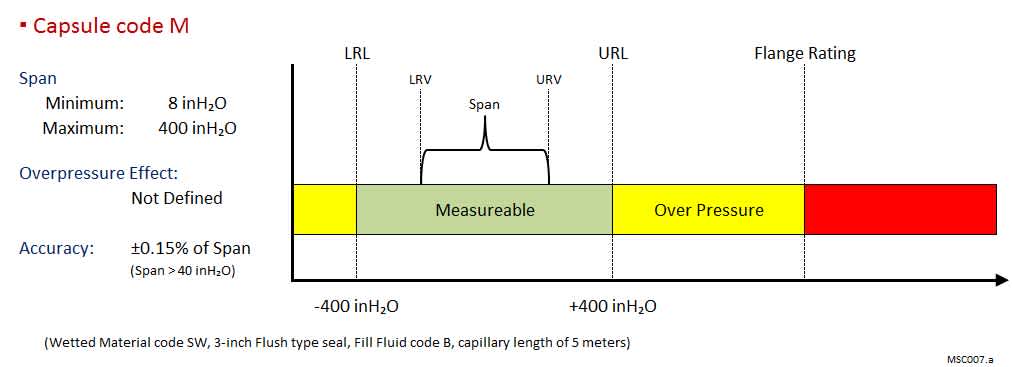

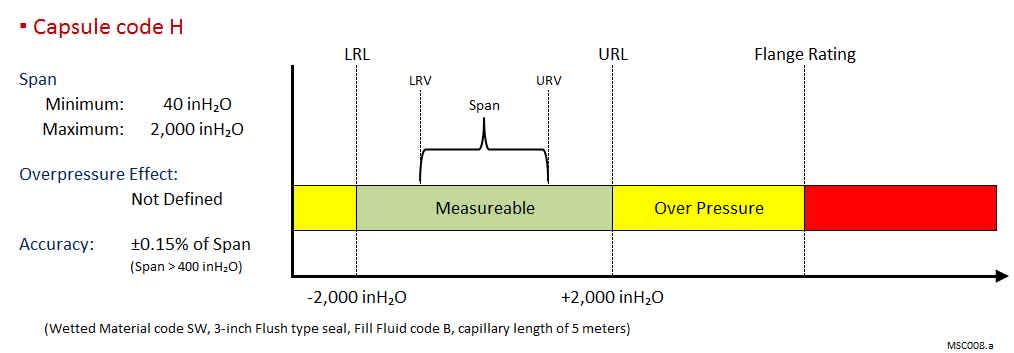

EJX118A Capsules
Graphics not to scale
Flushing Ring
A flushing ring a round device that is place between the diaphragm seal and the process connection. The device has two 1/4-inch ports that can be used to run a flushing solution across the face the seal to clean it. If you need a different size port, Yokogawa also offers Flushing Rings supplied by a global partner WIKA.
Communicators
Yokogawa manufactures a communicator for your needs. Yokogawa communicators are available for BRAIN Protocol, HART Protocol, FOUNDATION Fieldbus, PROFIBUS PA, ISA100, or Modbus. All out communicators are compatible with Yokogawa products as well as other products on the market.
Remote Indicators
Yokogawa offers a range of loop powered and FOUNDATION Fieldbus remote indicators that can be used to locally monitor data from field instruments installed in difficult to access locations.
Resources
Overcome Temperature Challenges. Correct common conditions for better level measurement.
Discover the safety features built-in to the Yokogawa digital pressure sensors (DPharp).
Downloads
Brochures
Instruction Manuals
- EJX and EJA-E Series Differential Pressure and Pressure Transmitters Installation Manual (7.2 MB)
- ManualChange22-17E : DPharp EJX Series and EJA-E Series Differential Pressure and Pressure Transmitters (192 KB)
- Manual Change 22-24E: EJX-A and EJA-E Series Differential Pressure and Pressure Transmitters (186 KB)
- EJX118A, EJX438A, EJA118E, EJA438E Diaphragm Sealed Differential Pressure and Pressure Transmitter (5.1 MB)
- Manual Change No. 21-35E Rev.1 and 23-02E: EJX210A/EJA210E Flange Mounted and EJX118A/EJA118E/EJX438A/EJA438E Diaphragm Sealed (534 KB)
- DPharp Fieldbus Communication Type (3.7 MB)
- DPharp HART 5/7 Communication Type (12.2 MB)
- DPharp BRAIN Communication Type (2.7 MB)
- DPharp PROFIBUS PA Communication Type (6.2 MB)
- EJX/EJA-E series NEPSI Certification[Option code: /NF2, /NF21, /NS21, /NS24 and /NS25] (720 KB)
- EJX/EJA-E Series UKEX Certification [Option code:/BF21,/BS21,/BU21,/BS26 and /BN26] (1.5 MB)
General Specifications
- EJX118A Diaphragm Sealed Differential Pressure Transmitter (2.2 MB)
- EJX118A Diaphragm Sealed Differential Pressure Transmitter (Inner Diaphragm type) (1.9 MB)
- EJX Series HART 5/HART 7 Communication (2.5 MB)
- EJX Series FOUNDATION Fieldbus Communication (1.0 MB)
- EJX Series PROFIBUS PA Communication (1013 KB)
- EJX-A Series and EJA-E Series Explosion Protected Type and Marine Certificate Type (830 KB)
Technical Information
- Functional Safety Manual (730 KB)
- Functional Safety Manual exida Certification (436 KB)
- Diaphragm Seal Fill Fluid Specifications (451 KB)
Certificates
Engineering Tools
- EJX118A Diaphragm Sealed Differential Pressure Transmitter(Transmitter body section) (268 KB)
- EJX118A Diaphragm Sealed Differential Pressure Transmitter(Diaphragm seal section, Flush type, No ring) (257 KB)
- CMPL - EJX-A Series Transmitter Section (261 KB)
- Drawings - EJX118A (Diaphragm Seal Section) (Flush Type with Ring) (212 KB)
- Drawings - EJX118A (Diaphragm Seal Section) (Extended Type) (223 KB)
- EJX118A Diaphragm Sealed Differential Pressure Transmitter(Diaphragm seal section, Combination type) (229 KB)
- 3D CAD Configurator - EJX118A
- CMPL - EJX118A (Pressure-detector Section) (249 KB)
