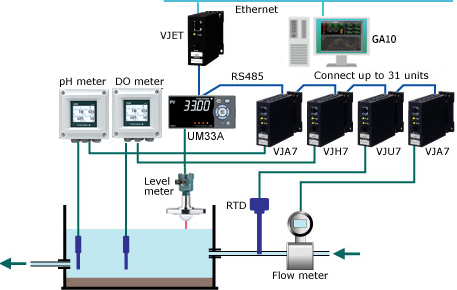

Constructing a Monitoring System Using Existing Sensors

Taking advantage of sensors already available in your system, you can simply add VJ series signal conditioners or the UM33A Digital Indicator with Alarms to easily build a monitoring system on a PC.

  • You can build a low cost network-based monitoring system around your existing facilities by adding the VJET RS485/Ethernet converter, VJ series signal conditioners, the UM33A Digital Indicator with Alarms, and other components.
  • Using the GA10 Data Logging Software, you can easily display trends and other screens on the PC and save the data.


Constructing a Monitoring System Using Existing Sensors

Industries

Related Products & Solutions

Data Logging Software GA10

The latest software that enables you to build a DAQ system without programming. Designed for maximum compatibility with Yokogawa recorders, data loggers, temperature controllers, and power monitors, GA10 can also acquire data via Modbus communications.

JUXTA VJ Series Signal Conditioners

Compact size, plug-in style and microprocessor based high performance capabilities (Multi-function types) makes the VJ Series an excellent choice for almost every application. Analog output, Hi-Low alarm relay outputs or RS-485 MODBUS communication is available as optional second output.

UM33A

The UM33A is a digital indicator with alarms provides up to 9 alarms outputs and input correction function (PV bias, Polygonal line approximation, polygonal line bias). Also, 24 VDC sensor power supply is available as an option.

VJET Ethernet/RS-485 Converter

The VJET Ethernet/RS-485 converter is a compact, plug-in type communication converter that uses the Modbus/TCP for connecting to host devices with Ethernet and uses the Modbus/RTU for connecting to devices with RS-485.

×
