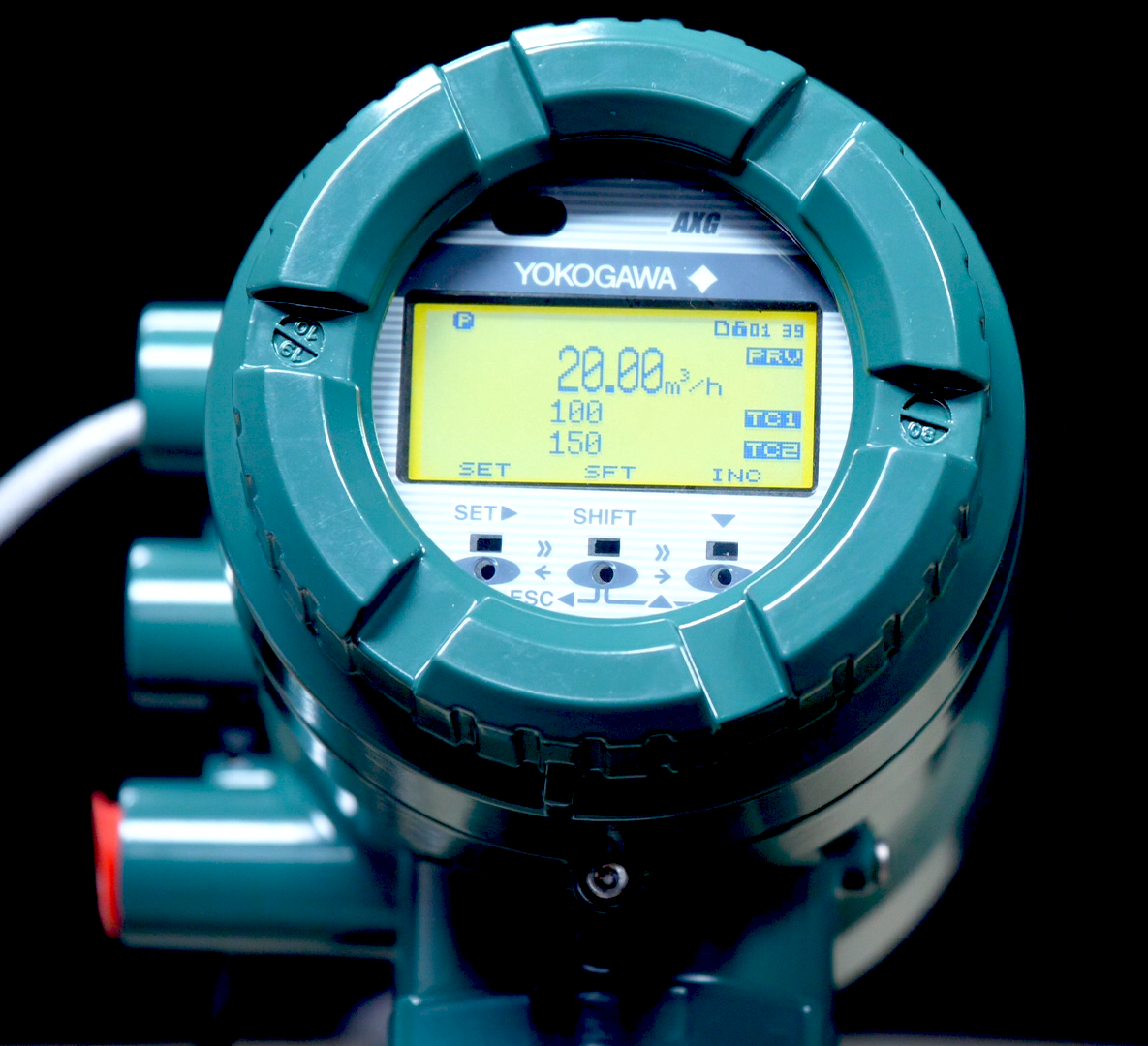

ADMAG TI - AXG Ethernet Flow Meter with EtherNet/IP Connectivity

What are Ethernet Flowmeters?

Migration of process control instrumentation communication to industrial Ethernet is well underway in many industries including power generation and transmission, food and beverage, pharmaceutical, and water/wastewater. Yokogawa is preparing for the expected disruption to legacy Fieldbus communications with the release of our first industrial Ethernet-enabled field instrument, the ADMAG TI AXG flow meter controllers with ethernet interfaces, supporting full-featured, mature EtherNet/IP functionality.

Now with 3A approval and sanitary clamps for the Food and Beverage Industry.

Advantages of Flow Meters with Ethernet/IP (EIP)

EtherNet/IP logo by ODVA Inc.

An advantage of EIP is the capability to handle large amounts of data at speeds of 10 Mbps or 100 Mbps, and up to 1500 bytes per packet. The Ethernet bi-directional digital communication performance makes it possible for the field instruments and control devices to be a complete on-line system, superseding the existing analog and/or Fieldbus transmission lines. Other advantages include:

  • Improved instrumentation flexibility and communication capabilities
  • Seamless integration with process automation systems
  • Quick and easy integration with Rockwell Automation PLCs with advanced Add-on Profiles and Add-on Instructions



Features of Flow Meters with Ethernet/IP

  • Interoperability
    Flow meter Ethernet/IP integration specifications grant interoperability to field instruments without preparing designated software for the instrument.
  • Improved Operation and Electromagnetic Flow Monitoring Function
    An operation authority level setting is available to ensure safety, process data trend display, display backlight flashing (Squawk) function, as well as a data store/restore function with display unit internal memory or microSD card.
  • Fluid Adhesion Level Diagnosis
    Constant monitoring of the level of insulating substance on the electrodes makes it possible to determine when maintenance is required.
  • Stable Measurement
    Yokogawa's dual-frequency excitation method realizes stable flow measurement even under high flow noise in the fluid with highly concentrated slurry.
  • Improved Maintainability
    • Flow meter diagnostic functions installed for preventive maintenance of the plant
    • Diagnosis of the device (verification function) executed without demounting from piping
    • Detection of the process condition by monitoring the flow noise and electric conductivity of the fluid
    • Electrode insulation deterioration diagnosis, electrode adhesion diagnosis, and wiring connection diagnosis available
  • Network Structure
    • Daisy chain - 2 ports are necessary
    • Network ring - 2 ports are necessary (Device Level Ring Support)
    • Network star - only 1 port is necessary; simultaneous use of other port for service or maintenance is possible
  • Web Server
    • Configure and diagnose for maintenance operation

Common Applications

Food & Beverage

Pharmaceutical Environment suited for flow monitoring with EtherNet/IP

Pharmaceutical

Food & Beverage Environment suited for flow monitoring with EtherNet/IP

Resources

Overview:

Brewers recognized that correcting flowmeter inefficiencies in out-of-date technology would help them achieve the increased and consistent throughput they needed.

Industries:
Overview:

The condiment facility staff had success with Yokogawa’s ADMAG TI AXG magnetic flowmeters in other applications. When they learned EtherNet/IP communication was now offered on the ADMAG TI - AXG, they chose to use the Yokogawa magmeter solution on the mustard grinding lines.

Industries:
Overview:

To meet state requirements for calibration checks, use Meter Verification (part of the Total Insight concept of the ADMAG TI - AXG) to verify the calibration and functionality of each meter. The reliable accuracy of the AXG magmeter results from Yokogawa’s proprietary, dual-frequency excitation method. It combines traditional high/low-frequency excitation methods to ensure greater stability and quicker response even if noise or other problems are present in the line. With EtherNet/IP, an operator can initiate a verification from the HMI to ensure the gallery is running optimally.

Overview:

Yokogawa’s latest generation of ADMAG AXG Series is the most suitable magnetic flowmeter with adhesion level diagnosis and dual-frequency excitation method provides stable flow measurement even under high flow noise in the severe applications like the flow of aluminum slurries.

Industries:
Overview:

Flow performance extends cell membrane life with accurate, reliable, and stable performance - saving millions of dollars in membrane repair costs, reducing instrument maintenance costs and production downtime, and production loss.

Industries:
Overview:

Accurate and durable magnetic flow meters (magmeters) were difficult to maintain in the process as the corrosive and abrasive nature of the process degraded their operation. That led to leaks that not only reduced the flow but also contaminated the product and the magmeters. Since Sigura maintained strong vigilance, the company needed to replace some magmeters monthly...

Industries:
Overview:

Yokogawa’s ADMAG TI - AXG magnetic flowmeter (magmeter) with EtherNet/IP is used to measure the water moving from the pump to the snow cannons. The accurate measurement allows the operator to monitor and control the water in the mixture to produce artificial snow with the perfect consistency.

Overview:

Questionable flow and conductivity measurements during CIP could raise questions about food quality and safety.

Industries:
Overview:

This introduces a system that uses Ethernet communications to acquire measured values, target values, and control output values from a controller installed on site into a PLC at high speed (ten units' worth within one second).

Overview:

Controls temperature in, and acquires data from, various internal components of plastic film manufacturing equipment. An easy to use, high cost-performance data acquisition and monitoring system can be assembled by using Ethernet compatible instruments and GA10.

Overview:

With advances in process automation comes a greater need for level measurement and control. As pressure on at the bottom surface of a liquid is proportional to the height of the liquid's surface, you can measure pressure using a differential pressure transmitter to detect the level of the liquid, acquire the data on the UT75A Digital Indicating Controller, and use the measurements to control the tank level.

Industries:
Overview:

Taking advantage of sensors already available in your system, you can simply add VJ series signal conditioners or the UM33A Digital Indicator with Alarms to easily build a monitoring system on a PC.

Overview:

Power monitoring package SMARTDAC+ GM and UPM100 system measures and quantifies the electrical energy consumption for each assembly line.

Industries:
Overview:

A mineral processing company began a project to replace an aging SCADA system that monitors remote process flow data. The existing system is a large, multi-node installation based on standalone RTUs with radio communications to a central processor. Distance between locations is measured in miles.

Overview:

Read this eBook to learn how to best leverage the latest measurement instrumentation to avoid incidents and improve productivity. You will also find valuable information about overcoming common CIP challenges and stories of success.

Industries:
ADMAG TI autozero or zero adjustment is carried out to ensure that the output for zero flow is 0% (i.e., 4 mA). Although adjustment to zero is performed at the manufacturing plant prior to shipment, this procedure must be carried out once again follo...
Edition 1
Overview:

ADMAG TI autozero or zero adjustment is carried out to ensure that the output for zero flow is 0% (i.e., 4 mA). Although adjustment to zero is performed at the manufacturing plant prior to shipment, this procedure must be carried out once again following the installation of piping in order to match the magnetic flowmeter to its operating conditions.

They help remove stray energy or noise as it builds up in the flow process by grounding it. They can even help protect the magmeter liner from damage in harsher processes.
Edition 1
Overview:

They help remove stray energy or noise as it builds up in the flow process by grounding it. They can even help protect the magmeter liner from damage in harsher processes.

Downloads

Videos

Overview:

This video shows steps to bring the Studio 5000 Data Points into the FactoryTalk View Studio. The Yokogawa Magnetic Flow Meter ADMAG IT - AXG with EtherNet/IP is shown as an example.

Overview:

This video covers the navigation and basic structure of the Yokogawa Magnetic Flow Meter ADMAG TI - AXG with EtherNet/IP webserver.

>  Video: How to Connect to Webserver

Overview:

This video explains how to open .eds files in Studio 5000. The Yokogawa Magnetic Flow Meter ADMAG TI - AXG with EtherNet/IP is used as an example.

Overview:

This video describes the process of connecting the Yokogawa Magnetic Flow Meter ADMAG TI - AXG with EtherNet/IP to a webserver

Overview:

What about other instrumentation pain-points in the blow tank, washing, or bleaching process?

Overview:

In the digester process, high temperature and pressure, along with the slurry pulp, can cause extreme damage to traditional meters.
