Yokogawa’s new TDLS8000 houses all of the industry’s leading features in one robust device. The platform design is for in situ measurements that eliminate the need for sample extraction and conditioning. The non-contacting sensor allows for a variety of process types including corrosive, abrasive, and condensing.
The first generation platform has been proven in many others for the measurements of O2, CO, CH4, NH3, H2O and many more NIR absorbing gases. This second generation platform has improved reliability and ease of installation and maintenance while still meeting or exceeding designed application demands.
The most trusted laser analyzer designed specifically to meet all of your requirements in one robust device that is easy to operate and maintain.
- SIL2 TruePeak combined with smart laser Technology
- Intuitive touchscreen HMI
- HART and Modbus TCP communications standard
- 8-stage auto-gain adapts to difficult applications
- Fully field repairable with 50 days of data and spectra storage
- Compact design for one-man installation without sacrificing ruggedness
- Area classification Zone2/Div2 or Zone1/Div1
Standard System Configuration
HART communication available
System Configuration with HMI
Multi Analyzer Configuration with Remote HMI
Up to 4 units connection available
Internal reference cell in the laser module ensures peak locking during trace measurement.
Auto-gain enables wide signal ranges against dynamic variation of transmission.
Validation can be initiated manually, remotely, or automatically on a daily, weekly or monthly basis defined by the user.
IEC61508 SIL designed & approved, SIL2 capability for single analyzer use, SIL3 capability for dual analyzer use.
The TruePeak we can measure the area of the absorbance peak. This eliminates effects from changing background gases, allowing for simple pressure and temperature compensation.
Intuitive touchscreen HMI
Touch screen 7.5 inch color LCD on HMI
- Makes it simple to operate
- Gives all the information including trend graph and eliminate PC to maintenance
- Can be remotely installed

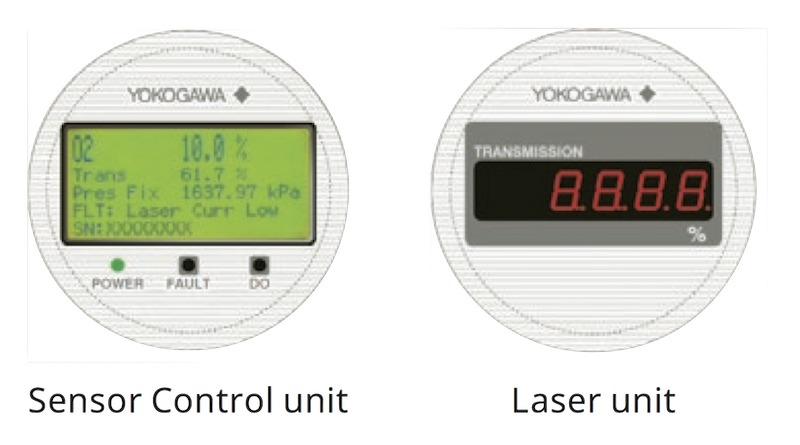

Optical transmission at both the ends for easy alignment
|Measurement object||O2, CO, CO or CH4, CO2, CO + CO2, H2O, NH3, NH3 + H2O, H2S, HCl concentration in combustion exhaust gas and process gas|
|Measurement system||Tunable diode laser spectroscopy|
|Measured components and range||Measured component||Min. range||Max. range|
|CO(ppm)||0-200 ppm||0-10,000 ppm|
|CO+CH4||CO||0-200 ppm||0-10,000 ppm|
|NH3||0-30 ppm||0-50,000 ppm|
|H2O (ppm) in non HC||0-30 ppm||0-30,000 ppm|
|H2O (ppm) in HC||0-30 ppm||0-30,000 ppm|
|CO (%)||0-20 %||0-50 %|
|CO (%) + CO2 (%)||0-30 %||0-100 %|
|NH3 + H2O||NH3||0-30 ppm||0-5,000 ppm|
|H2O||0-5 %||0-50 %|
|H2S||0-5 %||0-100 %|
|CO2 (%) High Range||0-1 %||0-5 %|
|CO2 (%) Extend.Range||0-30 %||0-50 %|
|H2O (%)||0-10 %||0-100 %|
|HCl||0-50 ppm||0-5,000 ppm|
|Output path length||Optical distance between the laser unit and the sensor control unit Standard; 0.5 to 6 m, Max; 30 m|
|Output signal||2 points, 4 to 20 mA DC
Output types; Gas concentration, Transmission, Process gas temperature, Process gas pressure
Output range; 3.0 to 21.6 mA DC
|Digital communication||HART, Ethernet|
|Contact outputs||2 points, contact rating 24 V DC, 1 A
Function: Activate during Warning / Calibration / Validation / Warm up / Maintenance conditions
Function: Activate during normal condition, not activate during fault condition or when the system power is off
|Valve control output||2 points
Function; Activate calibration or validation solenoid valves for zero, span or validation gas
Output signal; 24 V DC, 500 mA Max. per terminal
Gas concentration low/high, Transmission low, Process pressure low/high, Process temperature low/high, Validation required, Validation failure, Zero/Span calibration error, Non process alarm, External alarm
Laser module temperature low/high, Laser temperature low/high, Detector signal high, Peak center out of range, Reference peak height low, Absorption too high, Transmission lost, Reference transmission low, Reference peak height high, Laser unit failure, Laser module error, File access error, E2PROM access error.
External alarm/Calibration start/Validation start/Stream switch
Zero voltage contact input
Input signal; Open signal;
100 kΩ or more, Close signal; 200 Ω or less
|2 points, 4 to 24 mA DC
Input types; Process gas temperature, Process gas pressure
|Self-diagnostics||Laser Unit temperature, Sensor Control Unit temperature, Laser temperature, Detector signal level, Memory read/write function, Peak locking condition|
|Calibration||Calibration method; Zero/Span calibration
Calibration mode; Manual, Auto, Local initiate (HMI)
|Validation||Validation method; Up to 2 points
Validation mode; Manual, Auto, Local initiate (HMI)
|Power supply||24 V DC ±10%|
|Warm-up time||5 min.|
|Protection degree||IP66, NEMA Type 4X|
|Hazardous area classifications||Division 1, Zone 1; Explosion-proof/ Flame-proof type; FM, cFM, ATEX, IECEx (Pending)
Division 2, Zone 2; Non-Incendive/Type n; FM, cFM, ATEX, IECEx
|Process gas condition||Process gas temperature; Maximum 1500℃
Process gas pressure; Max. 1 MPa, Min. 90 kPa
Dust in process gas; 20 g/m3 or less
|Installation condition||Ambient operating temperature; -20 to 55℃
Storage temperature; -30 to 70℃
Humidity; 0 to 95%RH at 40℃ (Non-condensing)
Mounting flange type; ASME B 16.5, DIN, JIS
Gas connections; 1/4 NPT or Rc1/4
Recommended purge gasses
O2 analyzer; N2 (99.99% or greater, application dependent)
H2O ppm analyzer; N2 (99.99% or greater with < 20 ppm H2O for feed to the optional dryer package)
CO, CO or CH4, CO2, CO+CO2, NH3, NH3+H2O, H2S, HCl;
N2 (99.99% or greater, application dependent) or Instrument air CO, NH3 analyzer: N2 (99.99% or greater, application dependent) or Instrument air
Purge gas flow rates;
5-20 L/min for optic
5-30 L/min for process window
Purge gas connections;
1/4NPT (-G1, -C2, -D2, -C2, -D1, -C1),
Rc1/4 (-G2, -S2, -E2, -J2, -E1, -J1)
|O2||± 1% reading or ± 0.01% O2, whichever is greater||± 1% F.S.|
|CO (ppm)||± 2% reading or ± 1 ppm CO, whichever is greater||± 1% F.S.|
|CO + CH4||CO||± 1% reading or ± 1 ppm CO, whichever is greater||± 2% F.S.|
|CH4||± 4% reading or ± 0.02% CH4, whichever is greater||± 4% F.S.|
|NH3||± 2% reading or ± 1 ppm NH3, whichever is greater||± 2% F.S.|
|H2O (ppm) in non
|± 2% reading or ± 0.1 ppm H2O, whichever is greater||± 1% F.S.|
|H2O (ppm) in HC||± 2% reading or ± 0.1 ppm H2O, whichever is greater||± 1% F.S.|
|CO (%)||± 1% reading or ± 0.01% CO, whichever is greater||± 1% F.S.|
|CO (%) + CO2 (%)||CO||± 1% reading or ± 0.1% CO, whichever is greater||± 1% F.S.|
|CO2||± 1% reading or ± 0.1% CO2, whichever is greater||± 1% F.S.|
|NH3 + H2O||NH3||± 2% reading or ± 1 ppm NH3, whichever is greater||± 2% F.S.|
|H2O||± 4% reading or ± 0.05% H2O, whichever is greater||± 2% F.S.|
|H2S||± 1% reading or ± 0.005% H2S, whichever is greater||± 1% F.S.|
|CO2 (%) High Range||± 1% reading or ± 0.005% CO2, whichever is greater||± 1% F.S.|
|CO2 (%) Extend. Range||± 1% reading or ± 0.02% CO2, whichever is greater||± 1% F.S.|
|H2O (%)||± 1% reading or ± 0.004% H2O, whichever is greater||± 1% F.S.|
|HCL||± 1% reading or ± 2.5 ppm H2O, whichever is greater||± 2% F.S.|
YH8000 HMI Unit
The YH8000 is a HMI designed specifically for the Tunable Diode Laser Gas Analyzer, the TDLS8000.
- Touchscreen 7.5 inch color LCD on HMI
- Makes it simple to operate
- Can be remotely installed
- Up to 4 units connection available
|Display||Touchscreen 7.5 inch TFT color LCD panel, 640 x 480 (VGA)|
|Communication||Ethernet; RJ-45 connector, Communication speed; 100 Mbps|
|IP65, NEMA Type 4X|
|Mounting||Analyzer mount (Front, left-side, right-side) with tilt function, Pipe mount or Panel mount|
|Cable Entries||1/2NPT or M20 x 2|
|Ambient operating temperature; -20 to 55℃
Storage temperature: -30 to 70℃
Humidity: 10 to 90%RH at 40℃ (Noncondensing)
|Power Supply||24 V DC ±10%|
|Division 2, Zone2: Non-Incendive/Type n; FM, cFM, ATEX, IECEx|
The simple and robust TDLS8000 assures the reliable and less maintenance operation of the analysis.
