The EJA130E is a differential pressure transmitter designed to work in a high static pressure environment, measuring information accurately, transmitting it quickly, and doing it reliably over time.
Details
What Are the Benefits of Pressure Transmitters?
Routine maintenance is easier with Yokogawa pressure transmitters. Efficient and effective maintenance through extended calibration intervals and simple trouble shooting.
Extended Calibration Intervals
Reduce maintenance cost by 33%.
Improved long-term stability extends calibration intervals. Spend your time where it is needed.
Quicker = Less Downtime
Multiple Communication Options
FieldMate PC based communication platform allows management of your entire instrument inventory.
FieldMate HHC allows you to take that information into the field.
LPS can update 9 parameters in the field without the use of an HHC.
Save time, Save money
Simple Troubleshooting
Local intuitive display with simple error messaging.
NE107 compliant alarms in FieldMate make troubleshooting easy.
Save time, Save money
Universal Mounting
Reduce stock by 50%.
Consolidate inventory of different flange configurations. Yokogawa transmitters are available with flanges using flexible vent and drain locations to met any installation need.
High Inventory = Stagnant Money
Safety as Standard
No need to stock separate inventory for safety and non-safety applications. With safety as a standard, Yokogawa transmitters can be used for either application.
Reduce stock.
Standard Protocols
No training required.
Yokogawa transmitters support all industry standard field device protocols. Interoperability and interchangeability can be ensured. Use the same tools and work procedures as before.
No Learning Curve = Smooth Change Over
Standard Industry Connections
Process connections designed to meet IEC61518 ensure you will not meet proprietary manifolds or accessories that limit your design choices.
How to Reduce Total Cost of Ownership?
Plants run better with Yokogawa pressure transmitters. At its heart, Yokogawa's Differential Pressure Transmitter with DPharp digital sensor offers the performance and device intelligence needed to get greater insight into your process.
Digital Performance
Installed performance 2x better using all digital DPharp pressure sensor.
Yokogawa’s digital sensor provides superior performance and stability compared to analog sensors.
Poor Performance = Lost Money
More Information
Save up to 20% on CAPEX spending using our transmitter’s multi-sensing capability.
Using digital communication, one EJA130E can supply your control system with Level (Primary variable), Blanket Pressure (Secondary variable), and Sensor Temperature (Third variable)—eliminating the need for multiple transmitters.
More Information = Found Money
Standard Diagnostics
Reduce unscheduled maintenance by 60%.
Over 40 diagnostics to ensure everything is OK. Active Sensor Technology monitors the DPharp sensor while the Back-check Technology is reverse checking all calculations in real-time.
Good Diagnostics = Less Surprises
How Do Differential Pressure Meters Work?
Yokogawa pressure transmitters help plants run longer.Yokogawa's DPharp active sensor, patented back check diagnostics, and rugged construction allow users to run their plants safer and with less downtime.
Rugged Construction
Reduce failures in the field by 200%.
Yokogawa transmitters are designed to out live your plant.
Ruggedness = Reliability
Over-pressure Protection
Reduce failures and calibrations.
Yokogawa DPharp pressure transmitters have an integral over-pressure mechanism to protect your transmitters from process surges or improperly sequenced manifolds.
Proven in Use
Over 6 million DPharp transmitters are installed worldwide.
Less Downtime = Making Product
Reliability Guaranteed
Reliability verified independently by third party industry experts.
Inherently Safe
Save up to 10% on CAPEX spending.

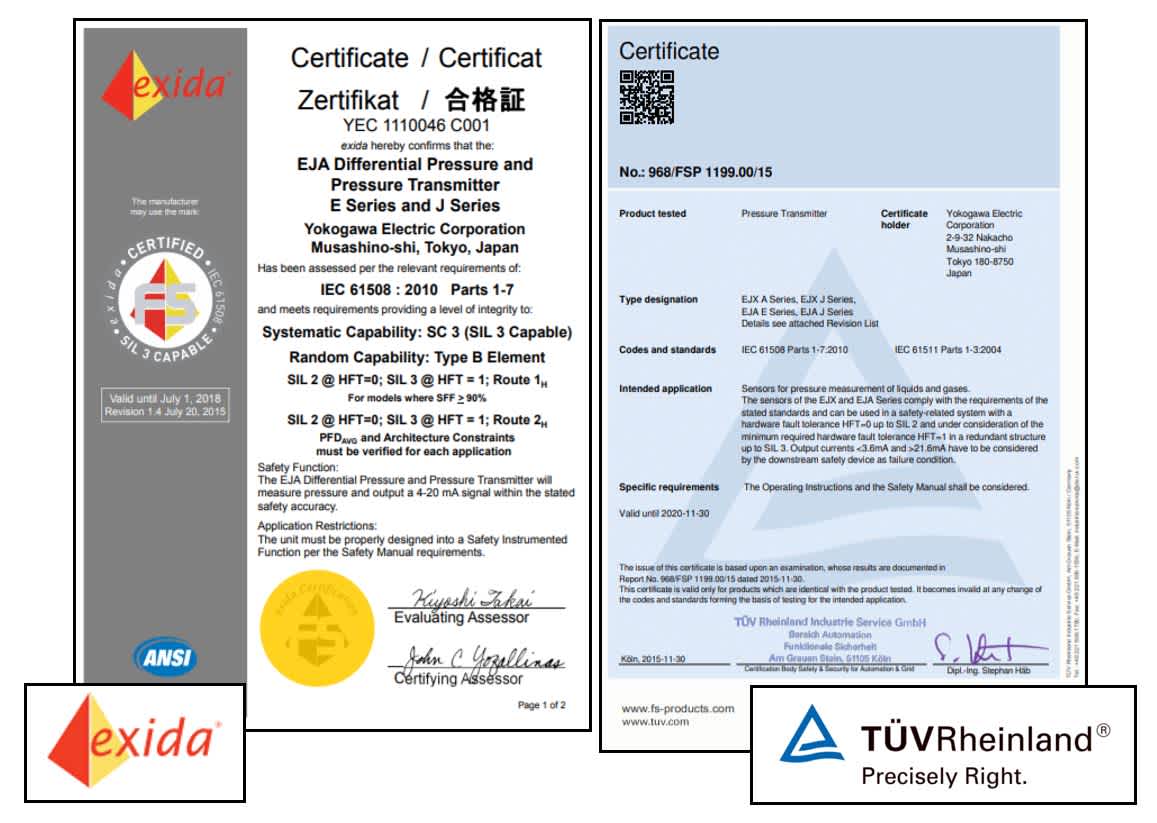

All Yokogawa pressure transmitters are certified to meet IEC61508 for single use in SIL 2 applications or dual use in SIL 3 applications as a standard. No special option needed! To Yokogawa, safety should never be an option.
Inerently Safe = Reliability
Active Sensor Technology
Unlike other sensor technologies, the active DPharp sensor constantly produces a signal even if there is no change in the process. This signal is continually monitored by the CPU.
EJX130E Overview
Measurement Types | |
---|---|
Primary Variable | Differential Pressure (DP) |
Secondary Variable | Static Pressure (SP) |
Reference Accuracy | |
Primary Variable | ±0.055% of DP Span |
Secondary Variable | ±0.5% of SP Span |
Long Term Stability (All Normal Operating Conditions) | |
Primary Variable | ±0.1% of URL per 10 years |
Maximum Pressure Limit (MWP) | |
All Capsules | 4,500 psi |
Over-pressure Effect | |
Primary Variable | ±0.03% of URL |
Rangeability | |
Primary Variable | 100:1 |
Burst Pressure | |
All Capsules | 19,100 psi (132 MPa) |
Specification Conformance | |
EJX-A Series | ±3σ |
EJX130A Capsules
Graphics not to scale
Manifolds
For Differential pressure transmitters, Yokogawa offers a complete line of 61518 IEC compliant 3-valve and 5-valve manifolds. Available in T-Style, H-Style, Wafer-Style, and Bottom Process Connection Style, they can be ASME B31.1 (Power) Compliant, ISA 15848 Compliant, or TA-Luft Compliant.
Communicators
Yokogawa manufactures a communicator for your needs. Yokogawa communicators are available for BRAIN Protocol, HART Protocol, FOUNDATION Fieldbus, PROFIBUS PA, ISA100, or MODBUS. All our communicators are compatible with Yokogawa products as well as other products on the market.
Indicators
Yokogawa offers a range of loop powered and FOUNDATION Fieldbus remote indicators that can be used to locally monitor data from field instruments installed in difficult to access locations.
Pressure Calibrators
The Yokogawa CA700 Portable Pressure Calibrator uses the same DPharp sensor technology as our EJA-E and EJX-A series pressure transmitters. It provides an accurate and efficient calibration and verification tool for any pressure transmitter or other type of field device.
Communication Converters
Yokogawa offers communication converters by Moore Industries to convert secondary HART protocol variables to a 4 to 20 mA analog signal or all the HART variables to MODBUS RTU.
Resources
Download this eBook and learn:
- The basic physics of pressure
- Different types of pressure sensors
- Features of pressure transmitters
- Pressure transmitters communications standards
- Key characteristics of pressure
- Common types of diaphragm seals
Overcome Temperature Challenges. Correct common conditions for better level measurement.
Discover the safety features built-in to the Yokogawa digital pressure sensors (DPharp).
Yokogawa's cost-effective and user-friendly, differential pressure volumetric flow measurement with accuracy ranging from 0.5% to 1.5%, ensures efficient process control at a competitive price compared to other flow technologies.
Downloads
Instruction Manuals
- EJX and EJA-E Series Differential Pressure and Pressure Transmitters Installation Manual (7.2 MB)
- ManualChange22-17E : DPharp EJX Series and EJA-E Series Differential Pressure and Pressure Transmitters (192 KB)
- Differential Pressure and Pressure Transmitter (6.3 MB)
- Manual Change 22-24E: EJX-A and EJA-E Series Differential Pressure and Pressure Transmitters (186 KB)
- DPharp Fieldbus Communication Type (3.7 MB)
- DPharp HART 5/7 Communication Type (12.2 MB)
- DPharp BRAIN Communication Type (2.7 MB)
- DPharp PROFIBUS PA Communication Type (6.2 MB)
- EJX/EJA-E series NEPSI Certification[Option code: /NF2, /NF21, /NS21, /NS24 and /NS25] (720 KB)
- EJX/EJA-E Series UKEX Certification [Option code:/BF21,/BS21,/BU21,/BS26 and /BN26] (1.5 MB)
General Specifications
Technical Information
- Functional Safety Manual (730 KB)
- Functional Safety Manual for /SLT (2.6 MB)
- Functional Safety Manual exida Certification (436 KB)
Certificates
Engineering Tools
- CMPL - DPharp EJA-E Series (Transmitter Section) (237 KB)
- EJA130E Differential Pressure Transmitter Bolts and Nuts Material Code: J, G, C (501 KB)
- EJA130E Differential Pressure Transmitter Bolts and Nuts Material Code: K, H (457 KB)
- Drawings - EJA130E (Universal Flange) (461 KB)
- EJA110E, EJA120E, EJA130E with Option Code /N1 (614 KB)
- EJA110E, EJA120E, EJA130E with Option Code /N2 and /N3 (615 KB)
- /U1 Long Vent Plug (254 KB)
- 3D CAD Configurator - EJA130E
- CMPL - EJA110E (Pressure Section) (375 KB)
Videos
